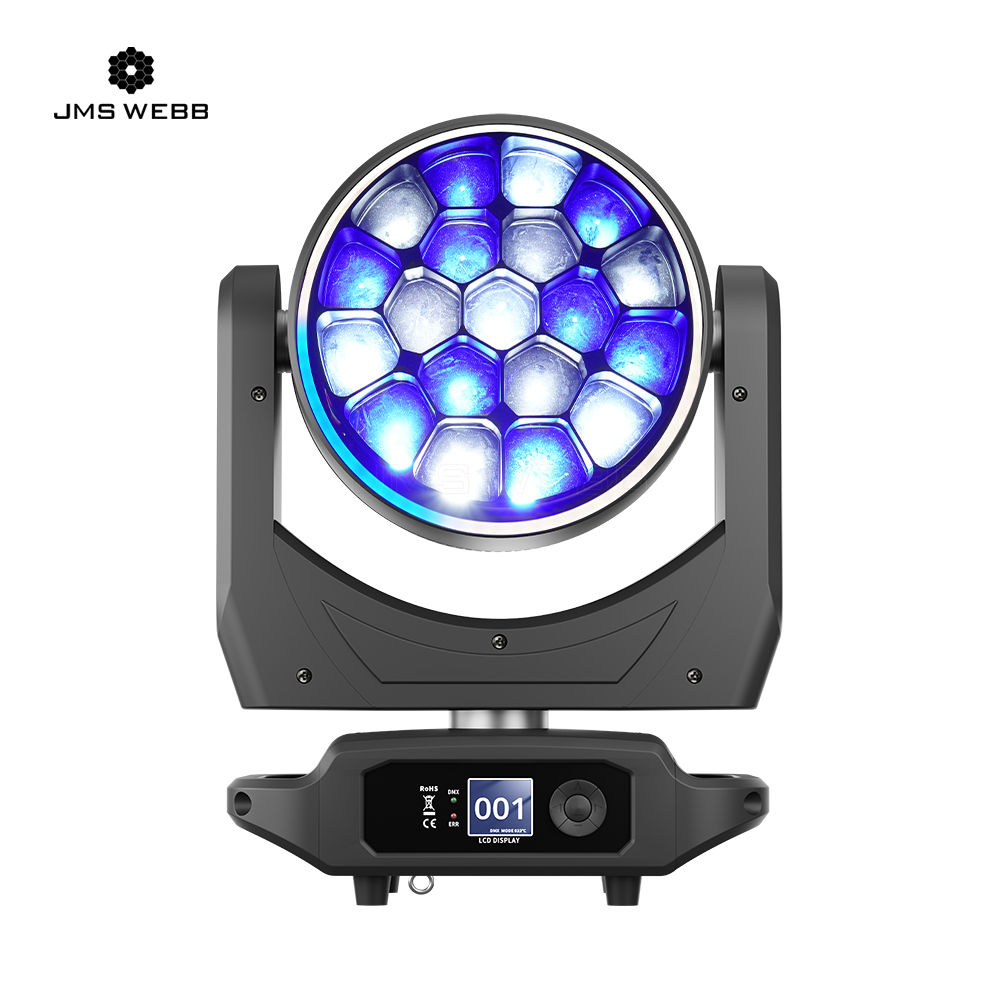

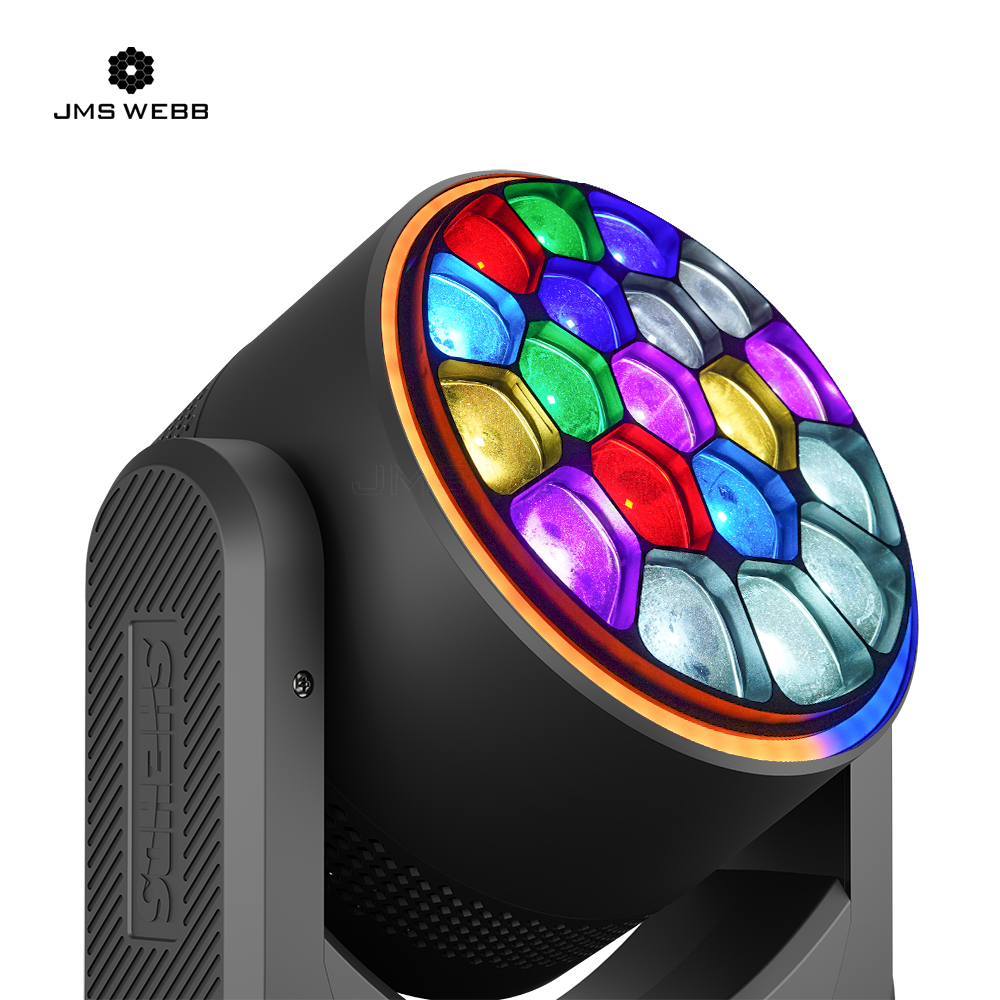

LED Zoom&Beam&Wash Bees Eyes
19x40W RGBW 4in1 Light - Ring Effect
The light source consists of 19x40W RGBW four color LEDs,
Create a uniform color mixing system and rainbow effect, The beam mode is full of sharpness,
and the excellent light output creates a strong visual impact for the performance.
Product Features
Multiple channel modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Technical Parameter
| -Electrical Specification and Connections |
| Power Supply: |
640W Electronic Auto-Ranging |
| Input Voltage Range: |
100-240 V, 50/60 Hz |
| Power in Connector: |
Neutrik PowerCON |
| Signal input/output: |
3-pin XLR Head Socket |
| -Source |
| Light Source Type: |
LED 19x40W RGBW 4in1 Color Mixing |
| Colour Temperature output: |
Linear CTO 2800-8500K |
| LED Life Expectancy: |
50000 Hours |
| -Optical System |
| Zoom: |
3x Efficient Zoom Optical System |
| Moving Head Range: |
Pan:450°, Tilt：270°, and 16 Bit |
| Zoom Angle: |
4~45 Degrees |
| Dimmer: |
0~100% Linear Dimming |
| Lens Diameter: |
250 mm |
| -Control and Programming |
| Protocols: |
DMX512，RDM |
| DMX Channel Mode： |
31CH /33CH /109CH |
| Display: |
1.8 inch TFT Color LCD Display Screen, 180 Degree Rotatable |
| Feature： |
Auto Mode ,Sound Mode,Manual Programming Scenarios |
| -Mechanical Specification |
| Housing : |
High Temperature Resistant and Flame Retardant Plastic Housing |
| Heat Dissipation method: |
Overheat Protection, Efficient Heat Dissipation System |

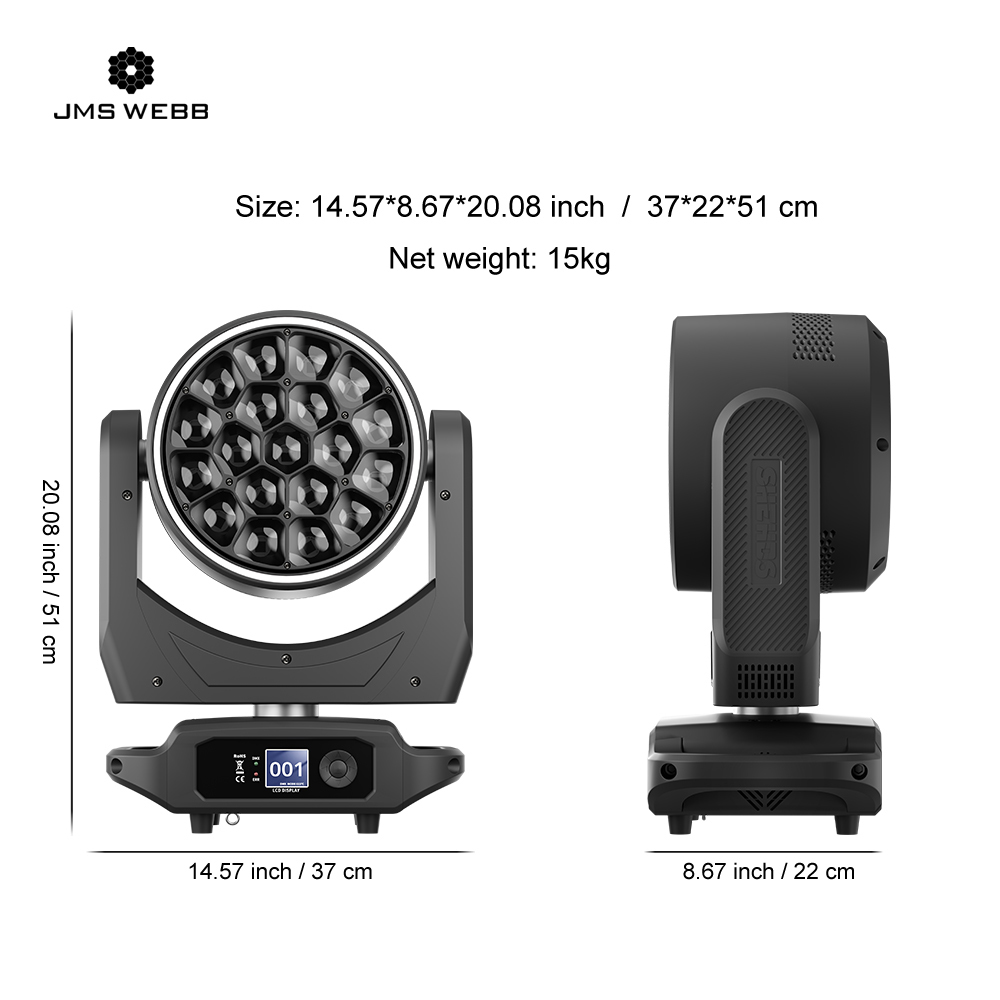

| Product Zize： |
14.57*8.67*20.08 inch / 37*22*51 cm |
| Product Weight: |
15 kg |
| Package Size: |
20.87*16.54*20.08 inch / 53*42*51 cm |
| Package Weight: |
19 kg |
| Operating Temperature: |
-20~60℃ |
| Ingress Protection Rating: |
IP20 |

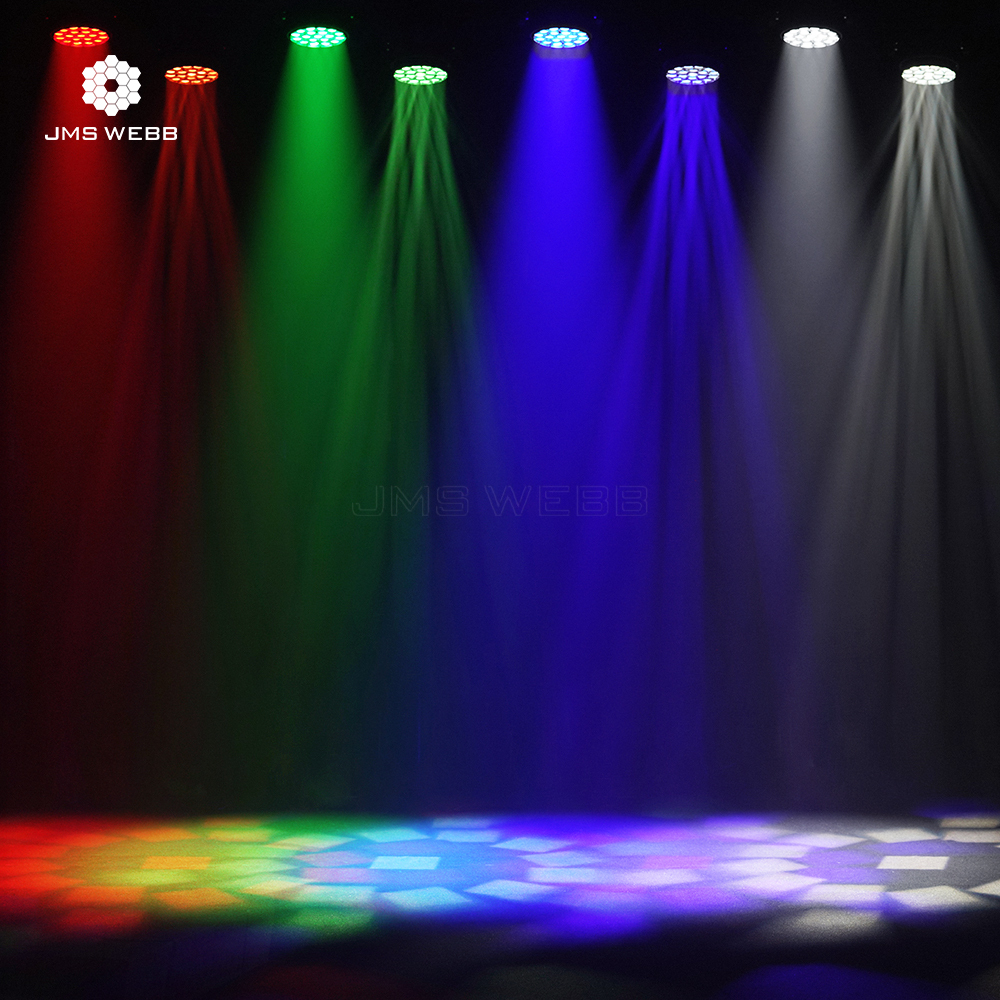

Beam Angle
4° beam angle - 45°wash angle
Optical Lens Display
Clockwise and counterclockwise 360°rotation
Integrating Powerful Beam
And Wash Functions
A linear focusing system with a beam angle of 4~45 °, multiple speed strobe effects,
and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects, fully adapting to different stage application needs.
Zoom Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
Multiple Effects
31CH / 33CH / 109CH channel mode available,
Built-in multiple static, dynamic, and customizable lighting effects,
allowing for easy adjustment of lighting effects
Light Source
Smart LED Light Particles
-5mm Thick pure copper load panel -
- RGBW MIX COLOR -

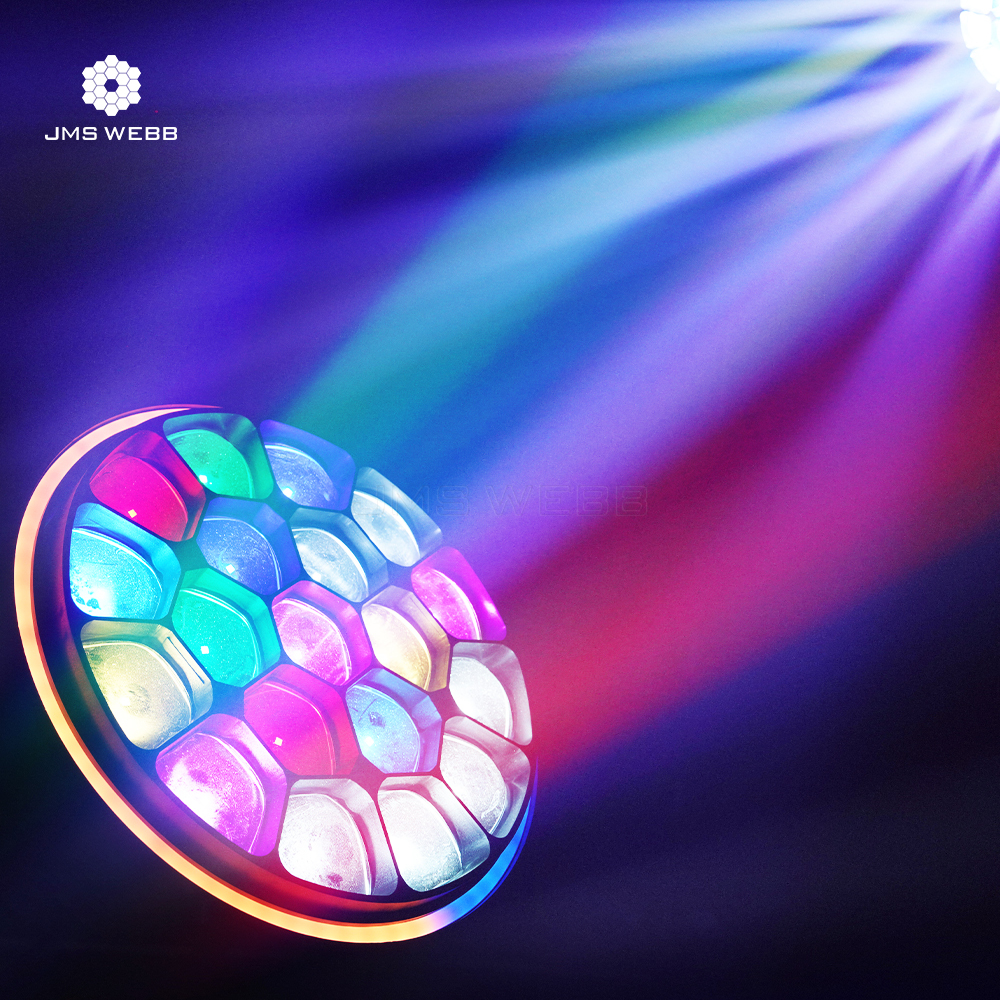

The RGB Ring Effects
Upgraded light guide carrier, more natural and sci-fi lighting effect,
DMX512 channel controllable built-in multiple operating effects,
freely adjustable RGB color mixing effect,
color at will, and effect at will

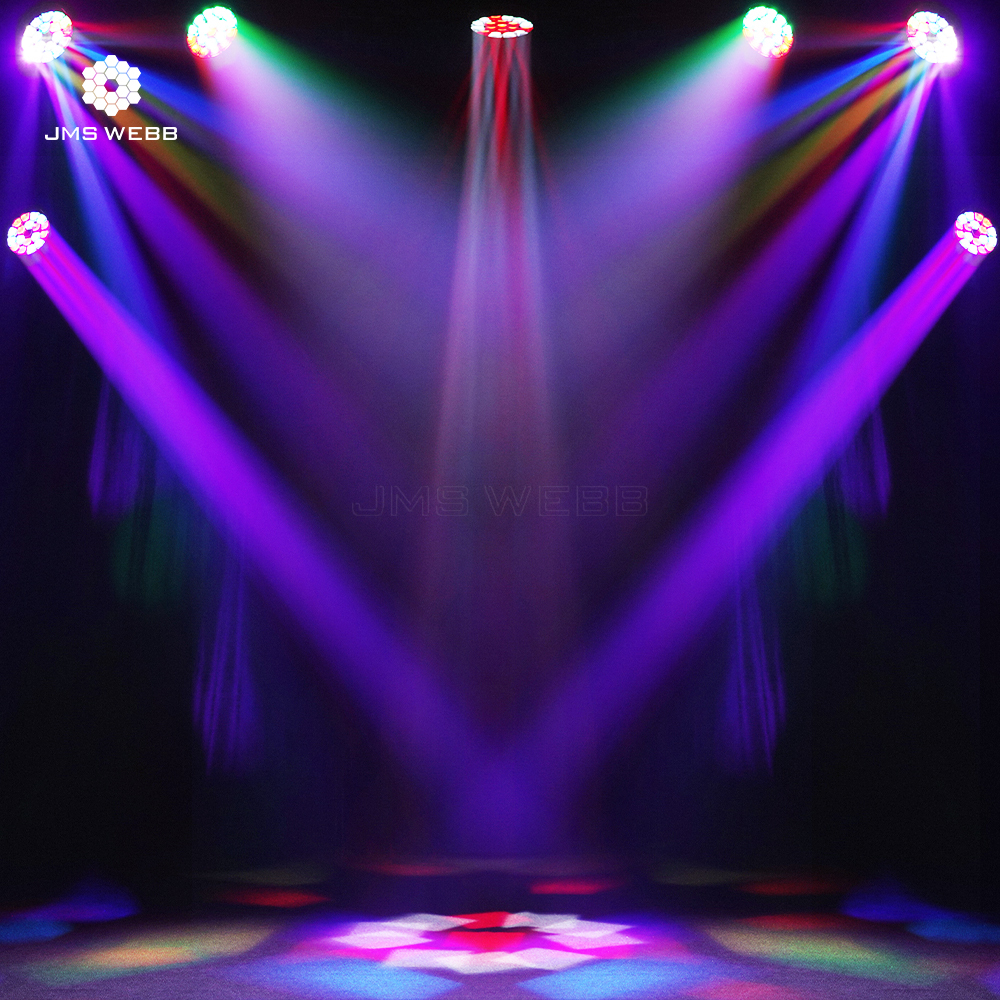

Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
232mm Large Lens
Provide better lighting effects, color representation, and lighting control capabilities,
adding more visual impact and artistic sense to stage performances
Split Heat Dissipation
Independent isolation compartment heat dissipation method,
dual insulation and sealing protection measures
Introduction To Panel Functions
Contains multiple interactive function programs to visually display the operating status
and mode of the lighting fixtures
Built-in lamp operation status sensing and monitoring system,
which can check the operation status of the lamp at any time for easy parameter adjustment
Function Introduction

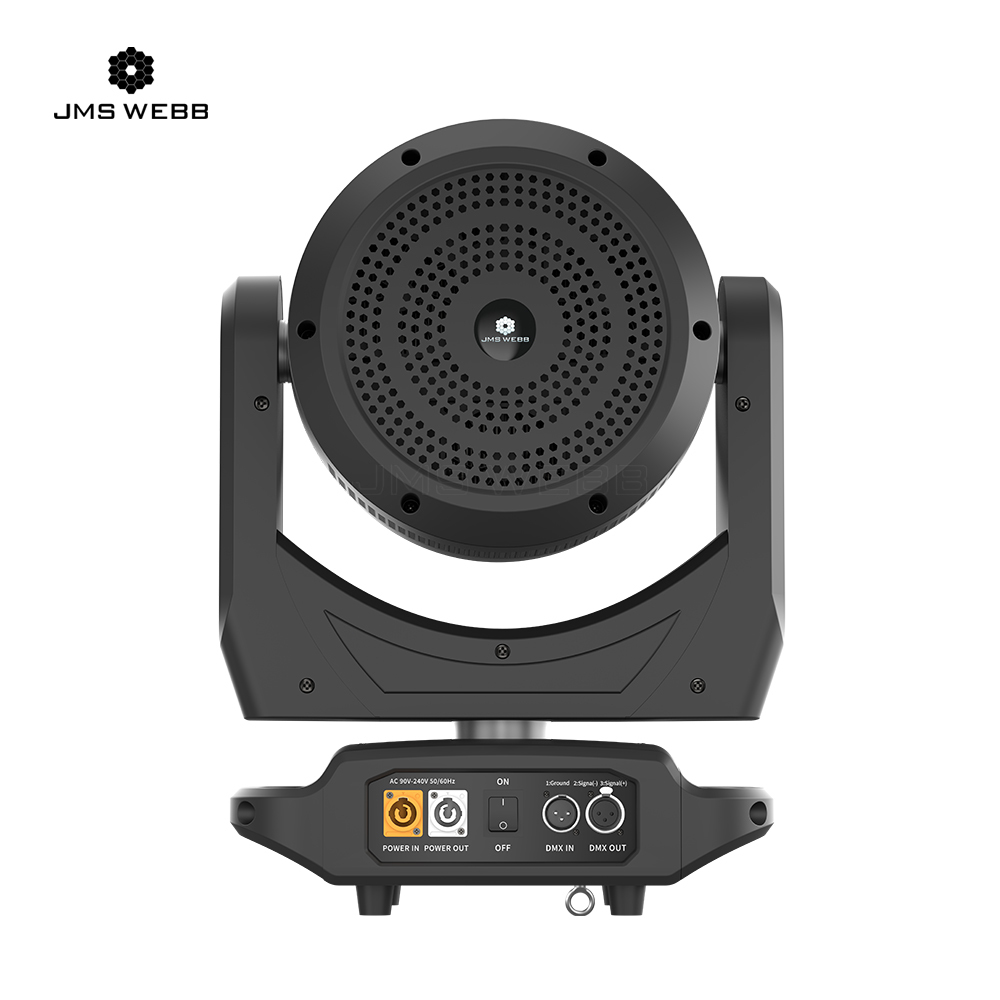

DMX512 signal/power cord interface
Suspension Installation Structure
Reserve installation position and quick lock for safety rope
Carefully Select Excellent Accessories

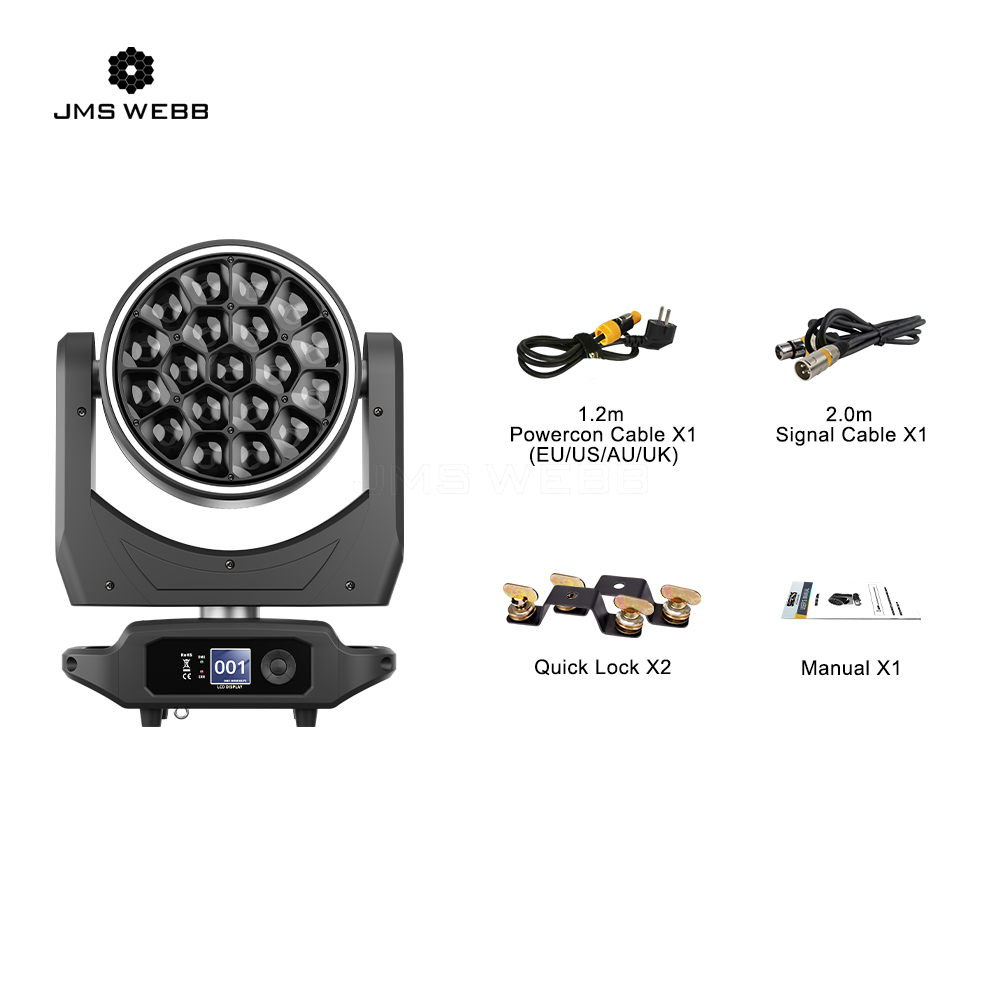

Packing List
Each process undergoes strict verification
Every part is carefully selected

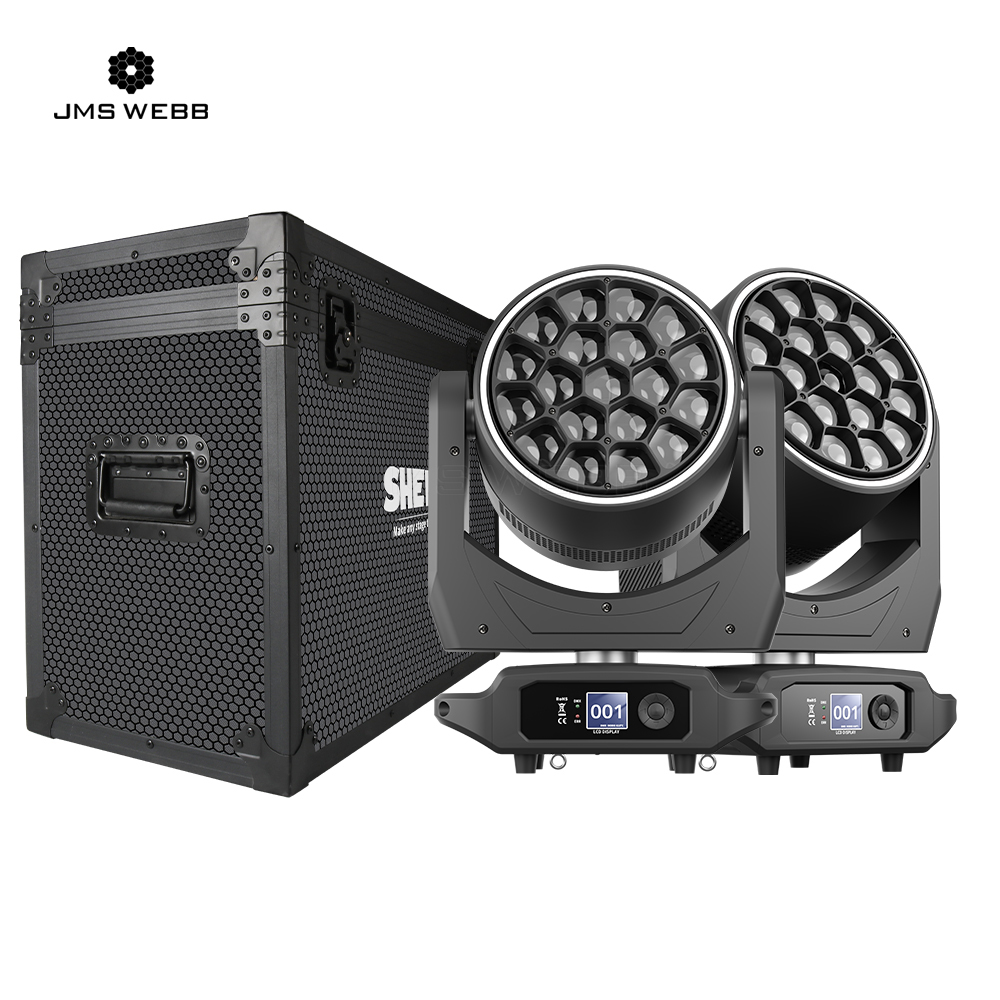

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
