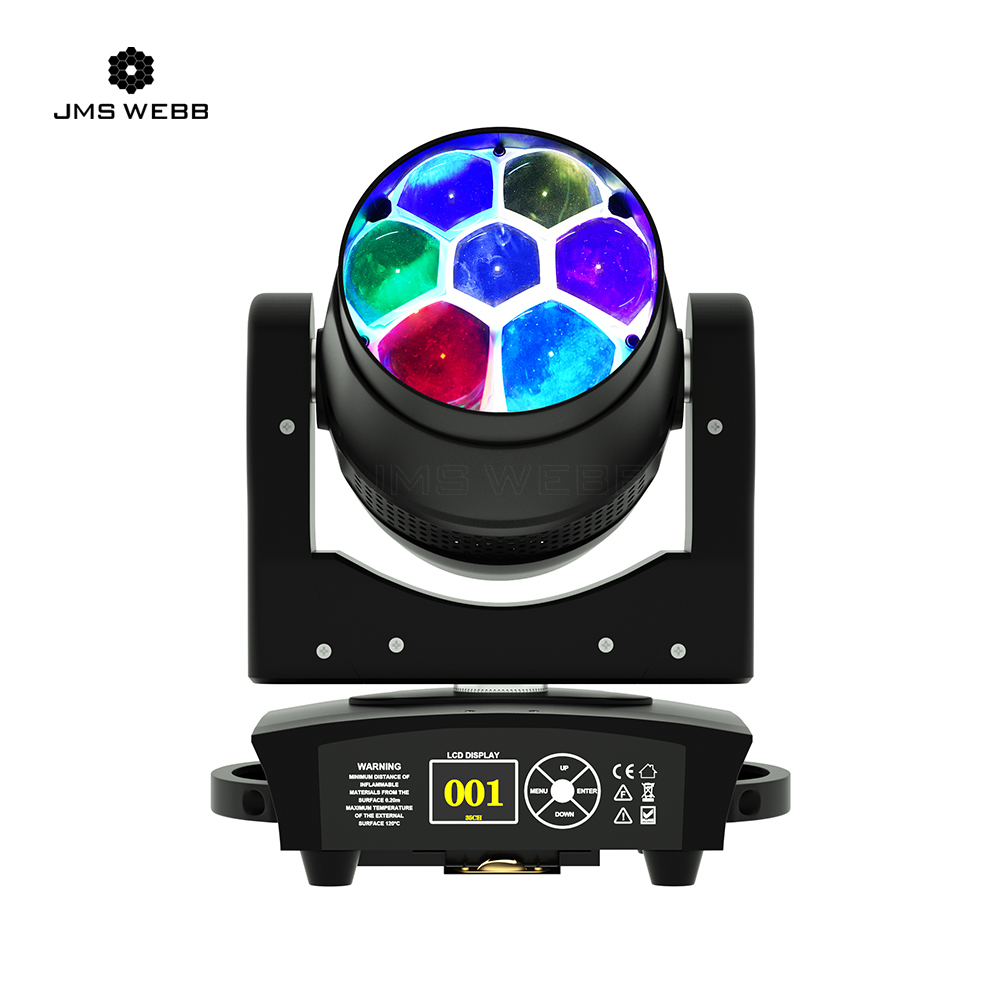

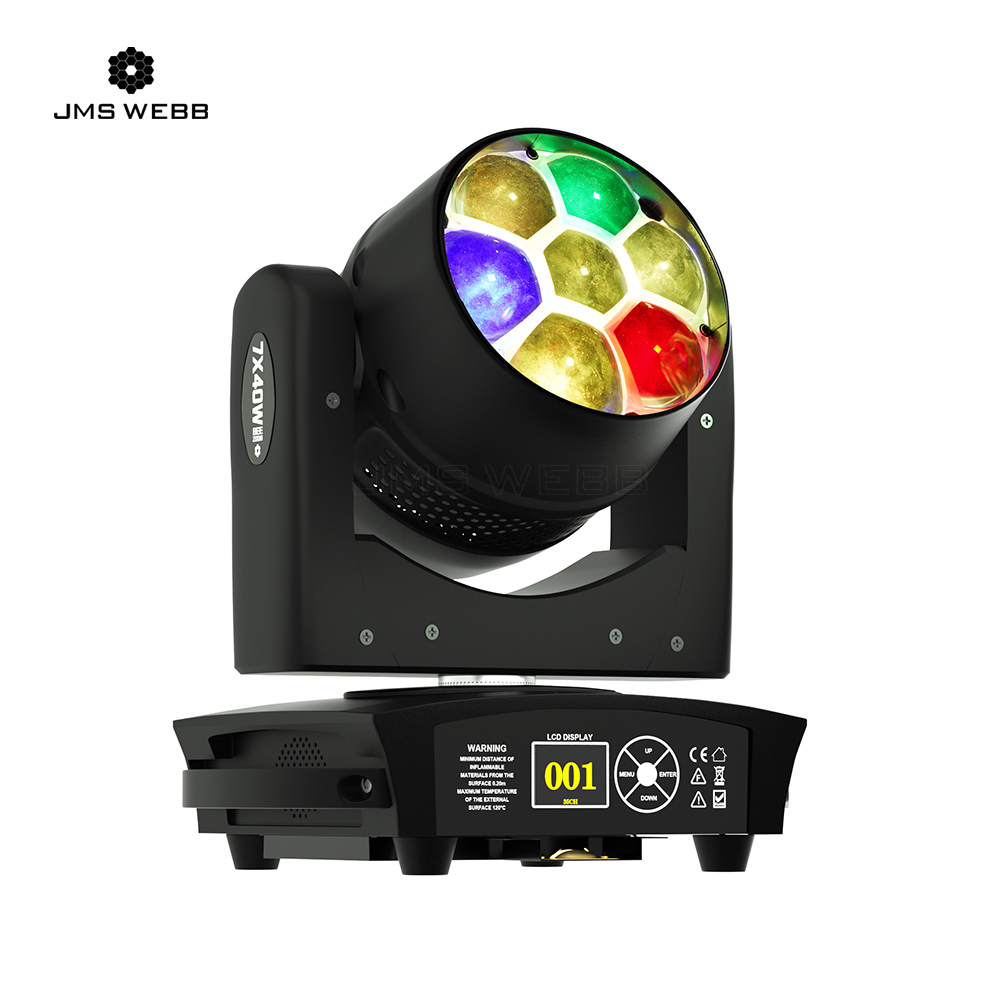

LED Zoom&Beam&Wash Small Bees Eyes
7x40W RGBW Light
The light source consists of 7x40W RGBW four color LEDs,
Create a uniform color mixing system and rainbow effect, easily creating a fast and powerful beam of light, adding dynamism to the stage.
Product Features
Multiple channel modes are available, and the lighting beads are controlled point by point through the DMA and RDM, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
User's Manual: 7X40W BEAM
Library File: 7X40W BEAM
Technical Parameter
| -Electrical specification and connections |
| Power supply: |
350W Electronic auto-ranging |
| Input voltage range: |
100-240 V, 50/60 Hz |
| Power in connector: |
Neutrik powerCON |
| Signal input/output: |
3-pin XLR head socket |
| -Source |
| Light source type: |
LED 7X40W RGBW Mixing |
| Colour temperature output: |
Linear CTO 2500-8000K |
| 10m/20m Illuminance: |
2150 lux / 520 lux |
| LED life expectancy: |
20000 hours |
| -Optical system |
| Zoom: |
8x efficient zoom optical system |
| Beam angle: |
7°-34° |
| Dimmer: |
0~100% linear dimming |
| Lens diameter: |
145 mm |
| -Control and programming |
| Protocols: |
DMX512,RDM |
| DMX Channel Mode： |
23/35/51 channel |
| Feature： |
Auto mode ,sound mode,Manual programming scenarios |
| -Mechanical specification |
| Housing : |
High temperature resistant and flame retardant plastic housing |

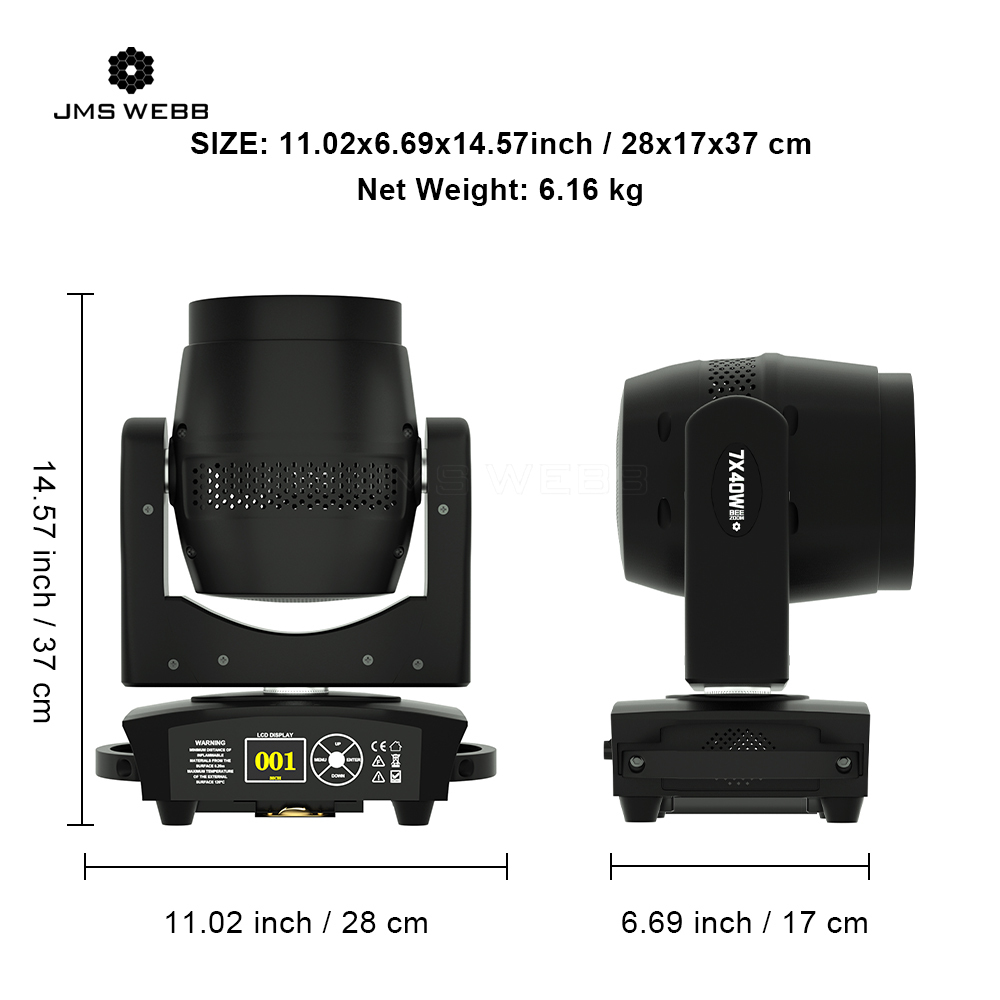

| Product size： |
28x17x37 cm / 11.02x6.69x14.57inch |
| Product weight: |
6.16 kg |
| Package size: |
42x26x34cm / 16.54x10.24x13.39 inch |
| Package weight: |
7.20kg |
| Operating temperature: |
-20~60℃ |
| Ingress protection rating: |
IP20 |
Beam angle
7 ° beam angle - 34 °wash angle
Optical Lens Display
Rainbow color change effect
Point by point control
Clockwise and counterclockwise 360 ° rotation
Integrating Powerful Beam
And Dyeing Functions
A linear focusing system with a beam angle of 6.3 ° -50 °, multiple speed strobe effects, and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects, fully adapting to different stage application needs

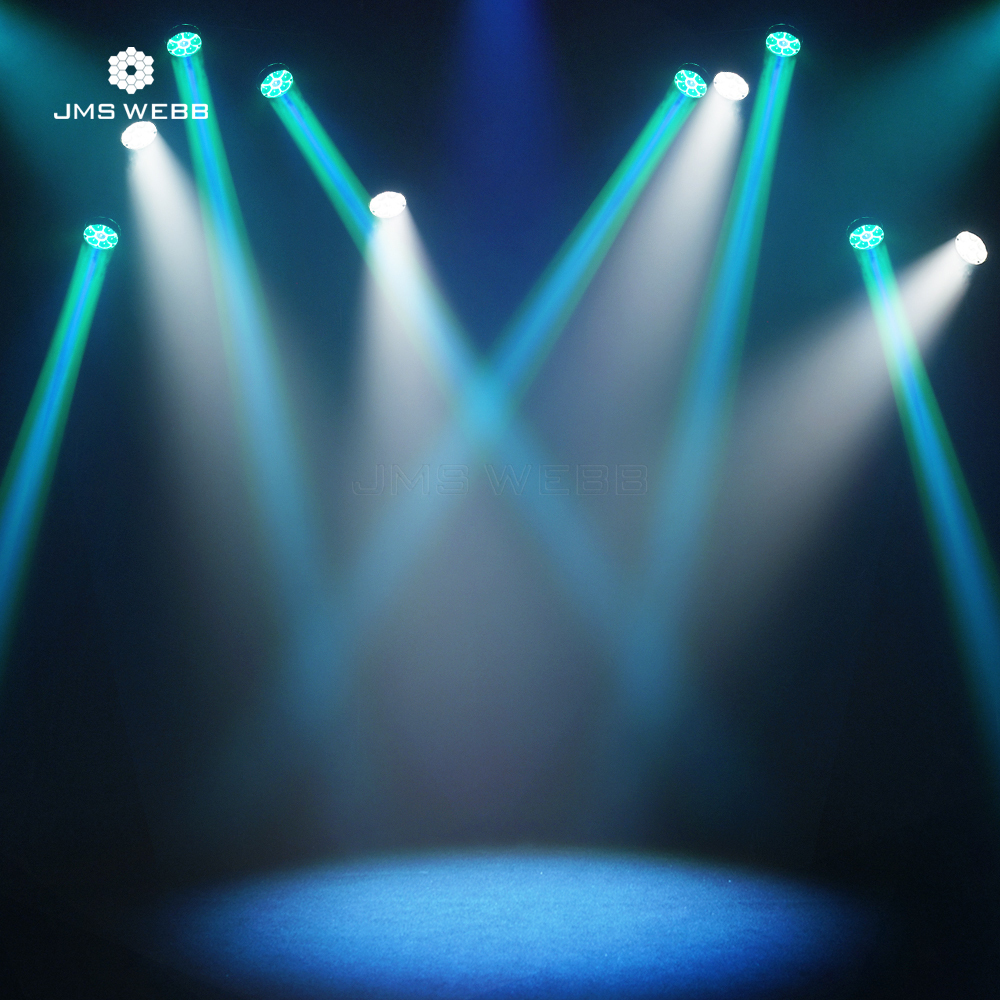

Focusing effect
Adjust lighting through the lens to enhance the atmosphere of the scene

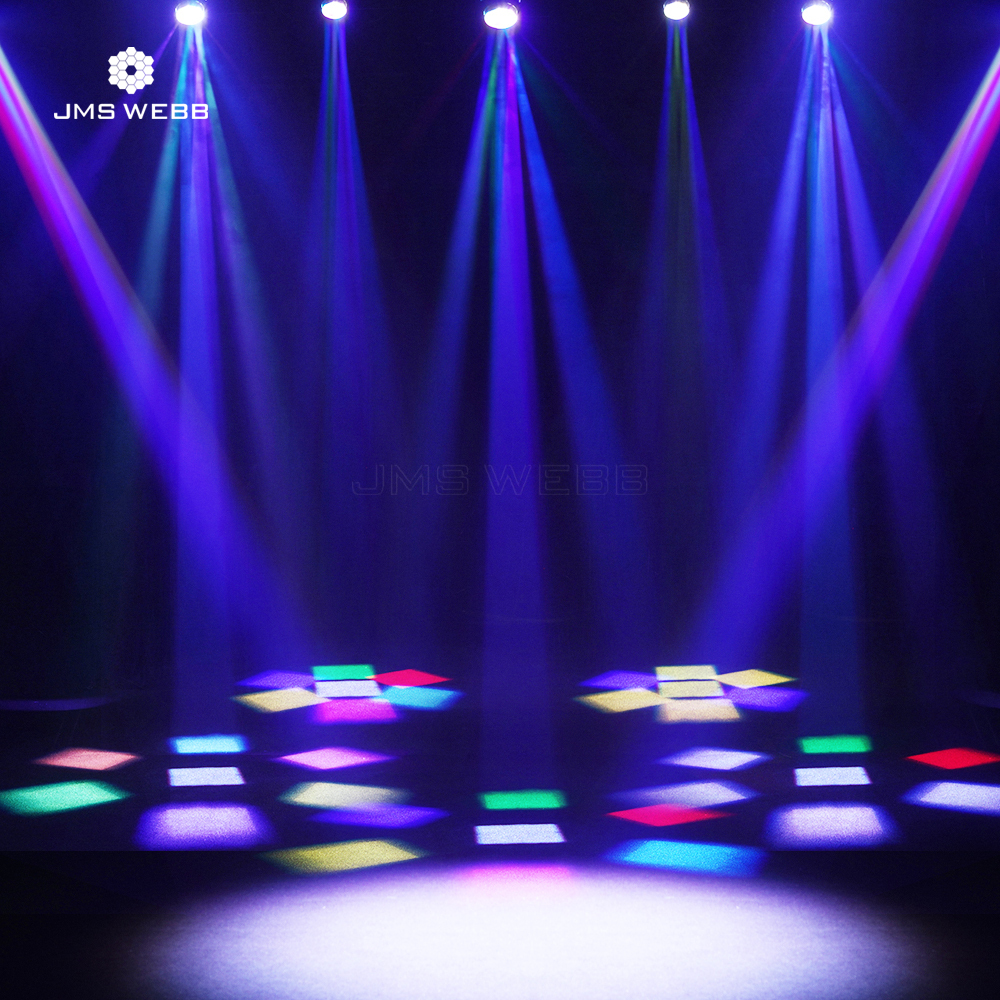

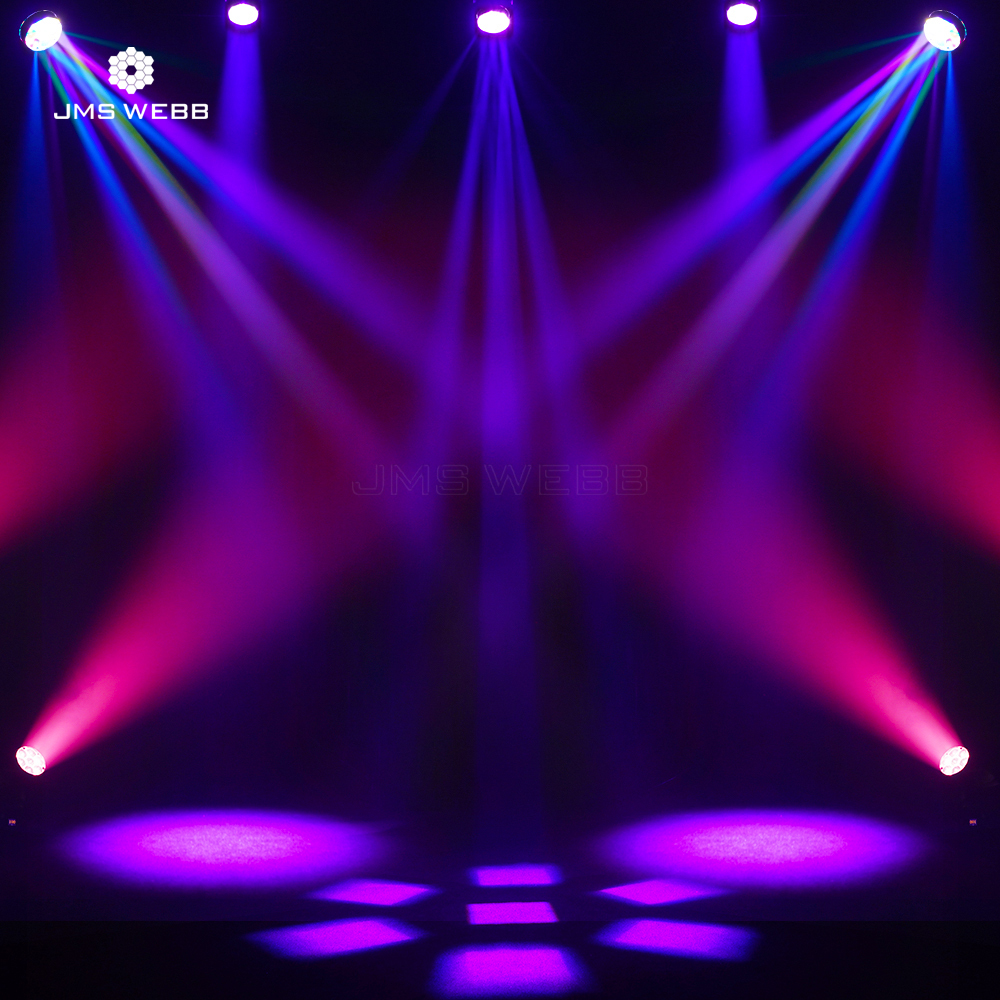

Light Spot Effect
Multiple colors transform and interweave, creating a vibrant atmosphere of light and shadow

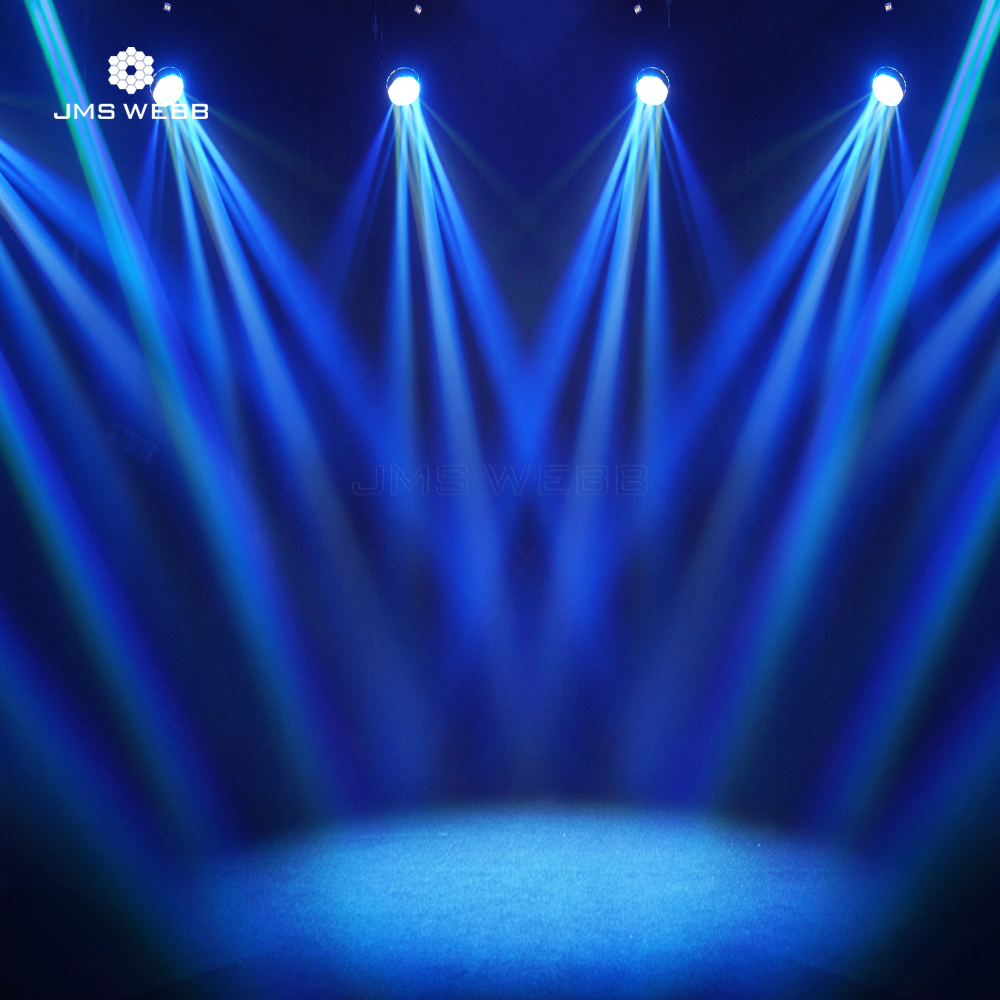

Multiple Channel Effects
The changes in color are dazzling and dazzling, and the lighting turns the air into
a fairy tale like beauty, making it unforgettable to leave
Function Introduction
DMX512 signal/power cord interface
Introduction to Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures
Built-in lamp operation status sensing and monitoring system, which can check the operation status of the lamp at any time for easy parameter adjustment
Suspension installation structure
Reserve installation position and quick lock for safety rope

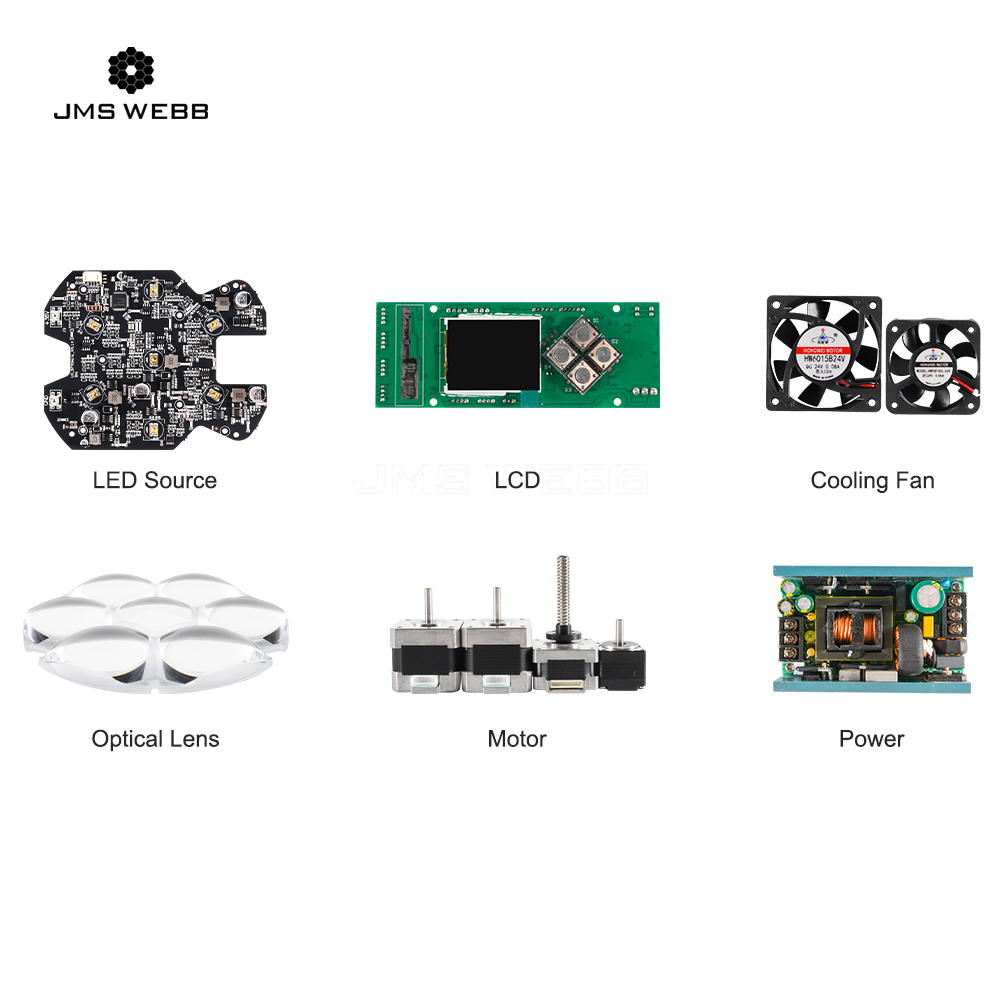

Carefully Select Excellent Accessories
Packing List
Each process undergoes strict verification
Every part is carefully selected

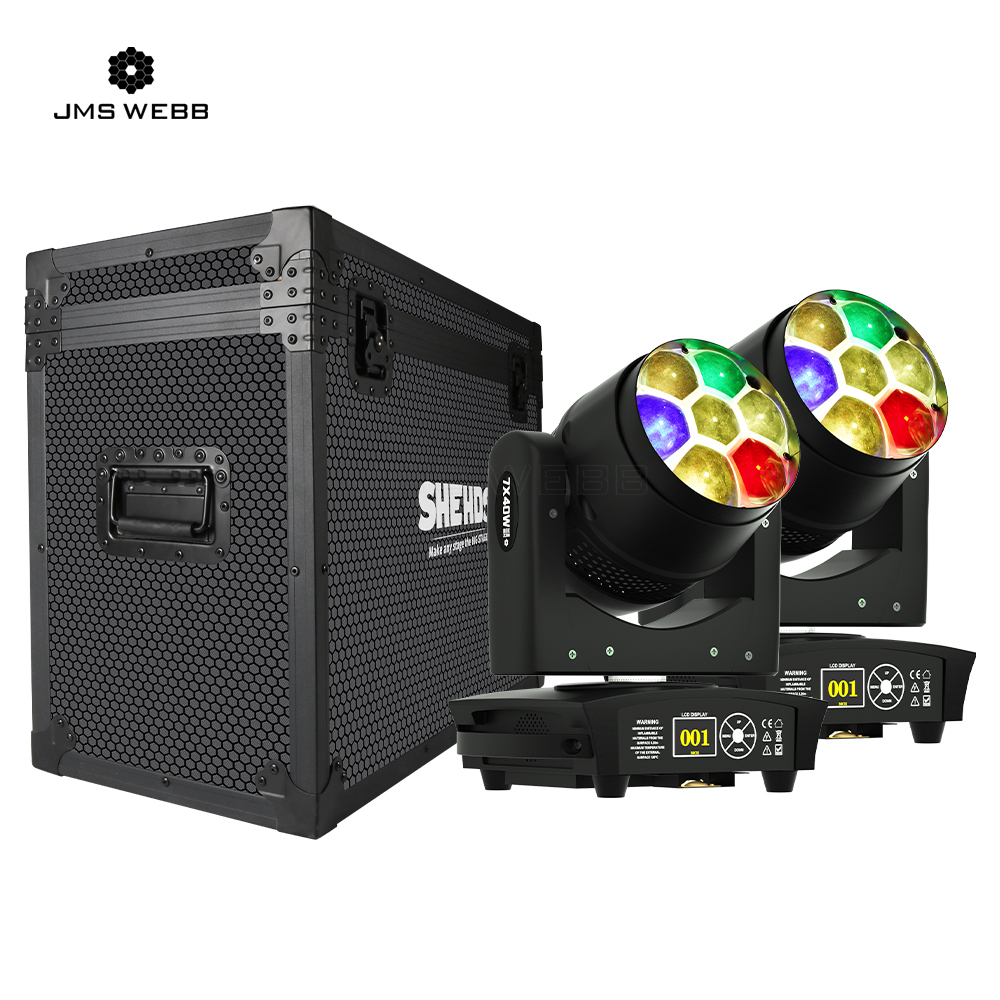

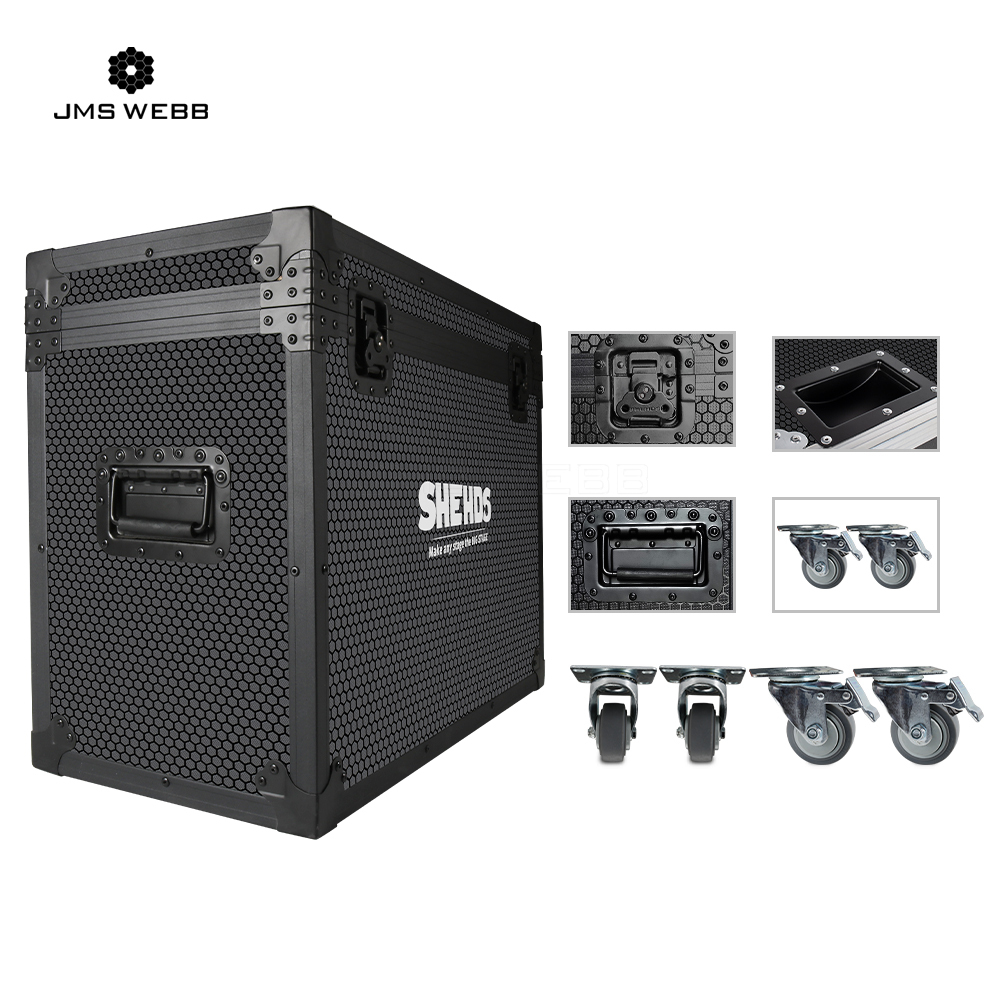

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
