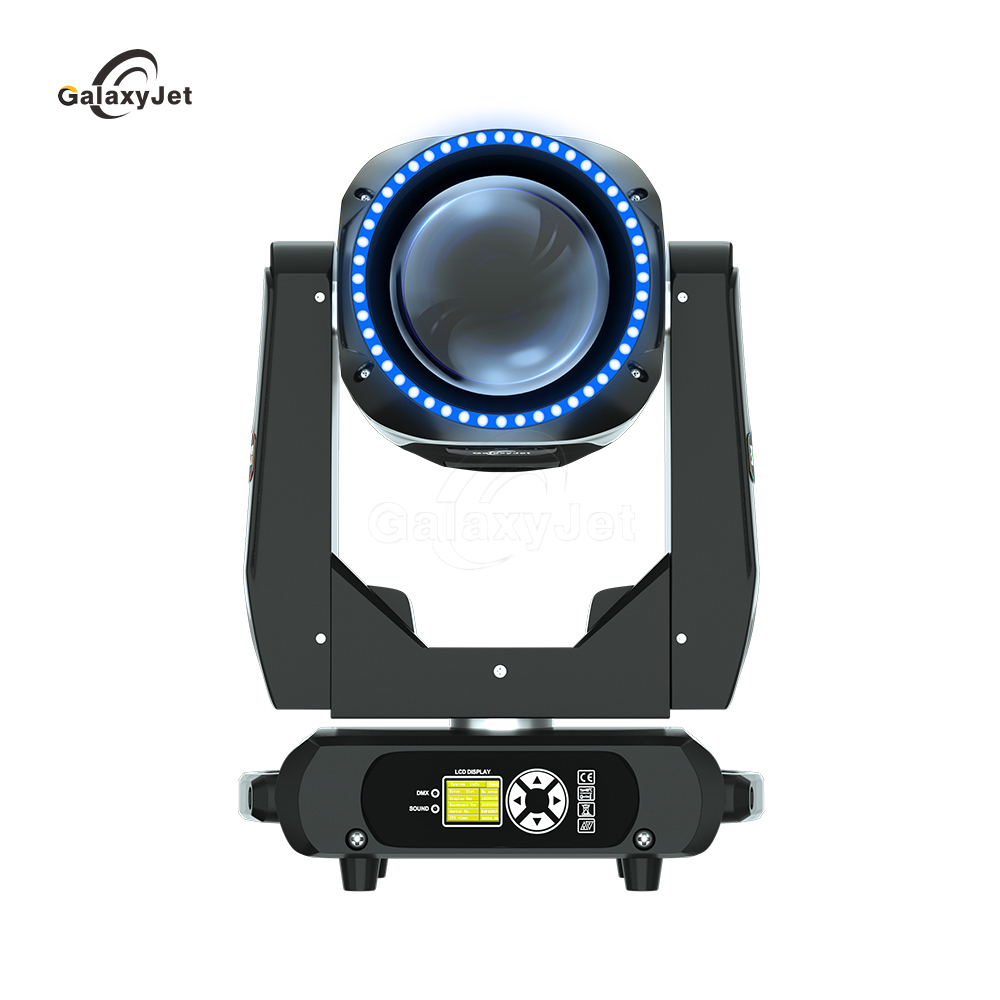

380W BEAM LIGHT
The 380W beam not only has a fashionable and compact appearance, but also perfectly integrates beam, dyeing,
and pattern effects The color temperature reaches up to 7500K, and in beam mode,
the illumination at 10 meters reaches 360000lux, with a sharp sense.
The excellent light output creates a strong visual impact for the performance.
Product Features
Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.
Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,
Improve the level of stage performance in all aspects, providing high-quality choices
for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.
Technical Parameter
| -Electrical specification and connections |
| Power supply: |
600W-380V+12V+36V Electronic auto-ranging |
| Input voltage range: |
100-240 V, 50/60 Hz |
| Power in connector: |
Neutrik powerCON |
| -Source |
| Light source type: |
380W Bulb |
| Colour temperature output: |
7500±500 K |
| 10m/20m Illuminance: |
332900 lux @ 10m / 89420 lux @20m |
| Life expectancy: |
min. 1500 hours |
| -Optical system |
| Beam angle: |
Beam 1.9°- Frost 25° |
| Dimmer: |
Mechanical shutter |
| Lens diameter: |
160mm |
| -Dynamic Effects and Features |
| Colour wheel : |
14 fixed dichroic colours + white |
| Static gobo wheel: |
17 static gobos + open |
| Prism 1: |
8-facet prism rotating in both directions at variable speed |
| Prism 2: |
24-facet prism rotating in both directions at variable speed |
| Frosts: |
Fast change frosts for instant softening of the projected gobo or framing shutters |
| Raimbow wheel: |
6 colors |
| -Control and programming |
| Protocols: |
DMX512,RDM |
| DMX Channel Mode： |
With ring version :19 CH; Without ring version:16 CH |
| Feature： |
Auto mode ,sound mode,Manual programming scenarios |
| -Mechanical specification |
| Housing : |
High temperature resistant and flame retardant plastic housing |

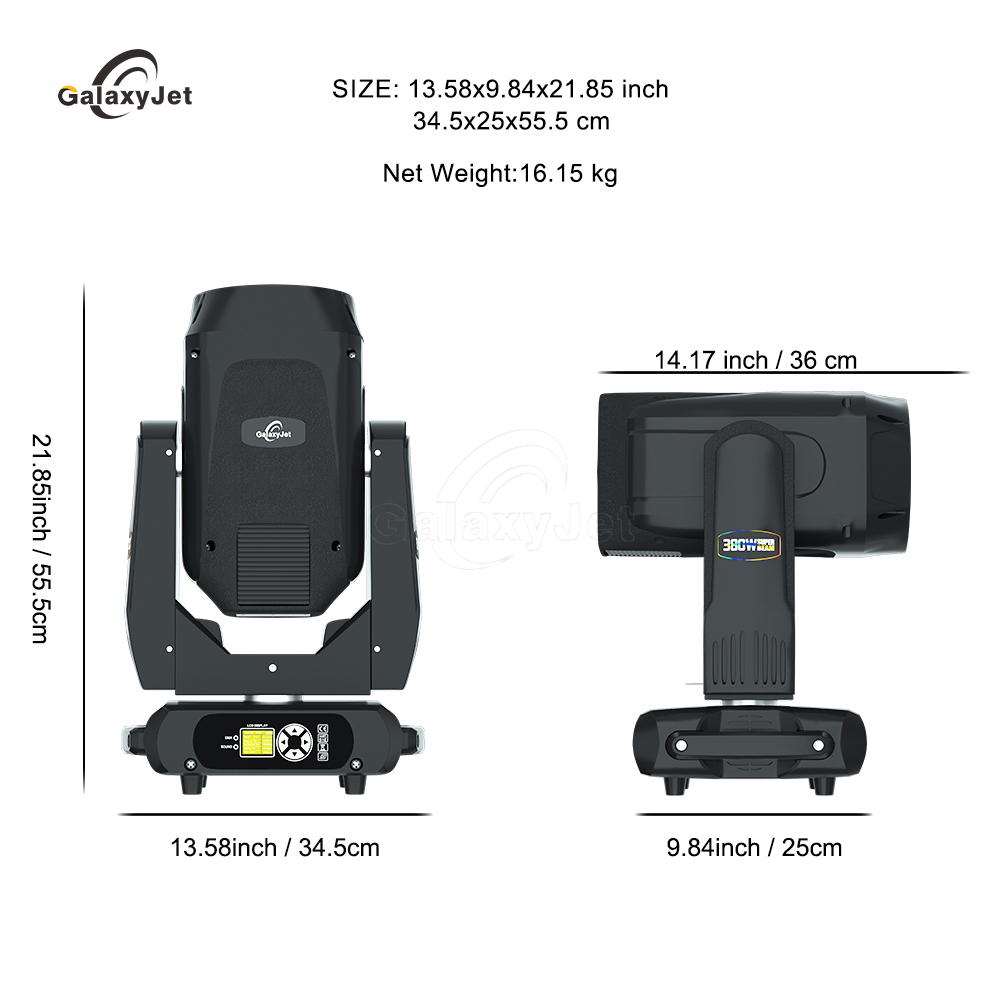

| Product size： |
55.5 x 34.5 x25 cm / 21.8 x 13.5 x 9.8 inch |
| Product weight: |
16.15 kg |
| Package size: |
50 x 46 x42.5 cm / 19.6 x 18.1 x 16.5 inch |
| Package weight: |
19.85kg |
| Operating temperature: |
-20~60℃ |
| Ingress protection rating: |
IP20 |
Beam angle
0.2 ° beam angle - linear focusing
Differences Between The Two Beam Lights
With Ring Beam Light I Without Ring Beam Light
19 CH mode I 16 CH mode
Effect Show
Colors Effect
Prism Effect Display
Bright And Colorful
Frost Effect Display
Rendering the Stage Atmosphere
Beam Effect
Uniform and colorful pattern effects with uniform light spots
Function Introduction

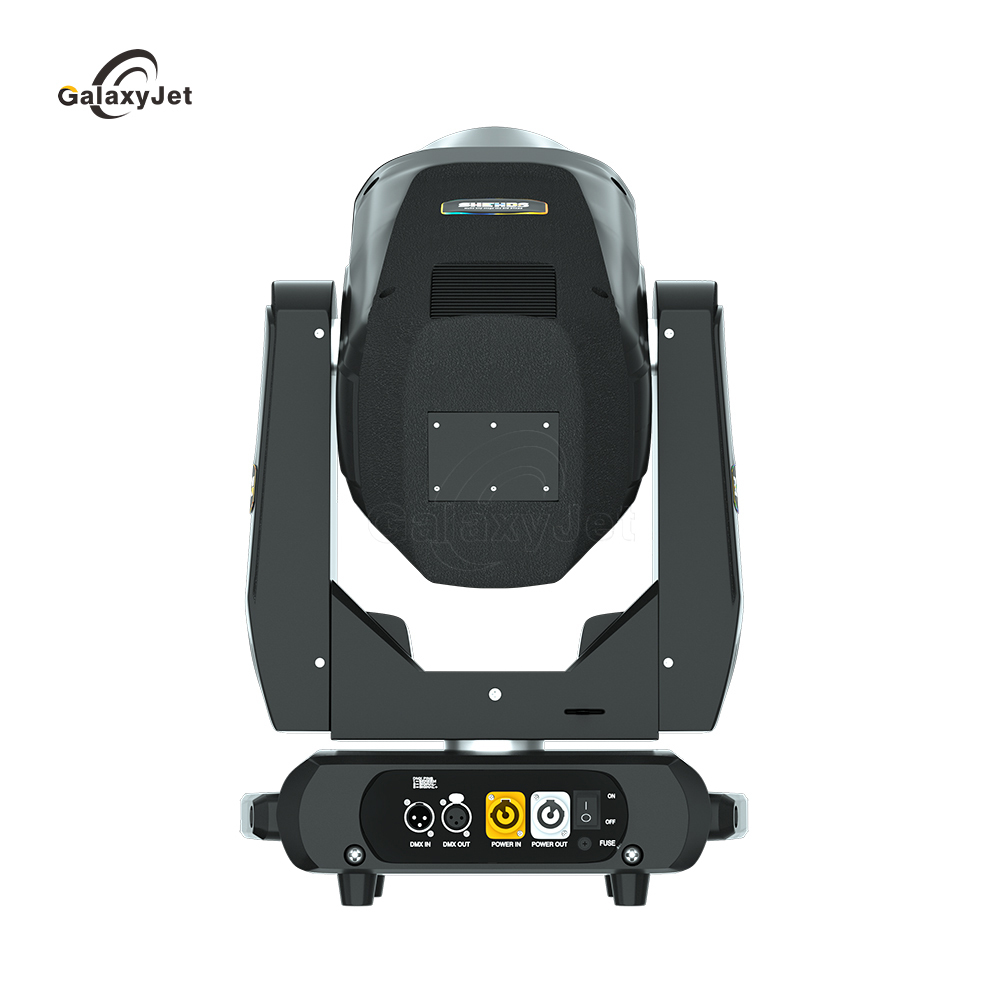

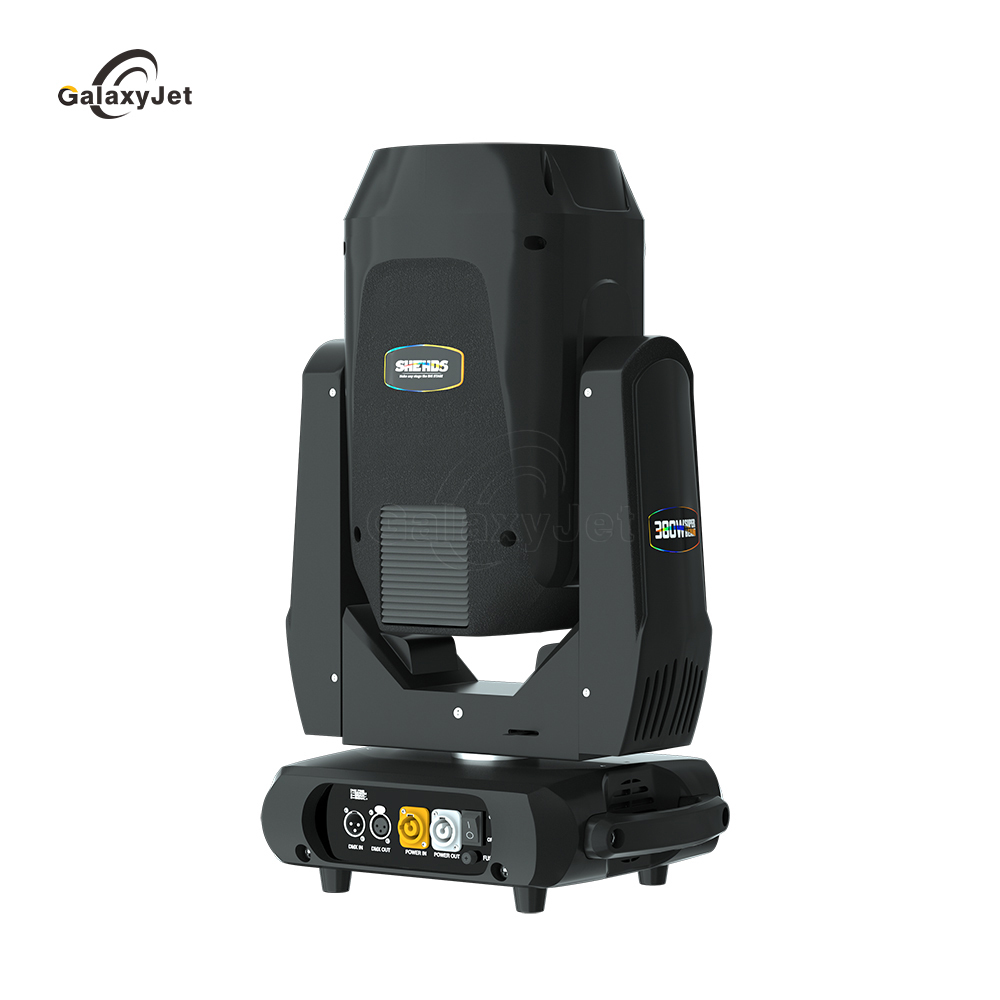

DMX512 signal/power cord interface
Exquisite Craftsmanship
Each process undergoes strict verification
Every part is carefully selected
152mm Optical Coated Large Lens
More powerful and spectacular beam of light,
The pattern is clearer and more natural,
New Process Technology for Colorful Coating

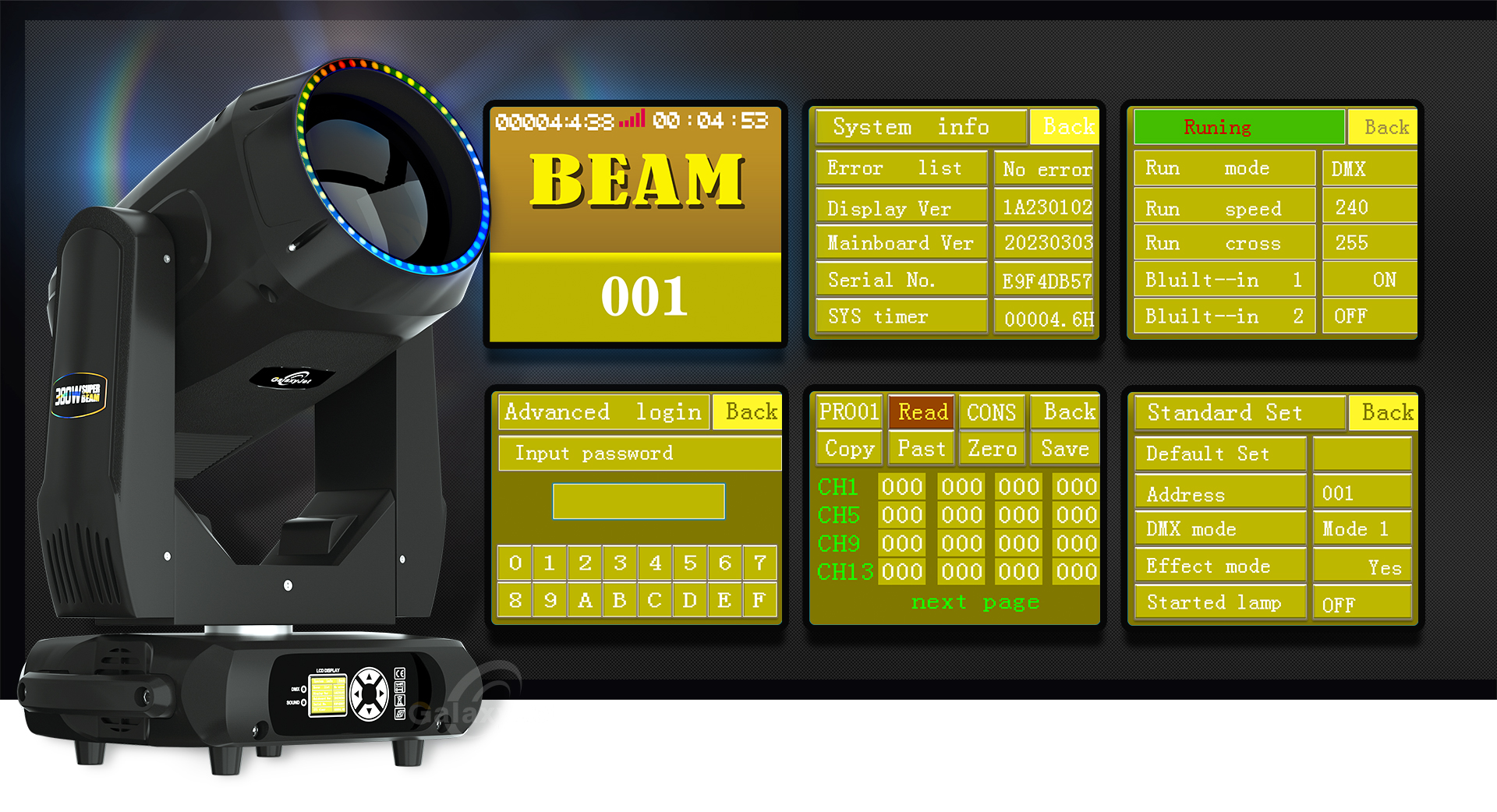

Introduction to Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures,
Built-in lamp operation status sensing and monitoring system,
which can check the operation status of the lamp at any time for easy parameter adjustment

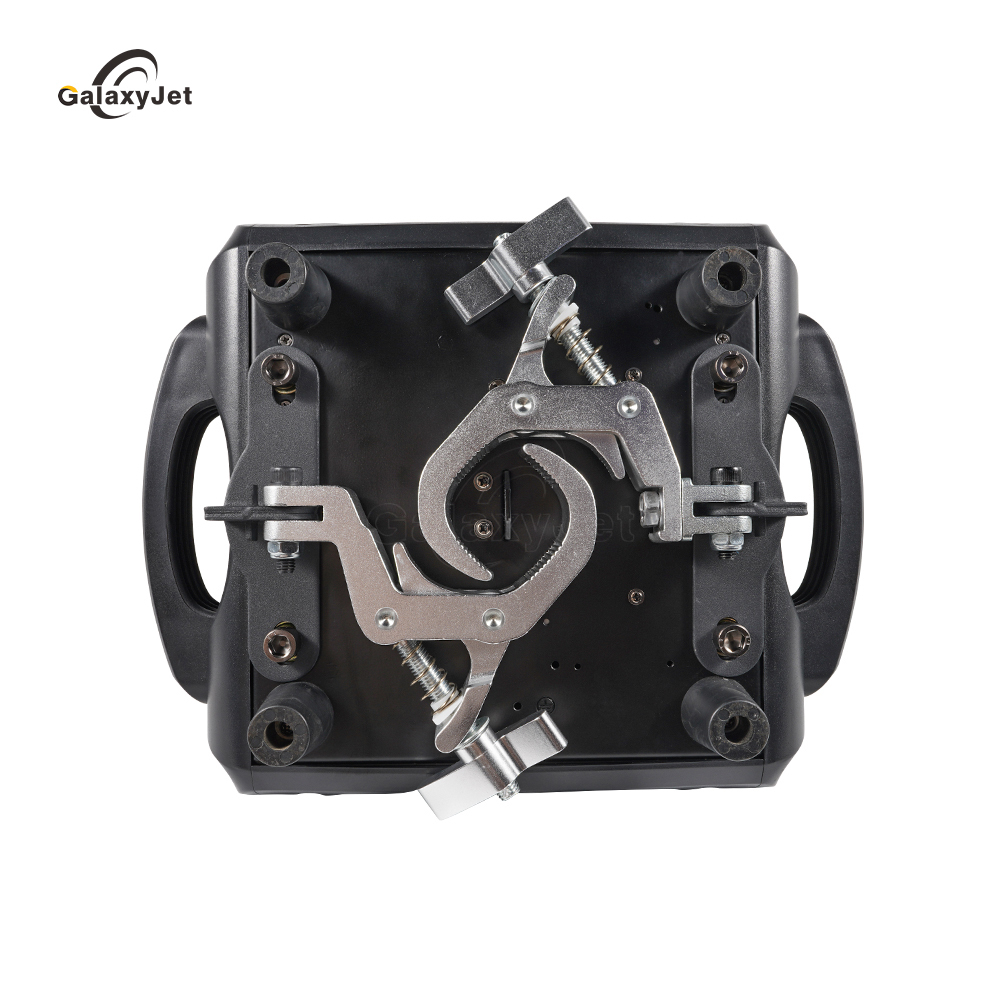

Suspension Installation Structure
Reserve installation position and quick lock for safety rope

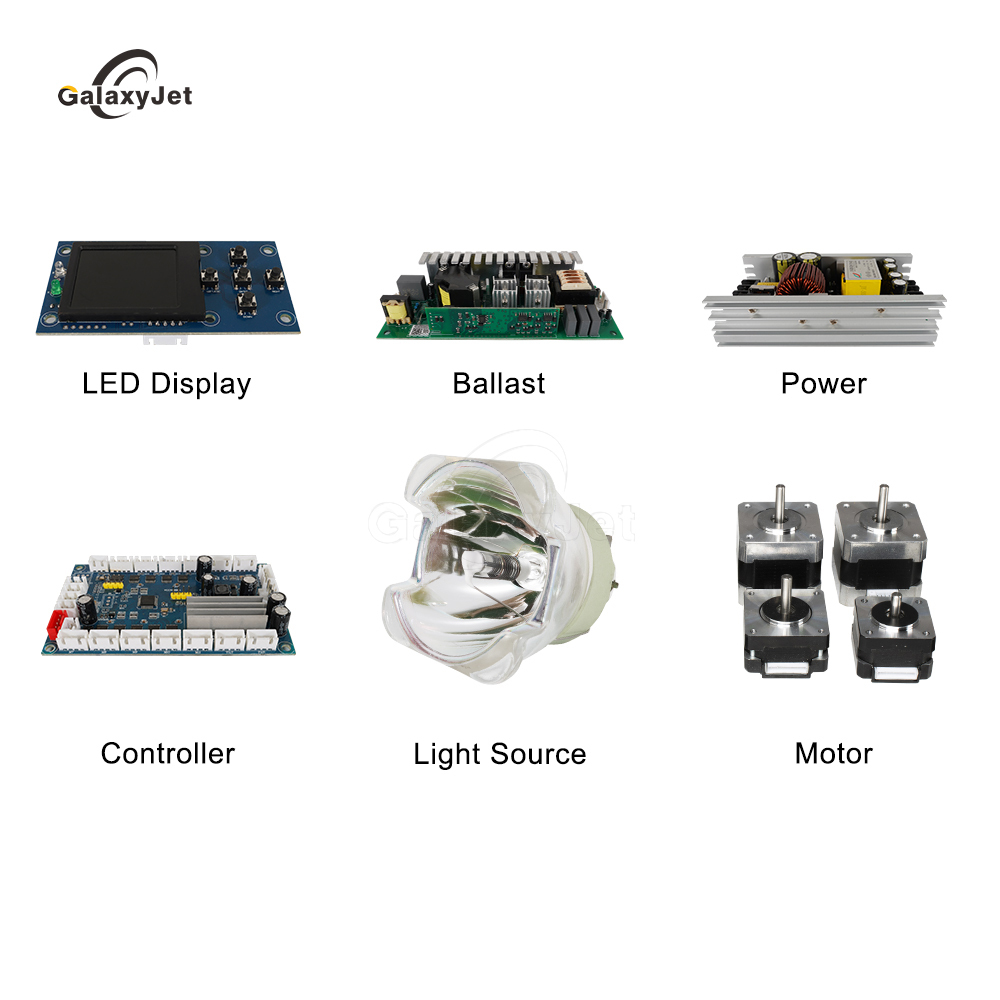

Carefully Select Excellent Accessories

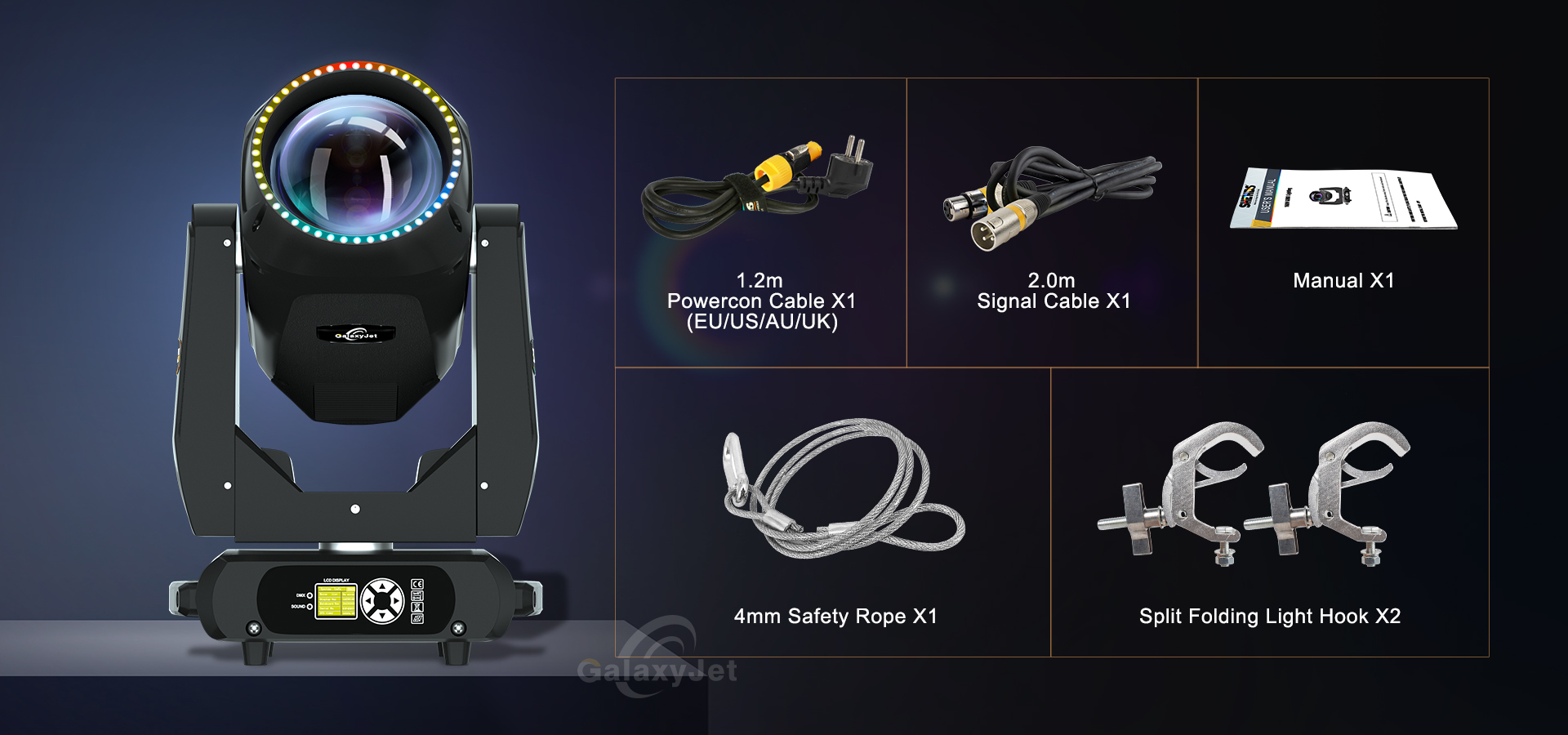

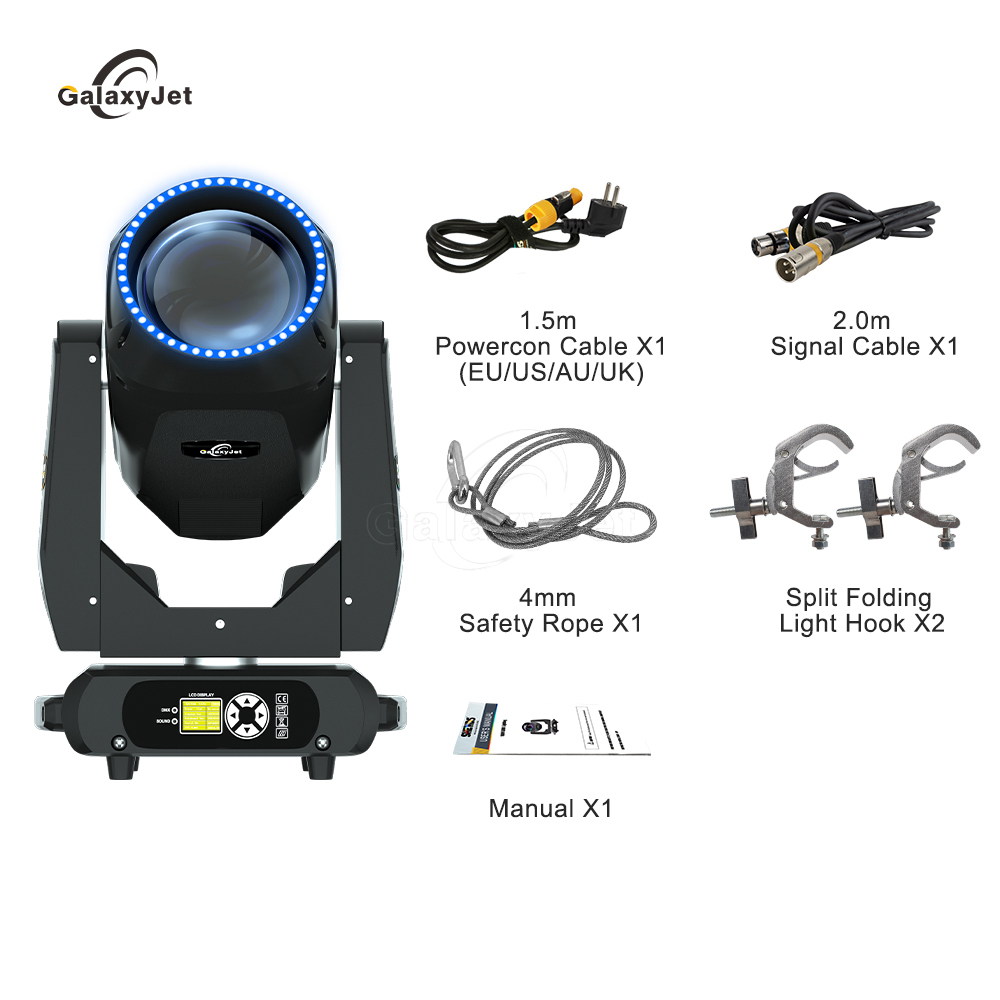

Packing List
Each process undergoes strict verification
Every part is carefully selected

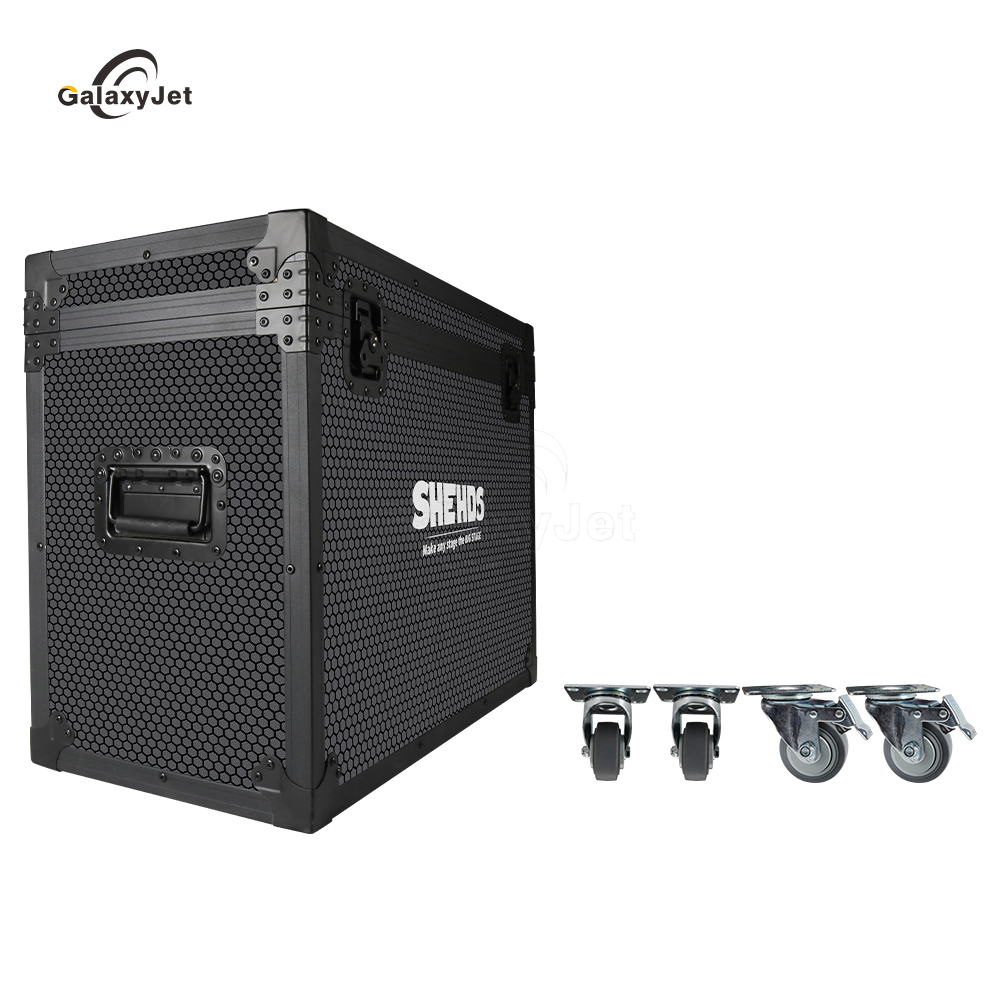

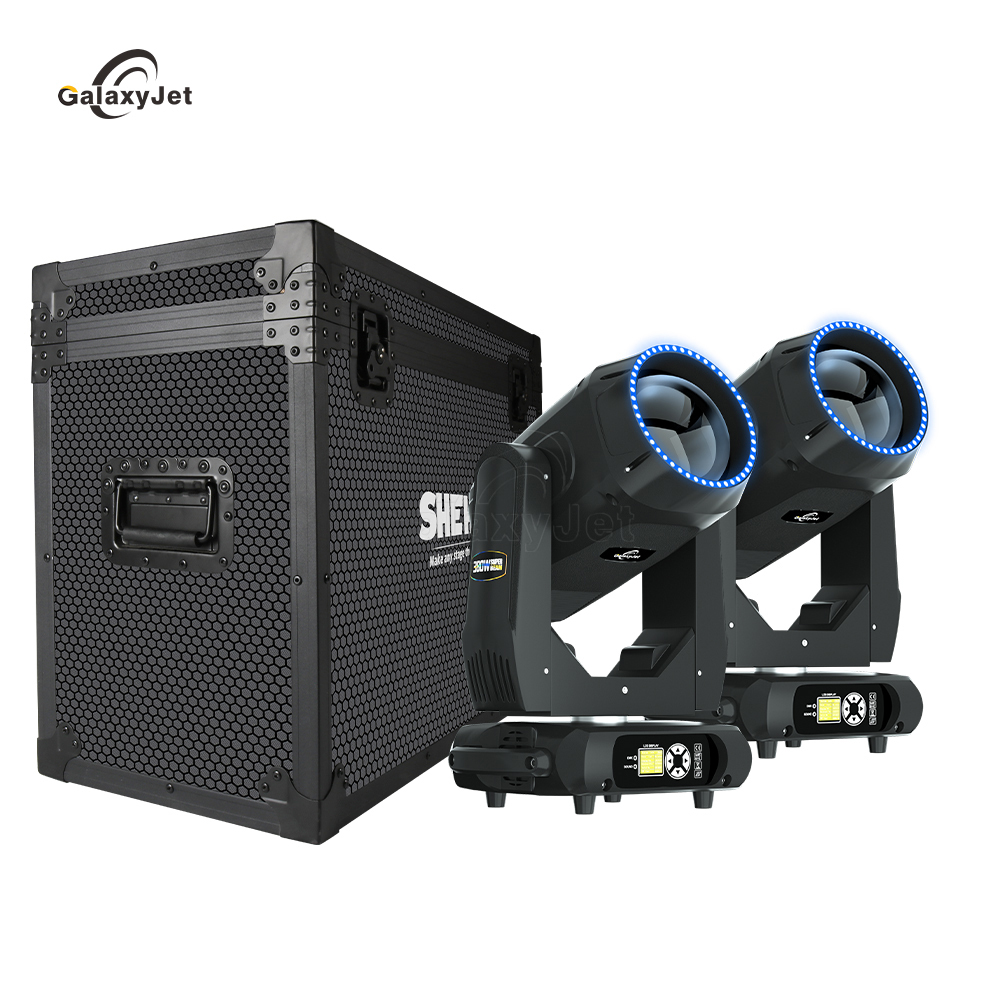

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
