| -Electrical specification and connections | |
| Power supply: | 600W-380V+12V+36V Electronic auto-ranging |
| Input voltage range: | 100-240 V, 50/60 Hz |
| Power in connector: | Neutrik powerCON |
| -Source | |
| Light source type: | 380W Bulb |
| Colour temperature output: | 7500±500 K |
| 10m/20m Illuminance: | 332900 lux @ 10m / 89420 lux @20m |
| Life expectancy: | min. 1500 hours |
| -Optical system | |
| Beam angle: | Beam 1.9°- Frost 25° |
| Dimmer: | Mechanical shutter |
| Lens diameter: | 160mm |
| -Dynamic Effects and Features | |
| Color wheel : | 14 fixed dichroic colors + white |
| Static gobo wheel: | 17 static gobos + open |
| Prism 1: | 8-facet prism rotating in both directions at variable speed |
| Prism 2: | 24-facet prism rotating in both directions at variable speed |
| Frosts: | Fast change frosts for instant softening of the projected gobo or framing shutters |
| Rainbow wheel: | 6 colors |
| -Control and programming | |
| Protocols: | DMX512,RDM |

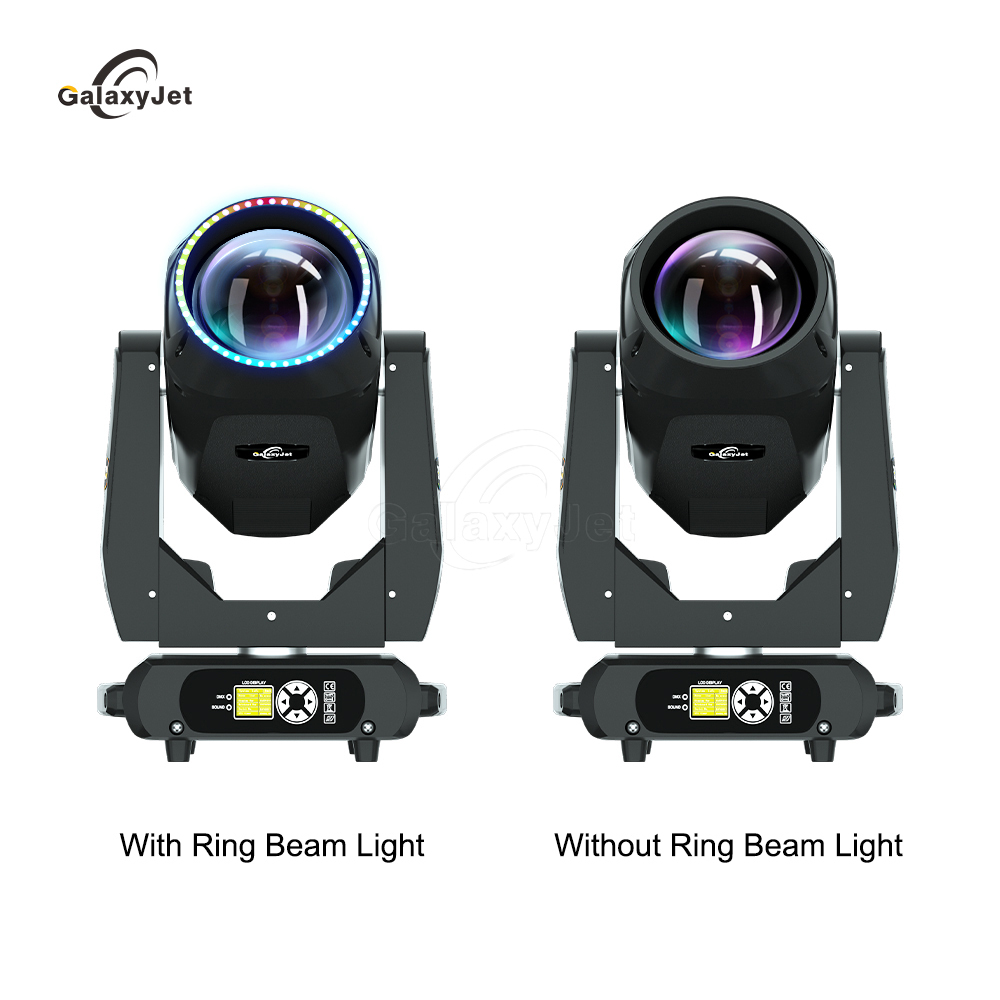

| DMX Channel Mode： | With ring version : 19 CH; Without ring version:16 CH |

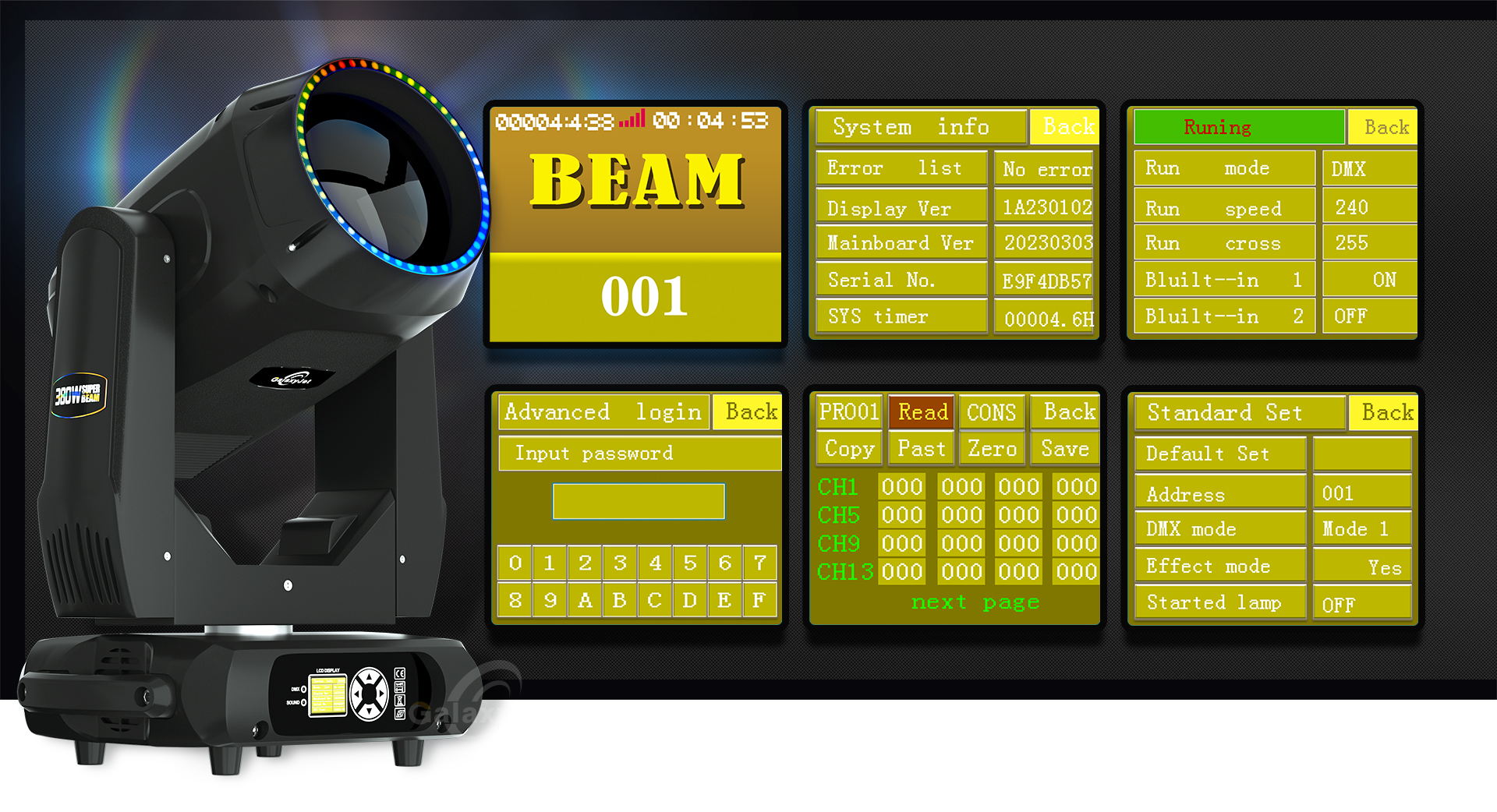

| Feature： | Auto mode, sound mode, Manual programming scenarios |
| -Mechanical specification | |
| Housing : | High temperature resistant and flame retardant plastic housing |

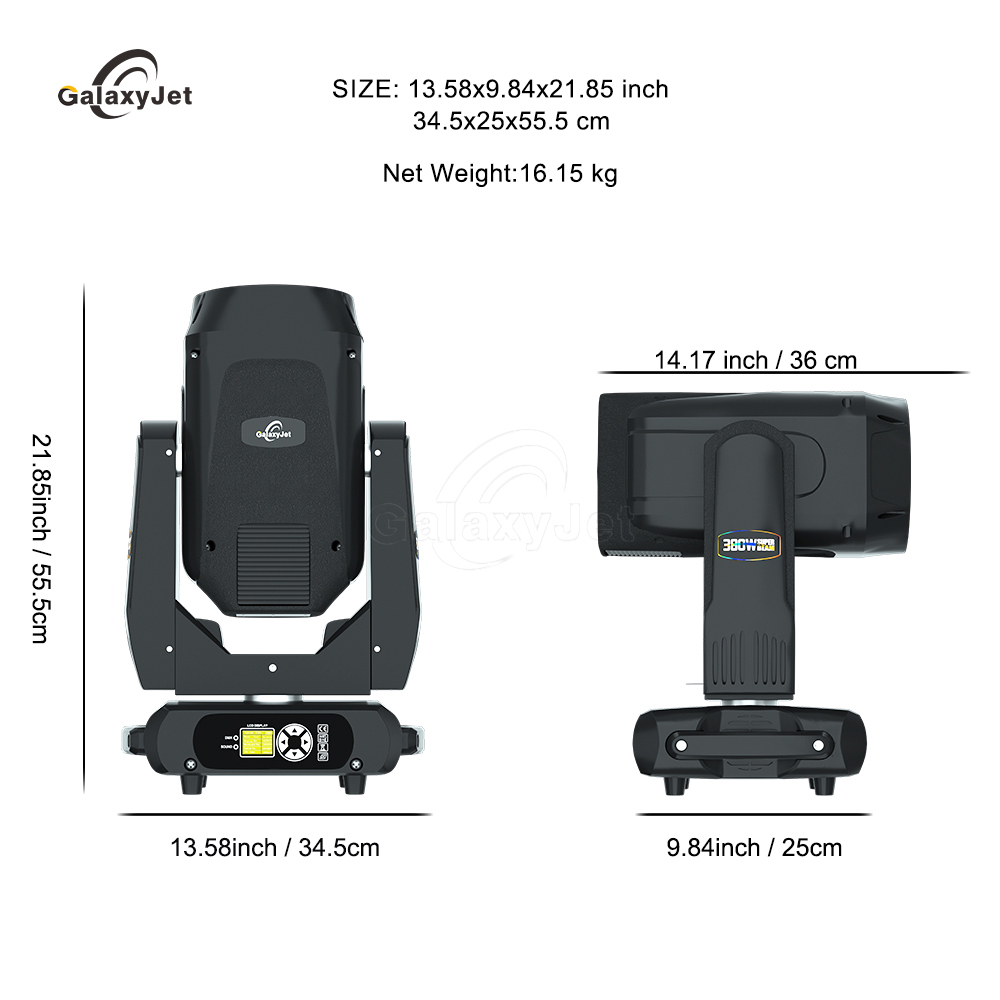

| Product size： | 55.5 x 34.5 x25 cm / 21.8 x 13.5 x 9.8 inch |
| Product weight: | 16.15 kg |
| Package size: | 50 x 46 x42.5 cm / 19.6 x 18.1 x 16.5 inch |
| Package weight: | 19.85kg |
| Operating temperature: | -20~60℃ |
| Ingress protection rating: | IP20 |
