3W MOVING HEAD LASER
High-frequency scanning pattern laser
Professional stage equipment
Applicable Scene
These laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
Product Features
The high-frequency scanning technology ensures a smooth and seamless display of laser patterns,
with sharp and precise movements that are sure to captivate any audience.
Technical Parameter
It has a variety of patterns and animation effects,
supports automatic and voice-activated modes, sharp and even light,
and uses the best accessories and lasers.
|
| > Input voltage range: |
AC90-240 V, 50/60 Hz |
> Power in connect: |
Neutrik powerCON |
| > Laser source type: |
3W semiconductor pump laser |
> Laser modulation: |
TTL |
| > Laser wavelength: |
Red 638nm/Green 520nm/Blue 450nm |
> Laser power: |
3W |
| > Laser color: |
RGB |
> Scanner: |
15KPPS |
| > Animation: |
35 pcs |
> Pattern: |
128 pcs |
| > Protocols: |
DMX-512 |
> DMX Channel Mode: |
15/42ch |
| > Feature: |
Auto mode,Sound mode,Mater&Slave |
> Movement control:: |
Standard and Speed |
| > Pan movement: |
540° |
> Tilt movement: |
180° |
| > Ingress protection rating: |
IP20 |
> Housing: |
High temperature resistant and flame retardant plastic housing |
| > Product size: |
8.85x6.69x12 inch / 22.5x17x30.5 cm |
> Product weight: |
3.4 kg |
| > Package size: |
13.85x10.63x9.45 inch / 34x27x24 cm |
> Package weight: |
4.41 kg |
|
| -Light source parameters |
| Laser wavelength: |
R-638nm, G-520nm, B-450nm |
| Spot size (laser window spot): |
5.5mm |
| Light source divergence angle : |
＜1.2mrad |
| Modulation mode: |
0~5V analog, up to 50khz/TTL |
| Laser class: |
Class IV |
| -Imaging system |
| Imaging color: |
Red, green, blue, yellow, purple, cyan, white mixed colors |
| Evenness: |
>98% |
| Lens Horizontal Offset: |
-30% to +30% |
| Lens Vertical Offset:: |
-30% to +30% |
| Imaging mode: |
3D/2D pattern and animation (with software) |
| Projection distance: |
＜200M The best distance is 30~100M |
| Playback rate: |
25 KPPS |
| Playback angle: |
Max60° |
| -Security system |
| Safety standard: |
Follow the IEC60825 standard |
| Safety item: |
Overcurrentand voltage protection |
| Degree of protection: |
IP20 |
| Operating temperature: |
15℃~45℃ |
| -Interface and Control System |
| Control interface: |
ILDA In/Out , DMX In/Out ,RJ45 In/Out |
| DMX channel: |
10/18CH |
| Power interface: |
Neutrik PowerCon |
| -Cooling system |
| Cooling method: |
air cooled |
| Structure: |
60mm plug-in heat dissipation layer |
| Ventilation fan: |
60mm fan in* 2 , 60mm fan out* 2 |
| -Power consumption |
| Working power: |
110~250V AC 50/60HZ |
| Power consumption: |
Max 250W |
| -Physical parameters |
| Product size : |
13.97x11.02x13.77 inch / 35.5x28x35 cm |
| Product weight: |
7.38 Kg |
| Pack size: |
|
| Package weight: |
|
| -Light source parameters |
| Laser wavelength: |
R-638nm, G-520nm, B-450nm |
| Spot size (laser window spot): |
5.5mm |
| Light source divergence angle : |
＜1.2mrad |
| Modulation mode: |
0~5V analog, up to 50khz/TTL |
| Laser class: |
Class IV |
| -Imaging system |
| Imaging color: |
Red, green, blue, yellow, purple, cyan, white mixed colors |
| Evenness: |
>98% |
| Lens Horizontal Offset: |
-30% to +30% |
| Lens Vertical Offset:: |
-30% to +30% |
| Imaging mode: |
3D/2D pattern and animation (with software) |
| Projection distance: |
＜200M The best distance is 30~100M |
| Playback rate: |
25 KPPS |
| Playback angle: |
Max60° |
| -Security system |
| Safety standard: |
Follow the IEC60825 standard |
| Safety item: |
Overcurrentand voltage protection |
| Degree of protection: |
IP20 |
| Operating temperature: |
15℃~45℃ |
| -Interface and Control System |
| Control interface: |
ILDA In/Out , DMX In/Out ,RJ45 In/Out |
| DMX channel: |
10/18CH |
| Power interface: |
Neutrik PowerCon |
| -Cooling system |
| Cooling method: |
air cooled |
| Structure: |
60mm plug-in heat dissipation layer |
| Ventilation fan: |
60mm fan in* 2 , 60mm fan out* 2 |
| -Power consumption |
| Working power: |
110~250V AC 50/60HZ |
| Power consumption: |
Max 250W |
| -Physical parameters |
| Product size : |
13.97x11.02x13.77 inch / 35.5x28x35 cm |
| Product weight: |
7.38 Kg |
| Pack size: |
|
| Package weight: |
|
Control Model
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports voice control and automatic mode,
which can change freely according to the music and environment to bring more outstanding effects to the stage performance.

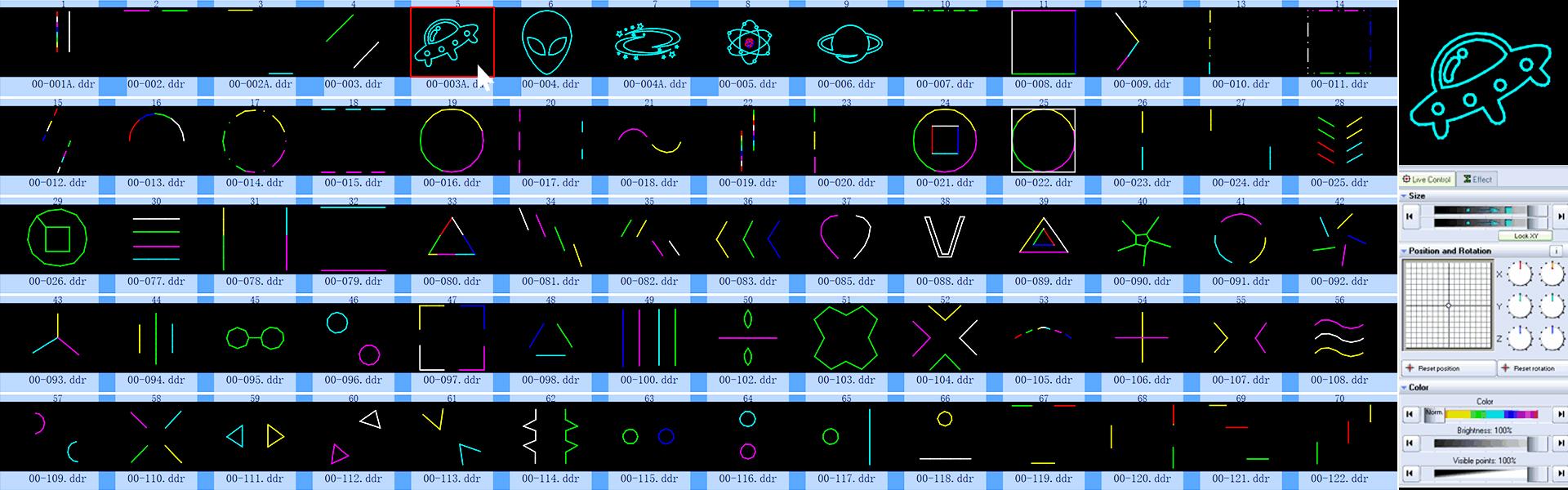

Laser Effect
It has a variety of patterns and animation effects,
supports automatic and voice-activated modes,
sharp and even light, and uses the best accessories and lasers.
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
