| Output signal specifications | DMX512 international standard |
| Total number of channels | 192 channels |
| Number of scanners | 24 scanner |
| Max. number of channels for the scanner | 8 |
| Number of chases(scenes) | 24 chase |
| Maximal number of chase steps(scene) | 40 steps |
| Total number of chase steps(scene) | 480 steps |
| Scene pause time | 0.1-25.5 second/step |
| Scene cross speed | 0.1-25.5 seconds |
| Dimmer channel | 24 channels |

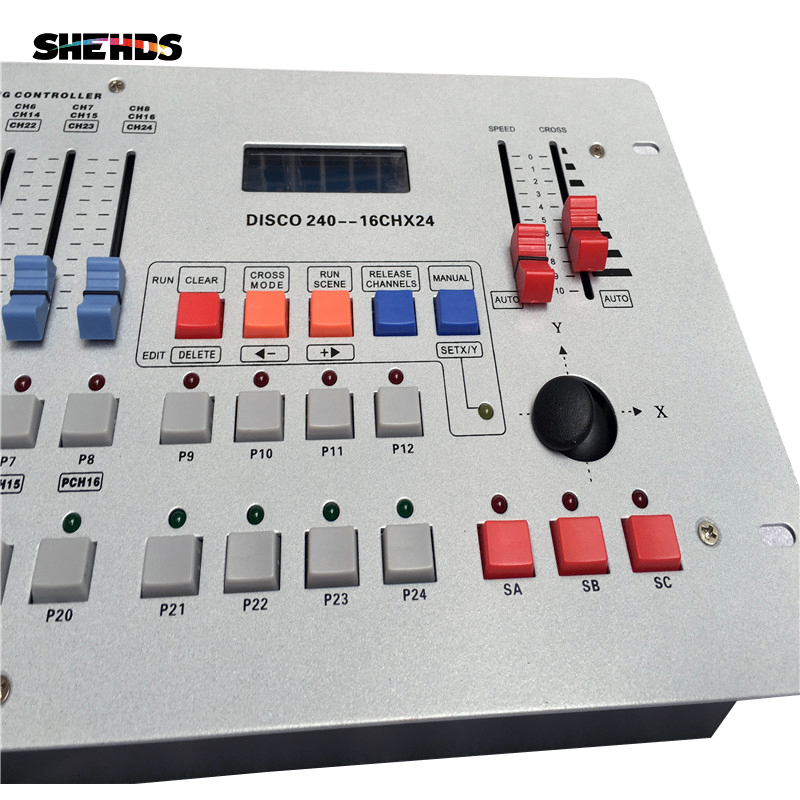

| Display screen | LCD display, 16×2 characters |

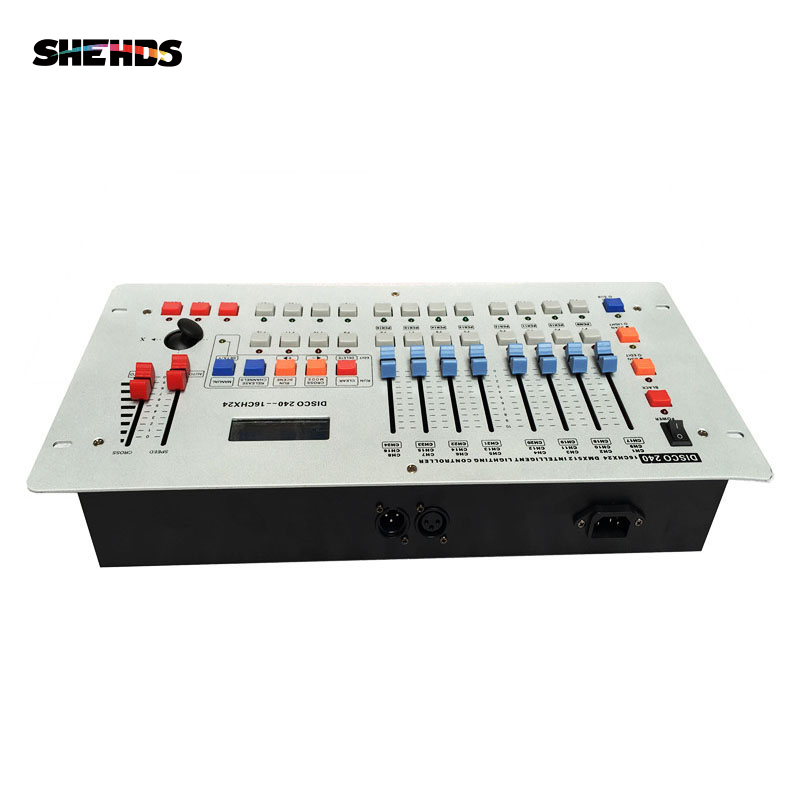

| DMX512 outputs interface | 3-core XLR pin socket and socket |
| Memory capacity | 128 K high capacity memory card |
| Input voltage | 50 / 60HZ—5V / 2000MA |
| Volume | 483mm×178mm×80mm |
| Weight | 3.25Kg |
