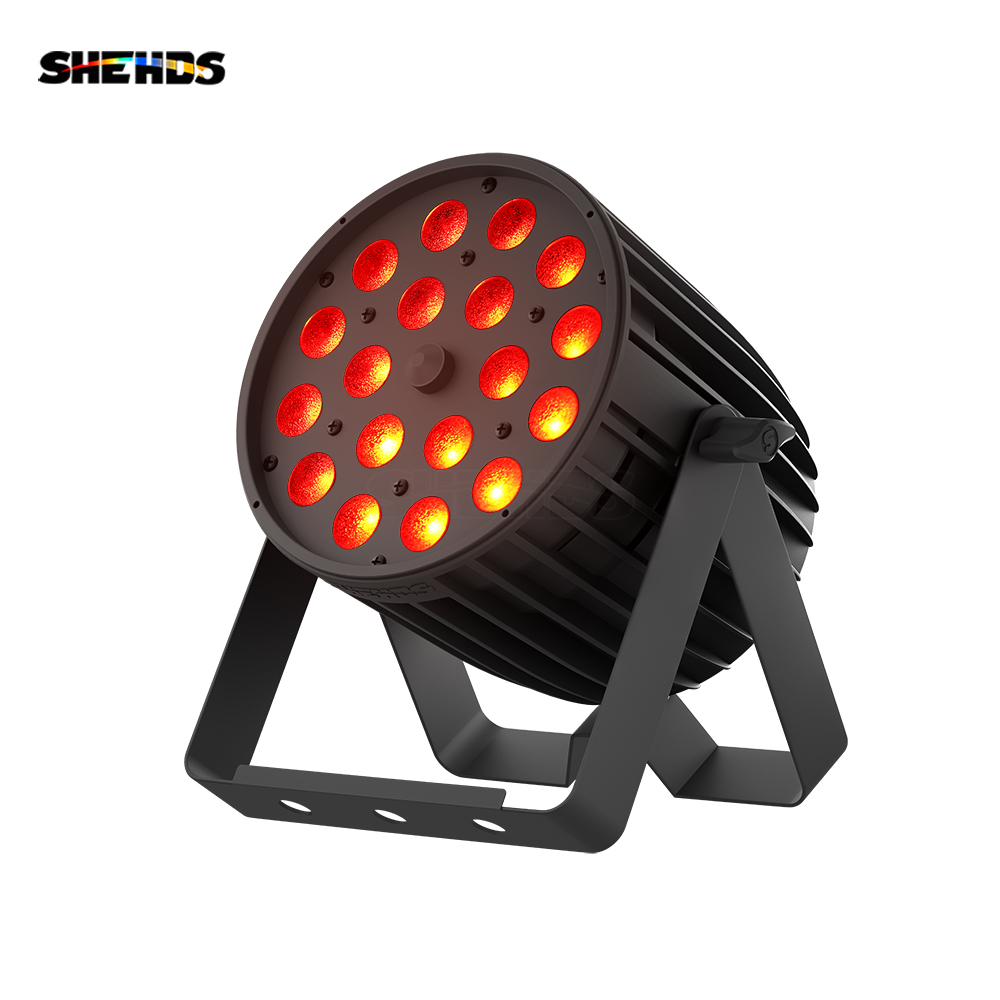

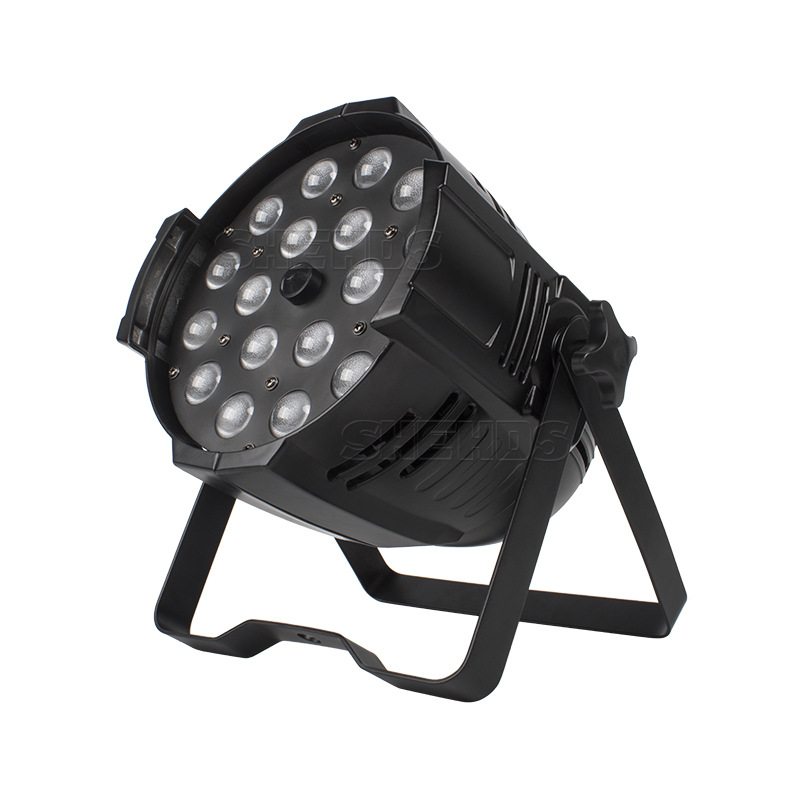

LED Zoom&Wash Par
18x18W RGBWA UV 6in1 Light
The light source consists of 18X18W RGBWA UV 6in1 LEDs,
Creates the most realistic stage scene environment,
Creates a strong visual impact for the performance.
Product Features
Dual modes are available, allowing the lights to dance to the music,
The lighting engineer can flexibly switch colors, angles, and lighting effects.
Technical Parameter
| Light source parameters |
| Dimmer: |
0-100% 16Bit mechanic |
| Light source: |
18X18W RGBWAUV 6in1 mixing |
| Beam Lux: |
128 Lux / 10m |
| Zoom angle: |
23~49° |
| Strobe: |
Flash rate 0-25Hz |
| Security System |
| Safety Item |
Overcurrentand voltage protection |
| Degree Of Protection |
IP20 |
| Operating Temperature |
-20℃~45℃ |
| Interface And Control System |
| Control Interface |
DMX In/Out |
| DMX Channel |
7/11 CH |
| Power Interface |
Neutrik PowerCon |
| Cooling System |
| Cooling Method |
Passive heat dissipation |
| Power Consumption |
| Working Power |
100-240V , AC 50/60Hz |
| Physical Parameters |
| Material: |
Die cast aluminum casing |

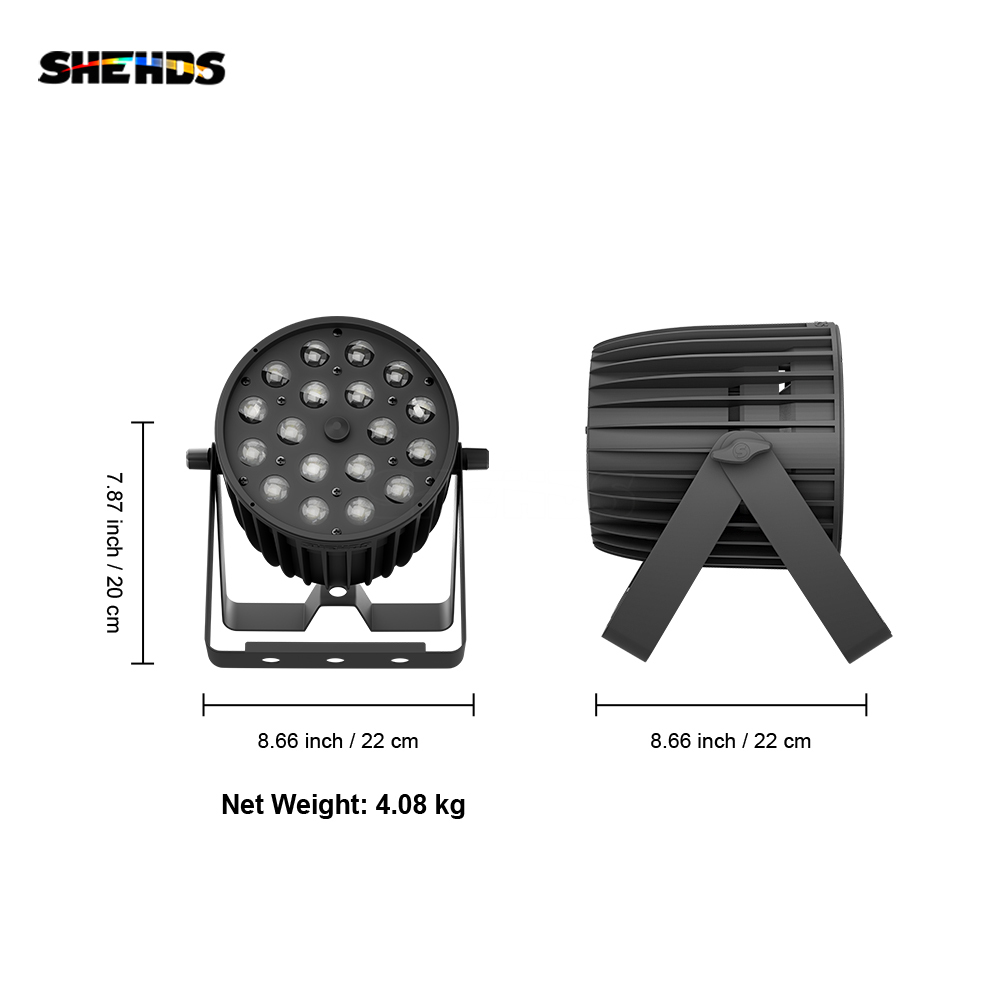

| Product Size |
22x22x22 cm / 8.66x8.66x8.66 inch |
| Product Weight |
4.08 kg |
| Package Size |
26X26X37 cm / 10.23x10.23x14.56 inch |
| Package Weight |
4.98 kg |
Beam Angle
Min 23°~ Max 49°
Optical Lens Display
New type of focusing and variable light lens module
Mirror body absorbs less heat energy, reduces scattering loss, and has high efficiency
Integrating Powerful Beam
And Wash Functions
A linear focusing system with a beam angle of 24 ~49 °, multiple speed strobe effects,
and a smooth dimming function of 0-100%,
Can produce a variety of dynamic psychedelic lighting effects,
fully adapting to different stage application needs.
Zoom Effect
Adjust lighting through the lens to enhance the atmosphere of the scene.
LED Light Source
Using ceramic substrate LED beads,
Has properties such as high temperature resistance, oxidation resistance, and corrosion resistance
So as to adapt to different lighting environments and customer needs..

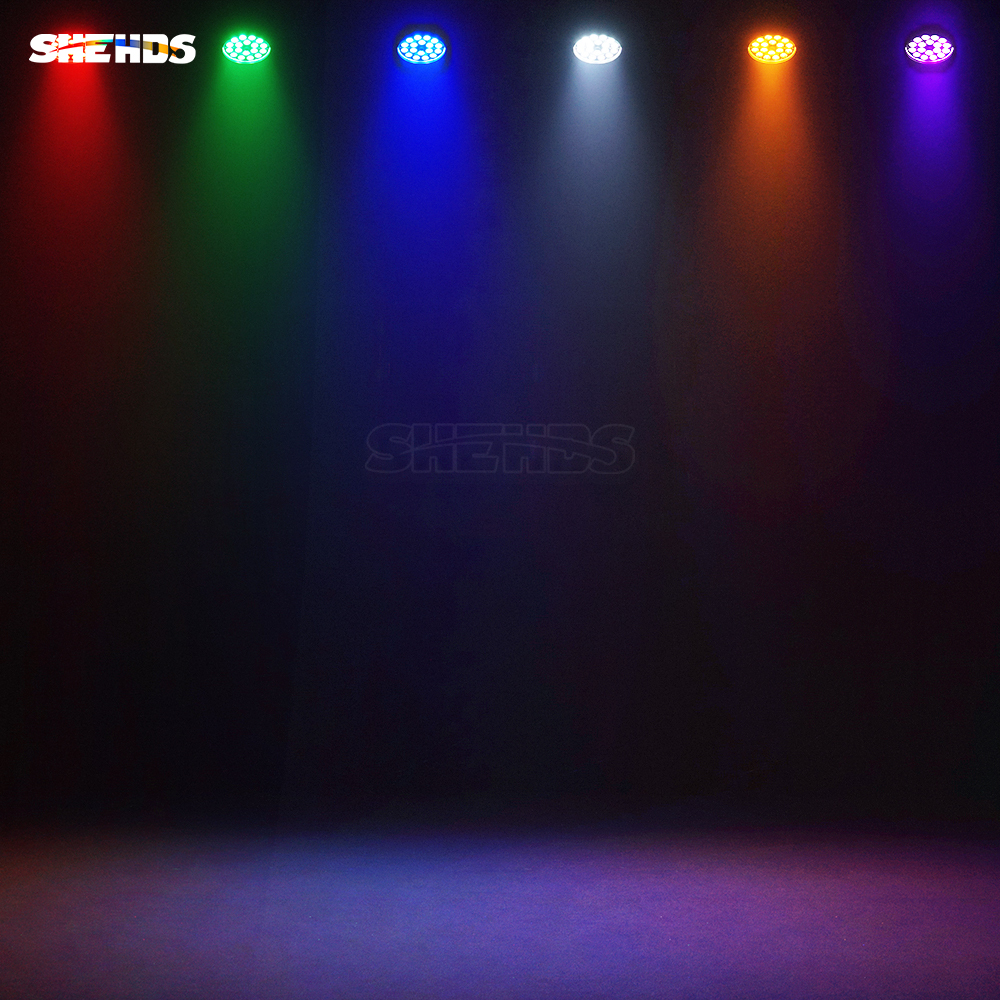

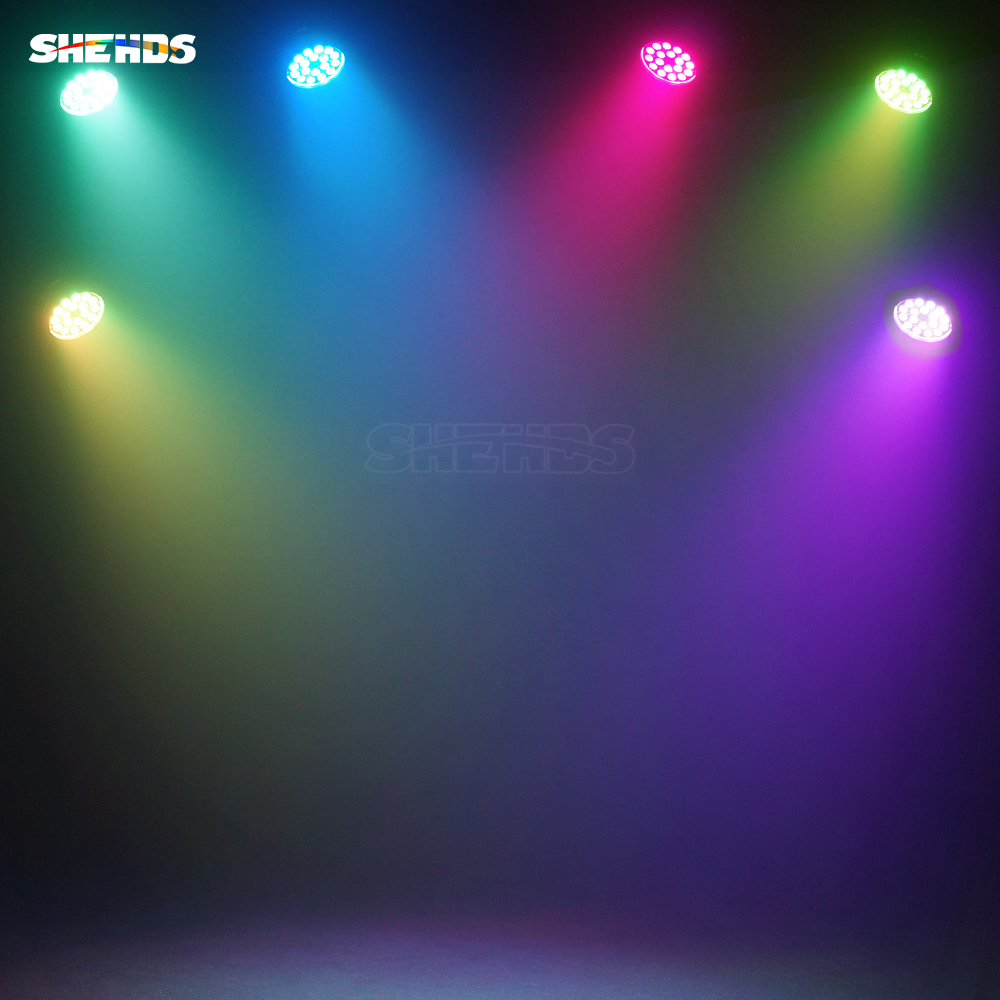

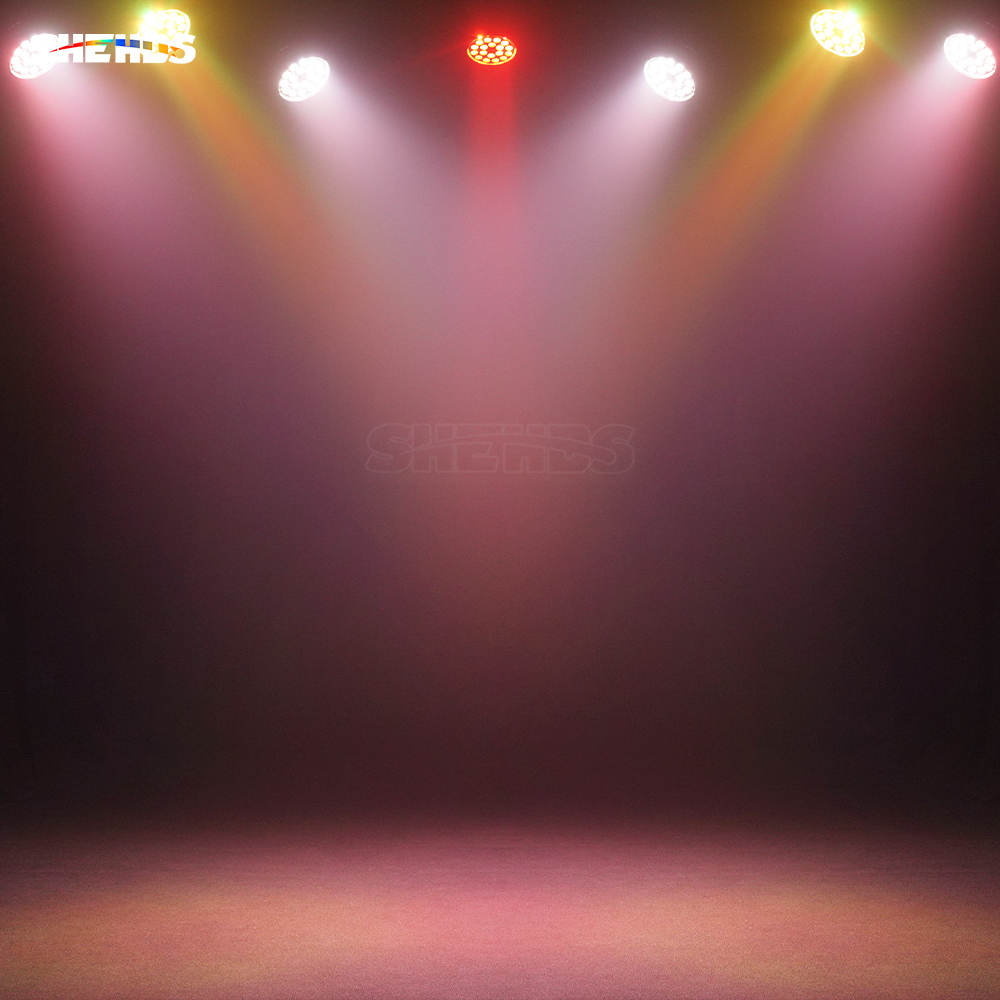

Applicable Scene
These lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
Split Heat Dissipation
Newly upgraded appearance, aluminum casing
aluminum shell, high strength, low density, lightweight, convenient to carry;
good corrosion resistance and less prone to rusting;
good heat dissipation and excellent thermal conductivity.

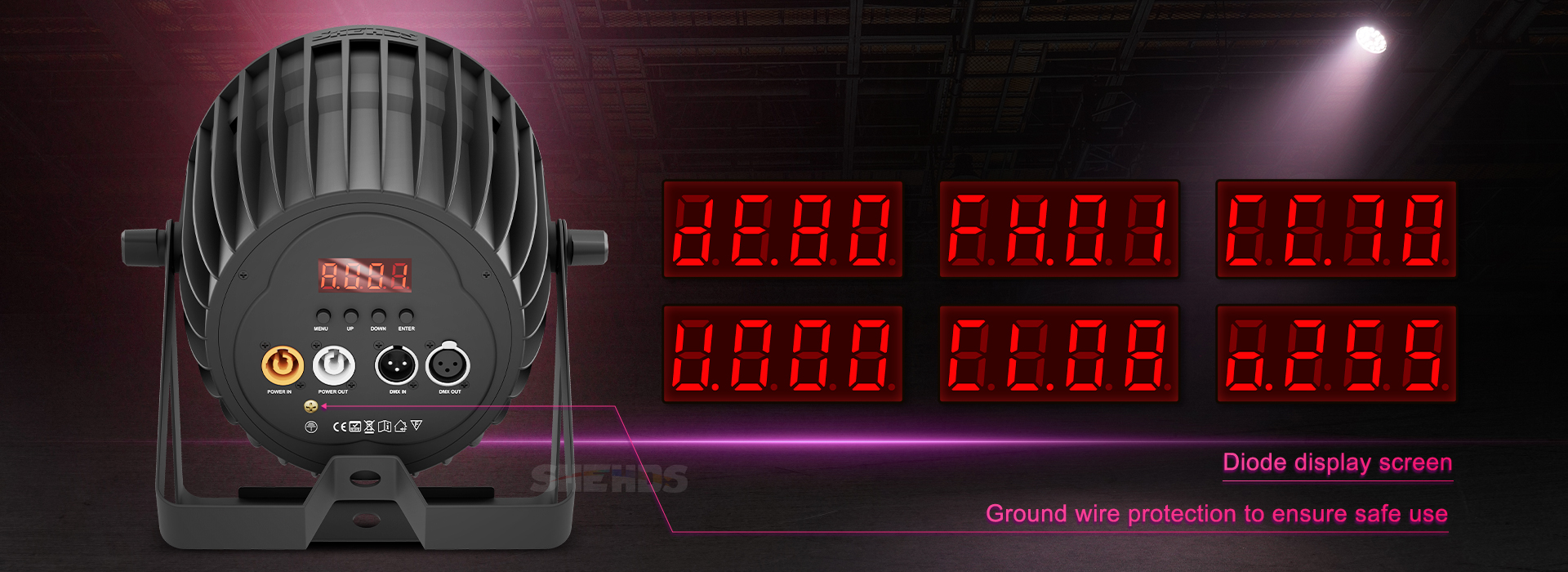

Introduction To Panel Functions
Diode display screen
Built in adjustable Sound Mode sensitivity value
New temperature control protection function added
New real-time temperature feedback function added
Foot Stand And Knob
Our tripods can provide excellent stability and safety.
The limit design can effectively prevent the tripod from slipping in unexpected situations,
ensuring that your device remains stable at all times.
Suspension Installation Structure
Inverted installation

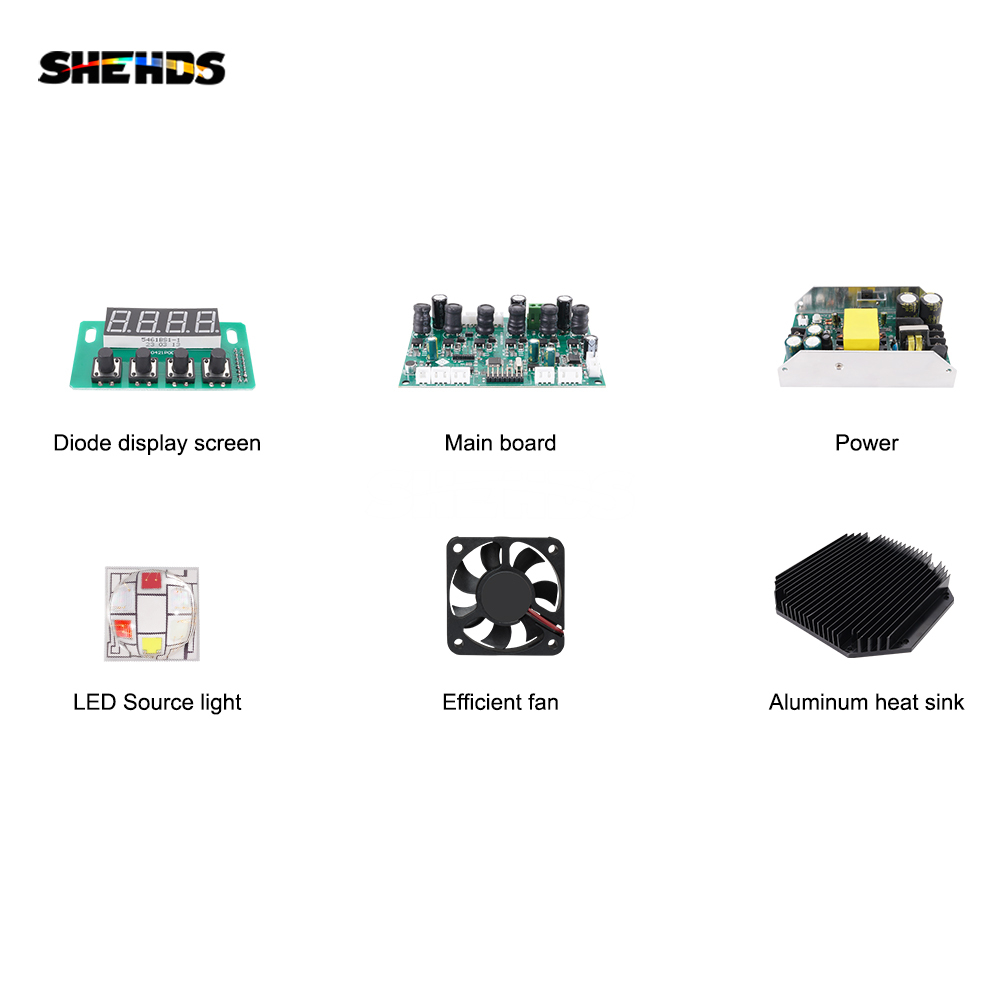

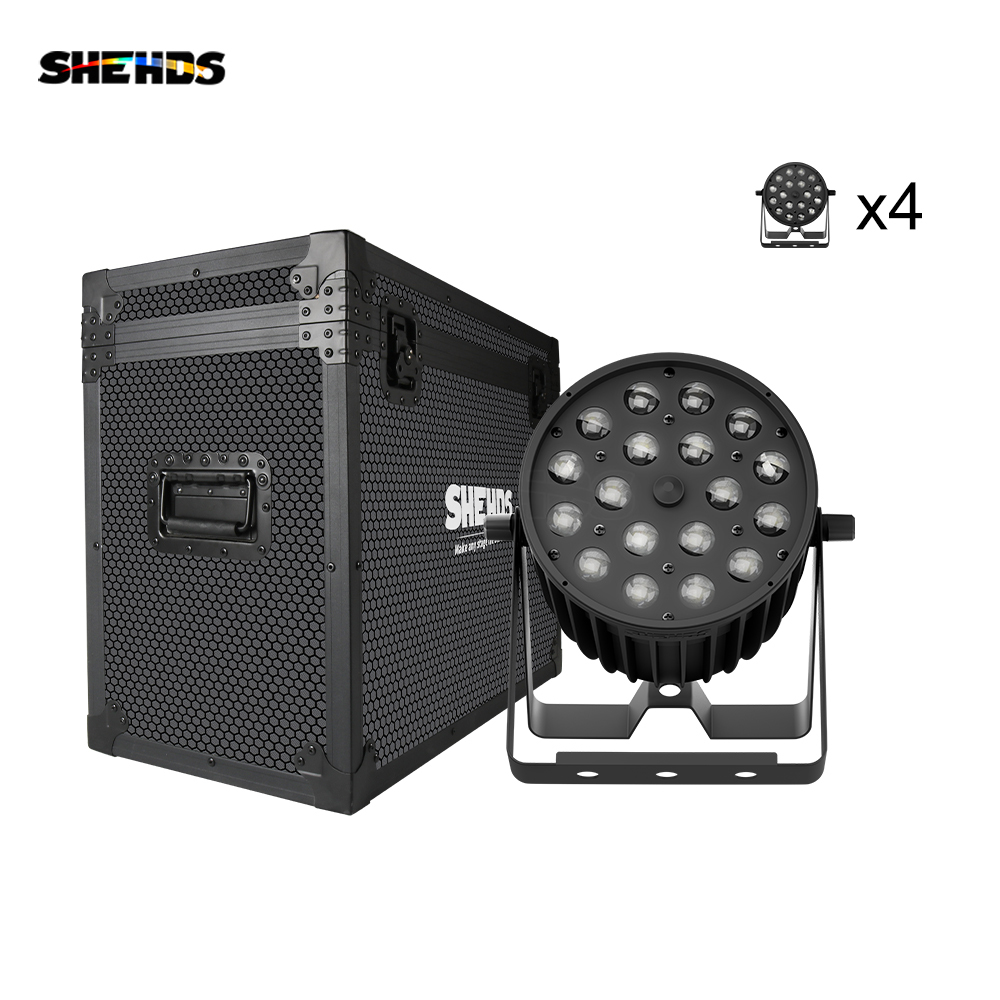

Carefully Select Excellent Accessories

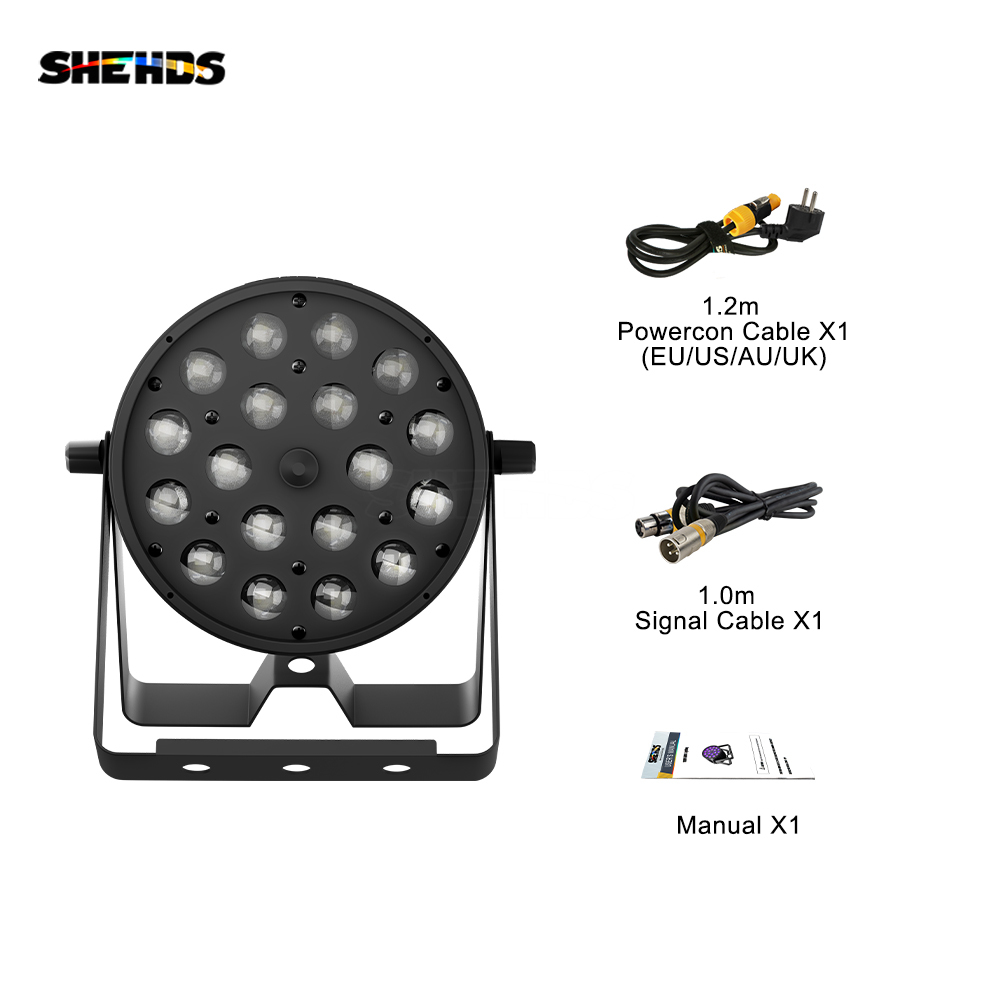

Packing List
Each process undergoes strict verification
Every part is carefully selected

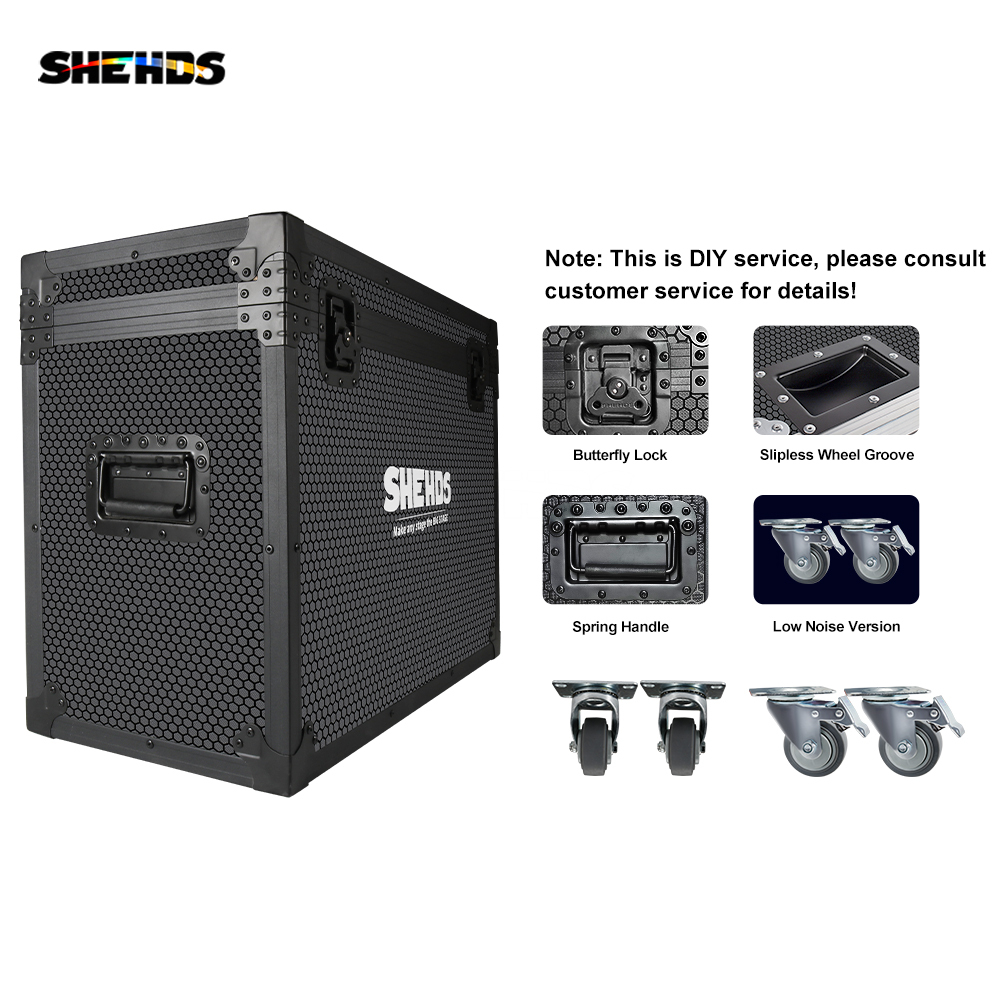

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
