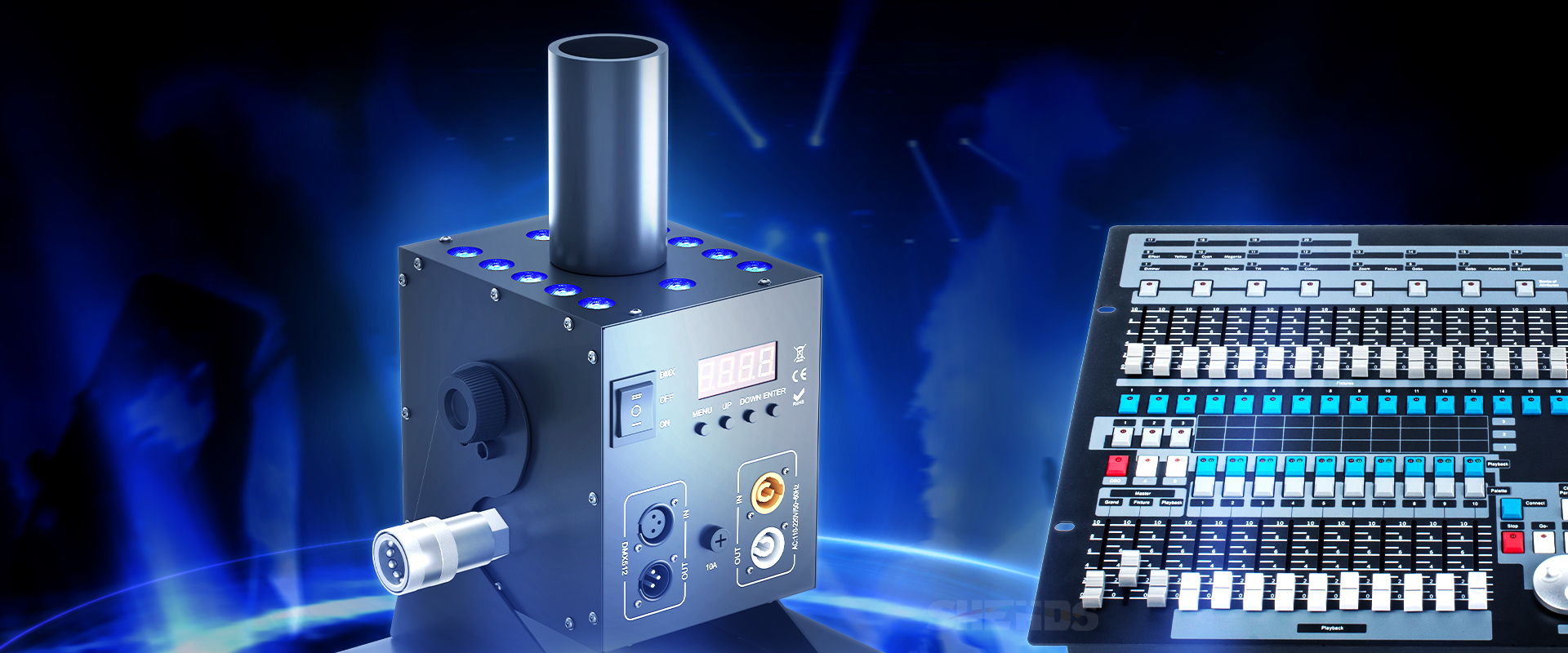

Carbon Dioxide Injector - LED 12x3W RGB 3in1
The carbon dioxide gas column machine adopts advanced gas compression technology,
which rapidly vaporizes liquid carbon dioxide and produces a large amount of gas,
forming a towering gas column with stunning effects.
Strictly designed according to safety standards, safe and reliable to use, avoiding harm to human health and the environment.
Product Features
Suitable for various stage performances and film and television shooting,
with strong adaptability and the ability to meet the needs of different scenes.
Applicable scenarios
High safety, avoiding harm to human body and environment, suitable for various occasions
Technical Parameter
| -Electrical Specification and Connections |
| Power Supply: |
150W Electronic Auto-Ranging |
| Input Voltage Range: |
100-240 V, 50/60 Hz |
| Power in Connector: |
Neutrik PowerCON |
| Signal input/output: |
3-pin XLR Head Socket |
| -Source |
| Light Source Type: |
LED 12x3W RGB 3in1 Color Mixing |
| LED Life Expectancy: |
20000 Hours |
| Dimmer: |
0~100% Linear Dimming |
| LED Feature： |
Auto Mode ,Sound Mode,Manual Programming Scenarios |
| -Optical System |
| Moving Head Range: |
Manual moving tilt：90° |
| Air Pressure: |
6MPA |
| Height of Ejection： |
5~6 m |
| Inlet Diameter: |
24 mm |
| Spray Caliber: |
45 mm |
| -Control and Programming |
| Protocols: |
DMX512 |
| Running Mode: |
DMX512 Mode, Manual Mode |
| DMX Channel Mode： |
5 CH |
| -Mechanical Specification |
| Housing : |
High Strength Aluminum Alloy Body |
| Heat Dissipation Method: |
Overheat Protection, Efficient Heat Dissipation System |
| Product Zize： |
9.4*7.8*13.3 inch / 24*20*34 cm |
| Product Weight: |
7.5 kg |
| Package Size: |
11.8*11.8*14.9 inch / 30*30*38 cm |
| Package Weight: |
10 kg |
| Ingress Protection Rating: |
IP20 |
Spraying Distance
The height and shape of the carbon dioxide gas column machine can be adjusted
as needed to achieve the best visual effect
Manual 90 Degree Adjustable Spray Angle
Manually adjustable 90 ° steering injection
Flexible Installation
Supports ground standing or hanging installation methods,
with a large-area aluminum alloy base
Spray Method
Supports DMX512 mode and manual control mode of injection methods
Special Effect Light Source
Equipped with 12x3W LED RGB light sources,
supporting DMX512 control and panel manual brightness and color control
Control Interface and Power Interface
DMX512 and power input/output interface, supporting master-slave series mode
Product Body Shell
Adopting high-strength aluminum alloy body shell, practical, safe and reliable
Introduction to Panel Functions
Contains multiple interactive function programs to visually display the operating status
and mode of the lighting fixtures
Built-in lamp operation status sensing and monitoring system,
which can check the operation status of the lamp at any time for easy parameter adjustment
Regarding usage matters
Adopting internationally recognized cylinder specifications
Packing List
Each process undergoes strict verification
Every part is carefully selected
Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
