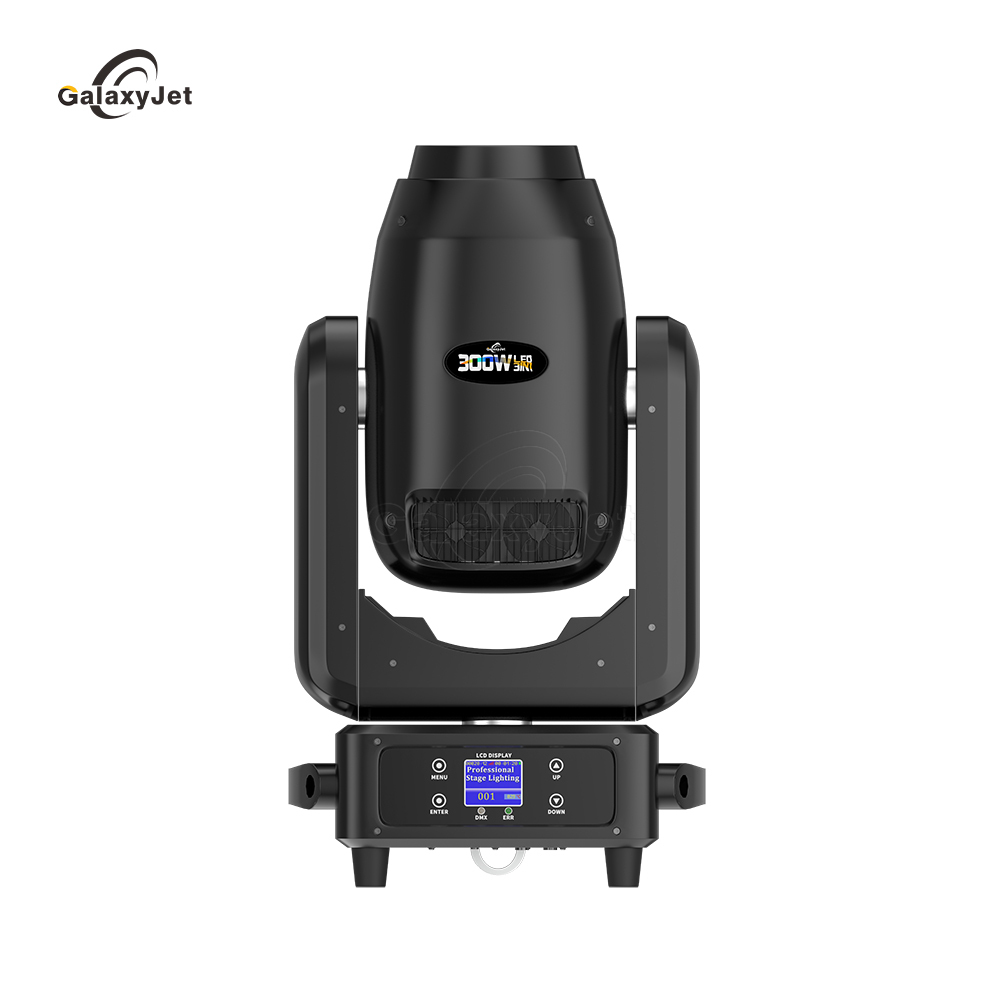

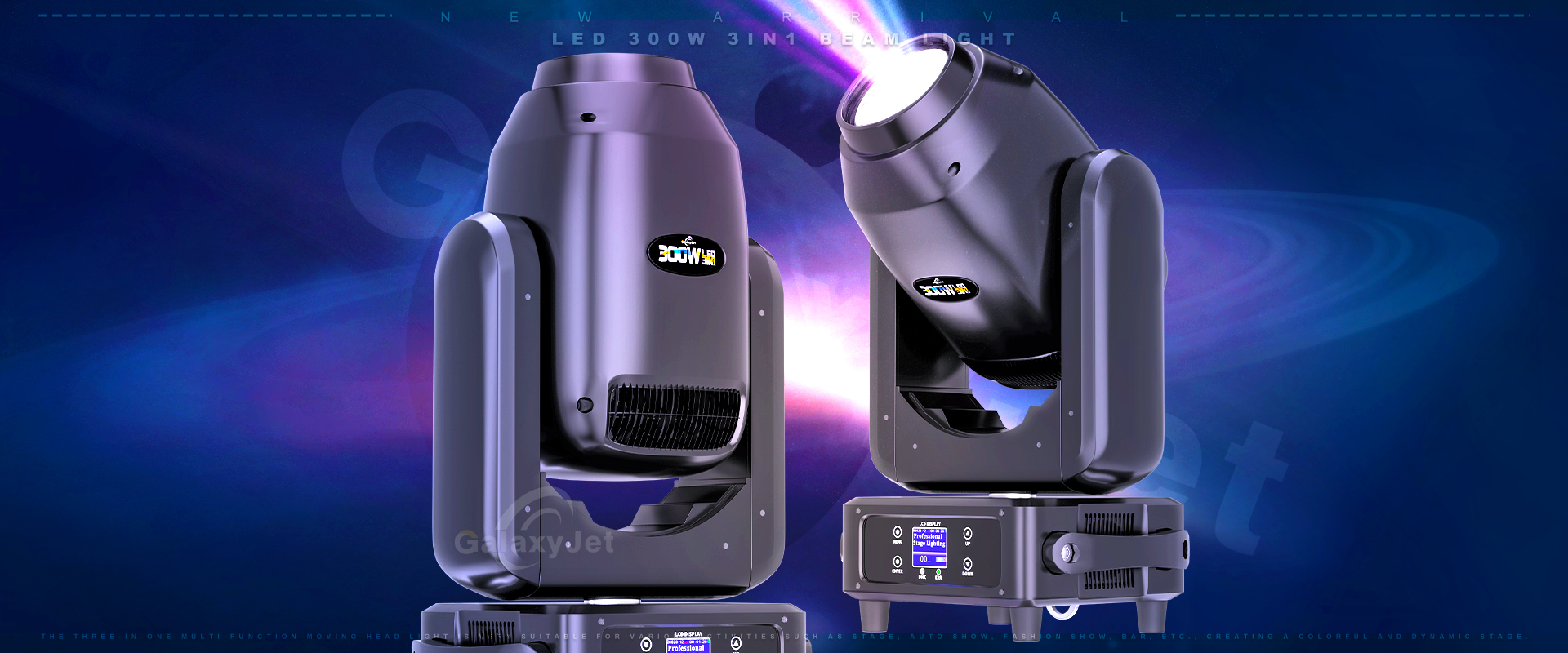

LED 300W 3IN1 BEAM LIGHT
LED 300W 3in1 beam moving head lighting,
Integrating light beam, gobo, and wash functions, it inspires you with more creative ideas!
The three-in-one multi-function moving head light is very suitable for various activities such as stage,
auto show, fashion show, bar, etc., creating a colorful and dynamic stage.
It is another professional choice for lighting designers!
Product Features
Flexibly shaping uniform and colorful pattern effects, effortlessly showcasing exciting and colorful illusion lighting effects.
Uniform color mixing and excellent color reproduction can create a dazzling stage light and shadow visual experience,
Improve the level of stage performance in all aspects, providing high-quality choices
for various professional performance venues such as concerts, bars, evening parties, roadshows, etc.
User's Manual:300W 3in1
Library File:300W 3in1
Technical Parameter
| -Electrical specification and connections |
| Power supply: |
450W Electronic auto-ranging |
| Input voltage range: |
100~240 V, 50/60 Hz |
| Power in connector: |
Neutrik PowerCON |
| -Source |
| Light source type: |
300W LED |
| Colour temperature output: |
7000±500 K |
| 10m/20m 3.5° Illuminance: |
7435 lux @ 10m / 1920 lux @20m |
| 10m/20m 38° Illuminance: |
588 lux@10m / 190 lux @20m |
| Life expectancy: |
min. 2000 hours |
| -Optical system |
| Beam angle: |
Beam 3.5°- Frost 38° |
| Dimmer: |
Linear 0~100% dimming |
| Lens diameter: |
97mm |
| -Dynamic Effects and Features |

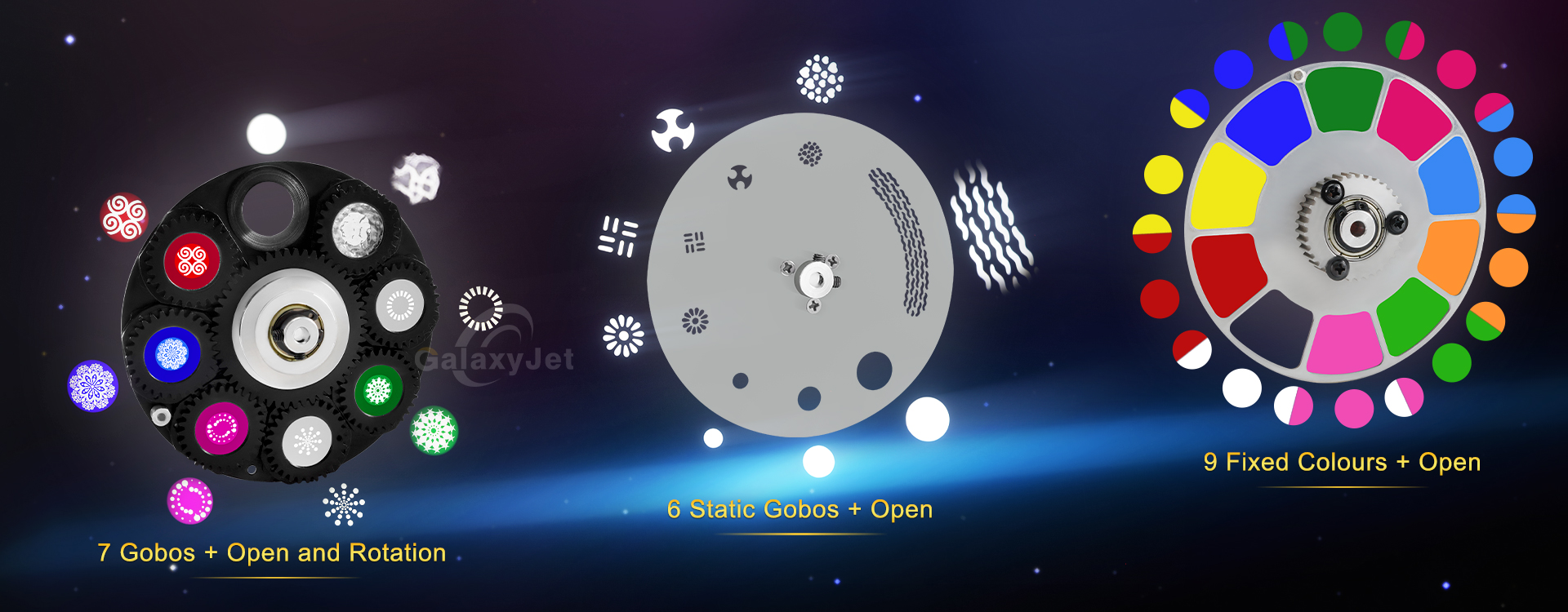

| Colour wheel : |
9 fixed colours + open |
| Gobo wheel 1: |
6 static gobos + open |
| Gobo wheel 2: |
7 gobos + open and rotation |
| Prism: |
8-facet prism rotating in both directions at variable speed |
| Frosts: |
Fast change frosts for instant softening of the projected gobo or framing shutters |
| -Control and programming |
| Protocols: |
DMX512,RDM |
| DMX Channel Mode： |
19 CH; |
| Feature： |
Auto mode ,Sound mode,Manual programming scenarios |
| -Mechanical specification |
| Housing : |
High temperature resistant and flame retardant plastic housing |

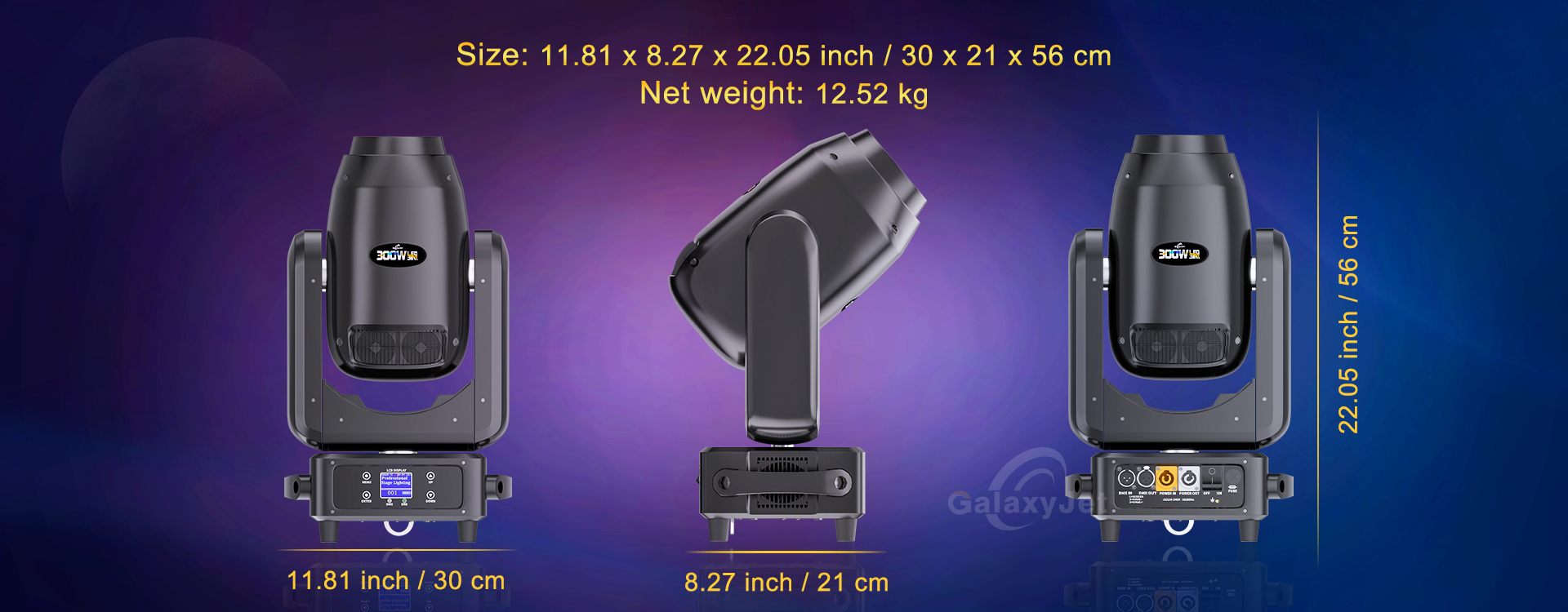

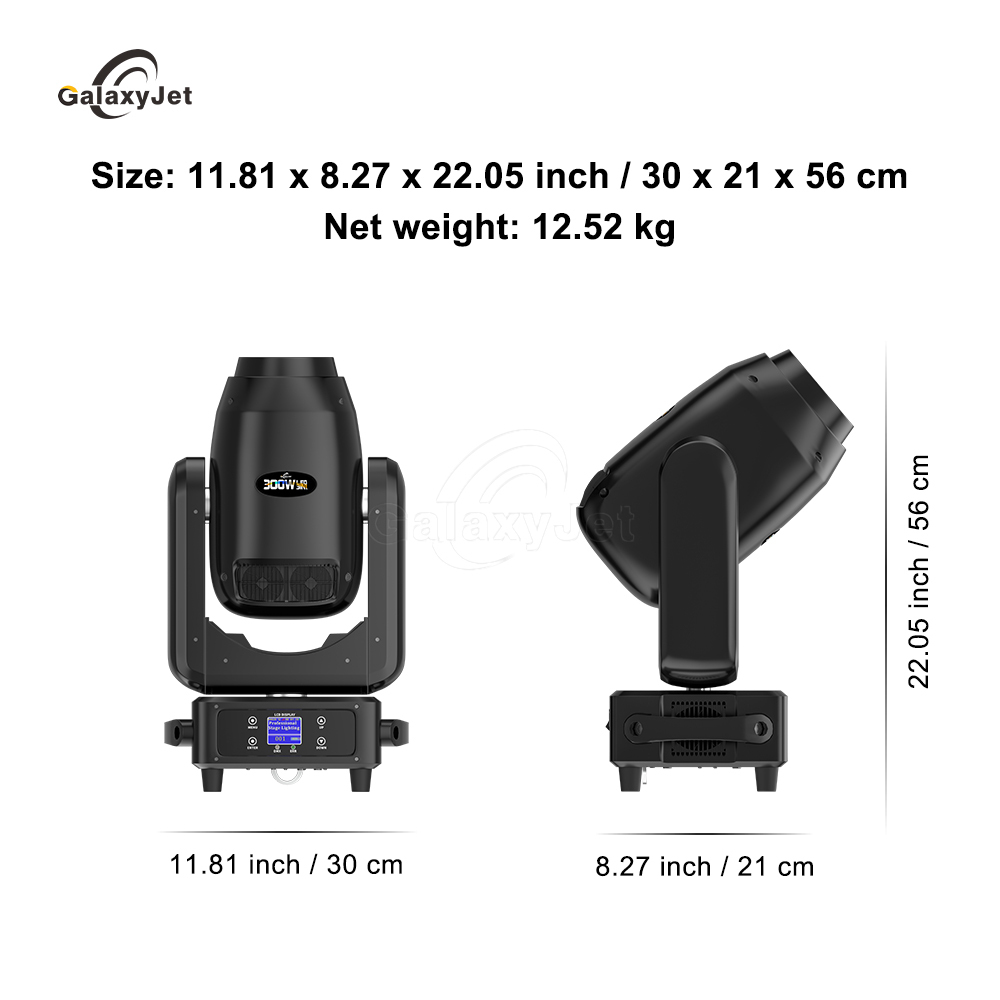

| Product size： |
11.81 x 8.27 x 22.05 inch / 30 x 21 x 56 cm |
| Product weight: |
12.52 kg |
| Package size: |
21.85 x 15.95 x 16.14 inch / 55.5 x 40.5 x 41 cm |
| Package weight: |
15.25 kg |
| Operating temperature: |
-20~60℃ |
| Ingress protection rating: |
IP20 |

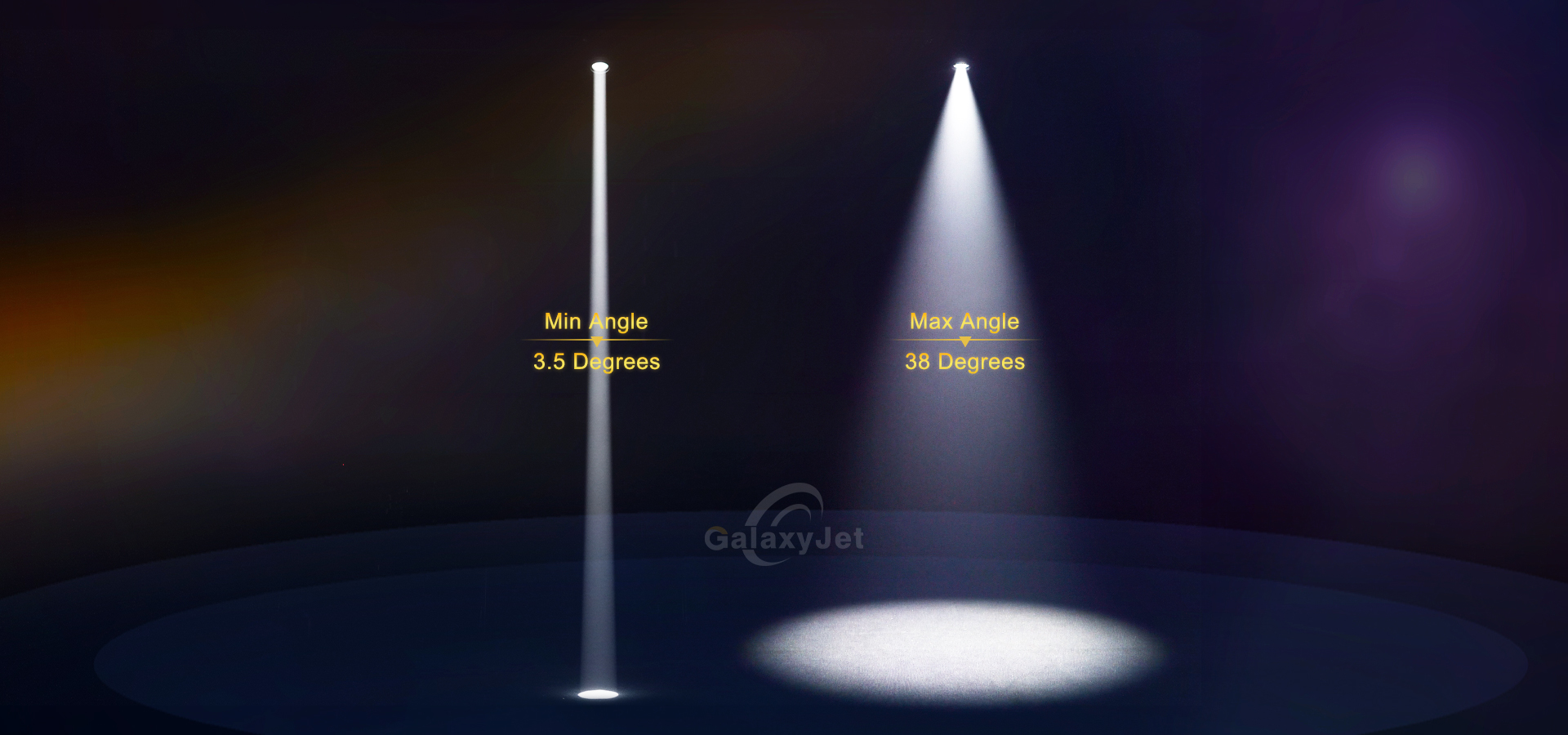

Beam Angle
3.5 ° min angle - 38°max angle
Effect Show
Colors Effect
3in1 Effect
It has the effect of combining beam, wash, and gobos,
and can create various visual effects
and render various atmospheres and emotions by adjusting different parameters
such as color, brightness, and direction.
Prism Effect
Bright And Colorful
Frost Effect
Rendering the Stage Atmosphere
Beam Effect
Uniform and colorful pattern effects with uniform light spots

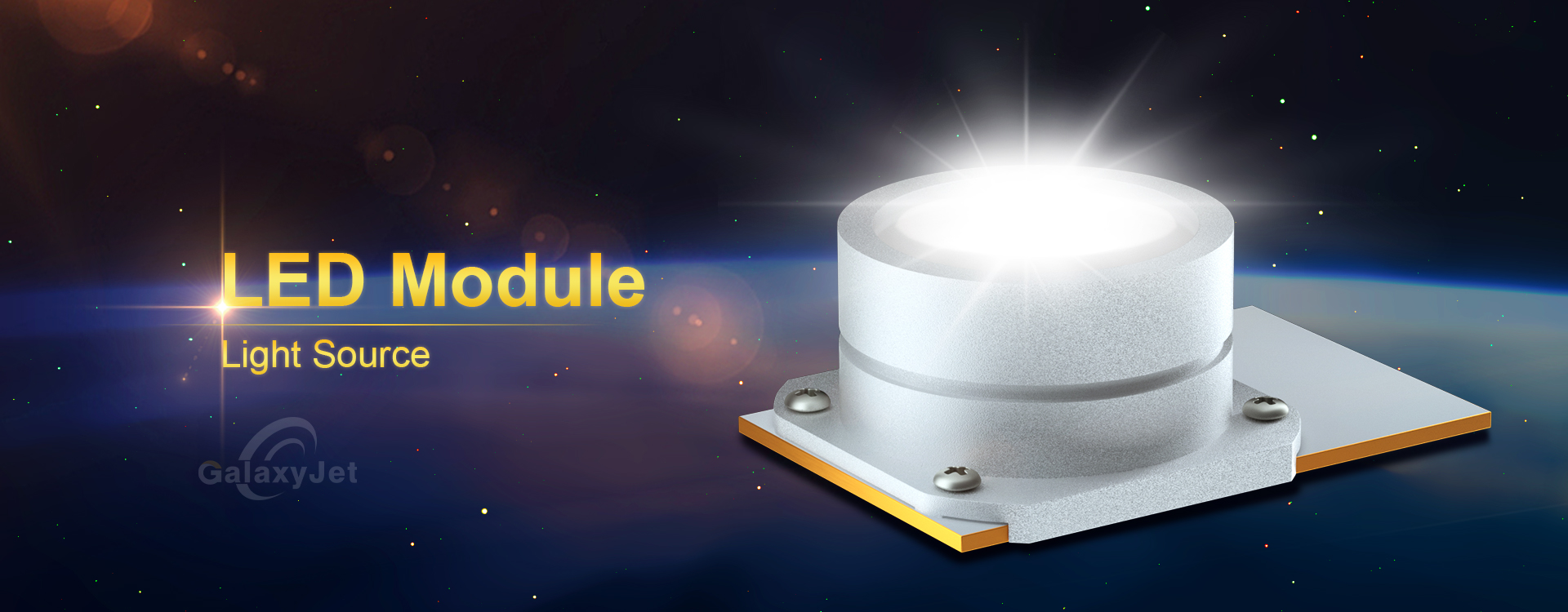

LED Module Light Source
High brightness light source, uniform condensing lens,
perfectly integrates beam, wash, and gobos effects.

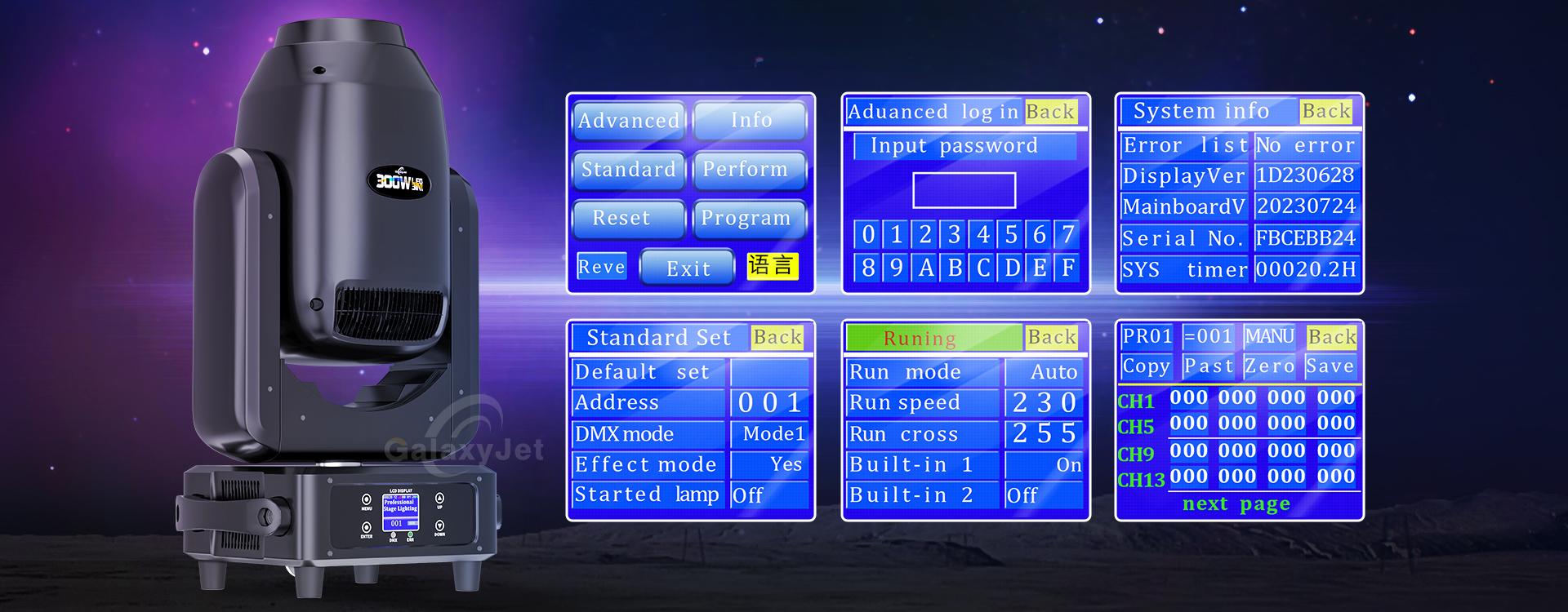

Introduction to Panel Functions
Contains multiple interactive function programs to visually display the operating status and mode of the lighting fixtures,
Built-in lamp operation status sensing and monitoring system,
which can check the operation status of the lamp at any time for easy parameter adjustment
100mm Optical Coated Large Lens
More powerful and spectacular beam of light,
The pattern is clearer and more natural,New Process Technology for Colorful Coating
Function Introduction

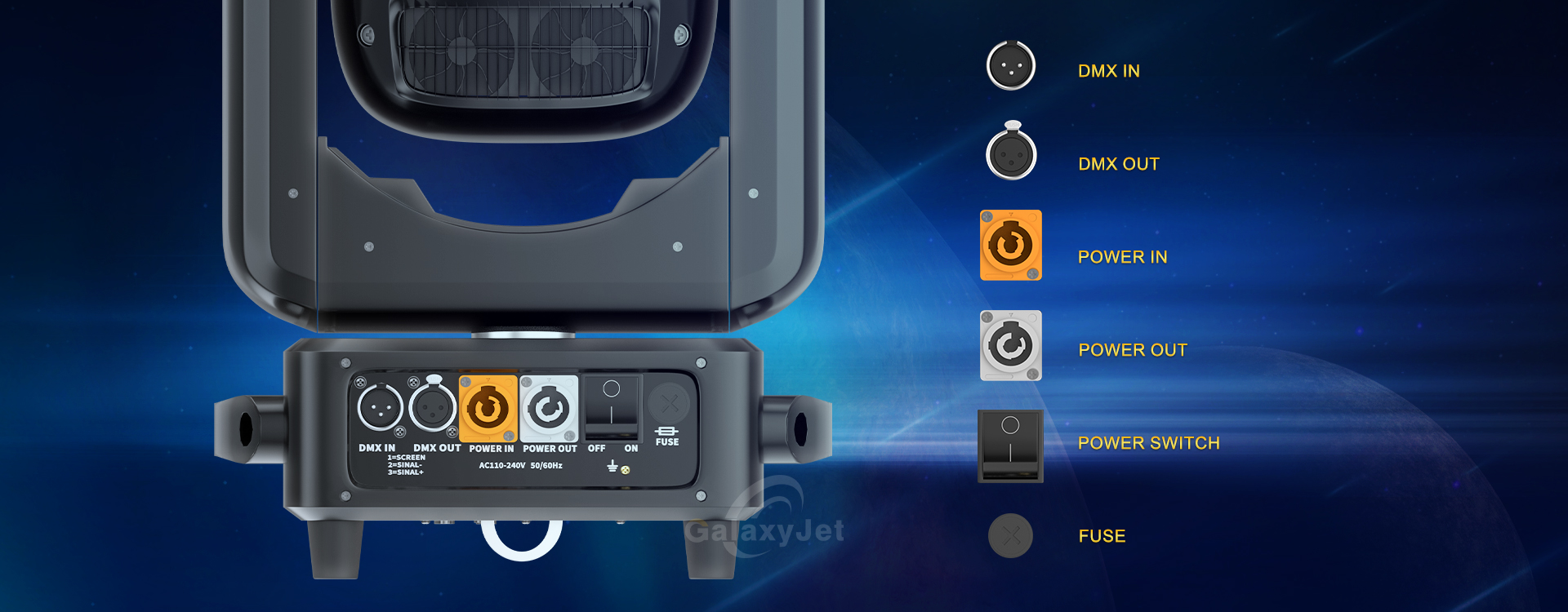

DMX512 signal/power cord interface

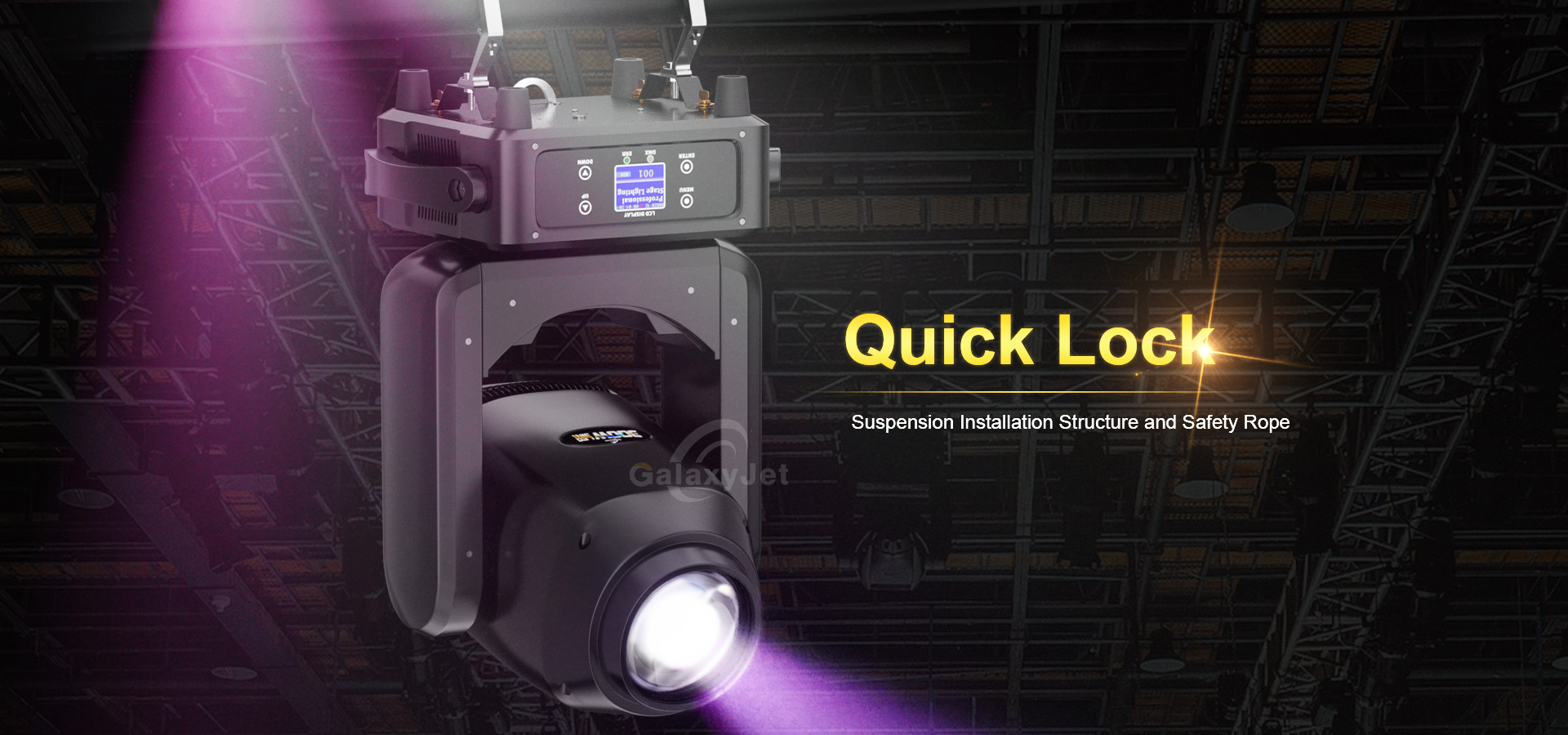

Suspension Installation Structure
Reserved safety rope position and quick lock installation

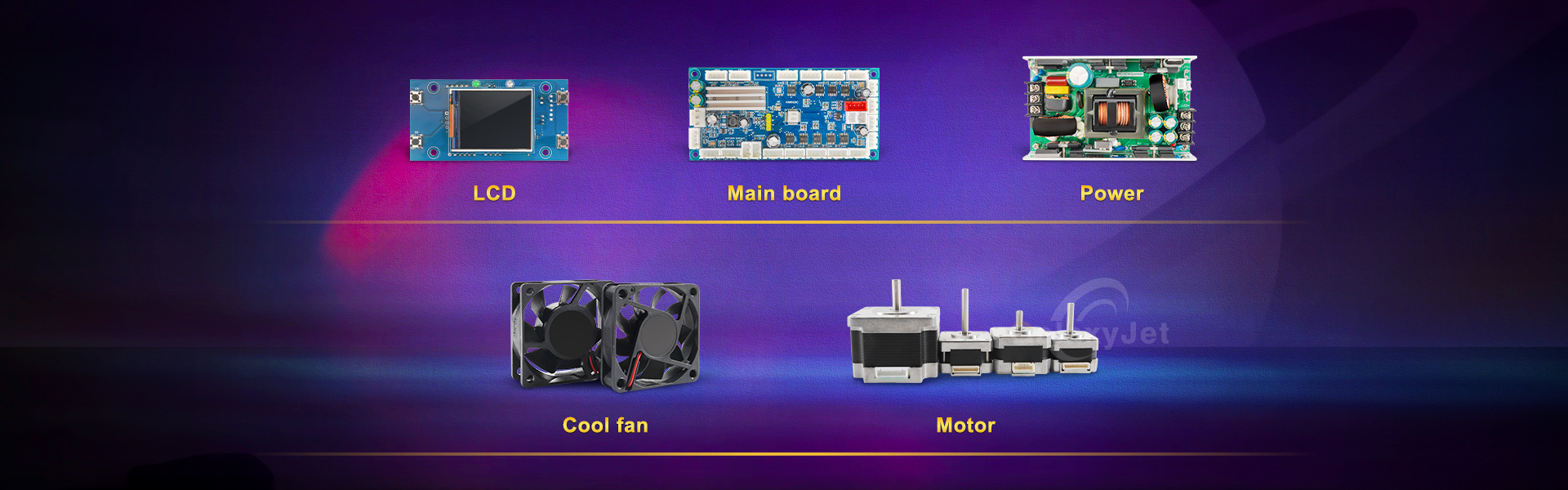

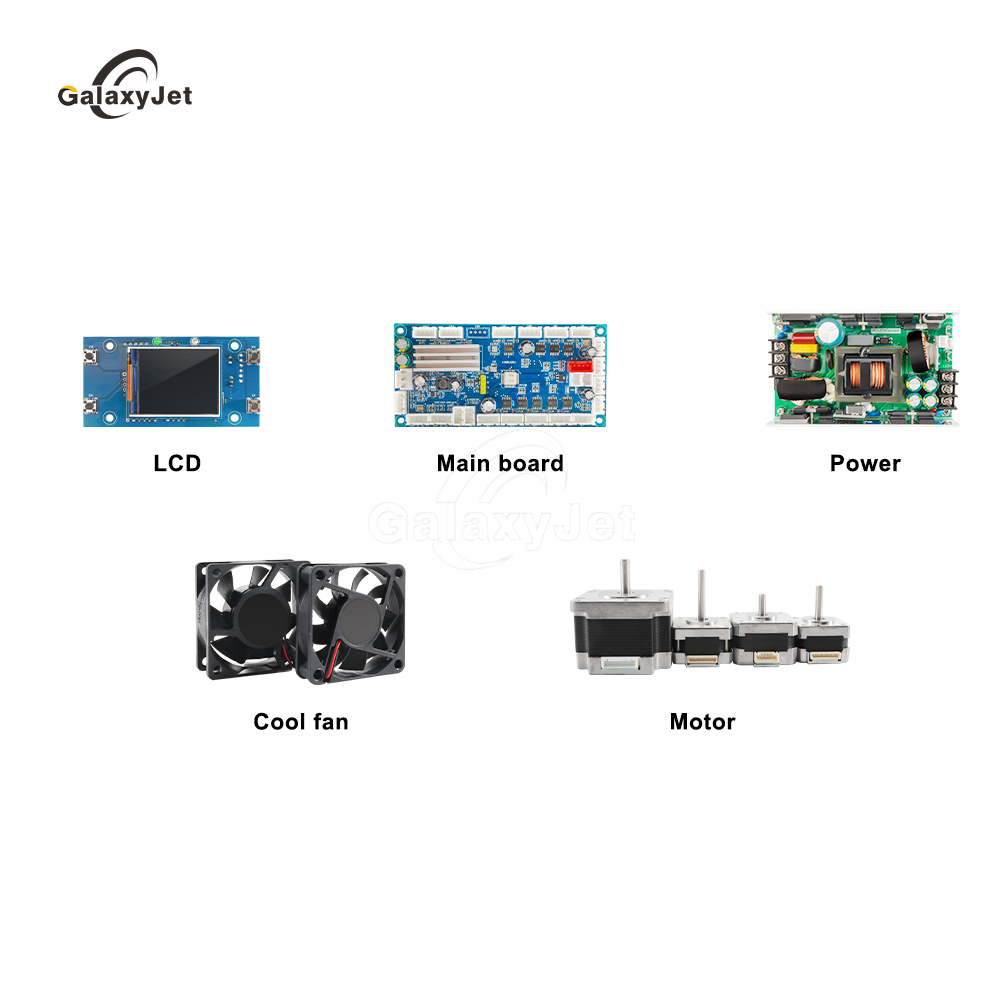

Carefully Select Excellent Accessories

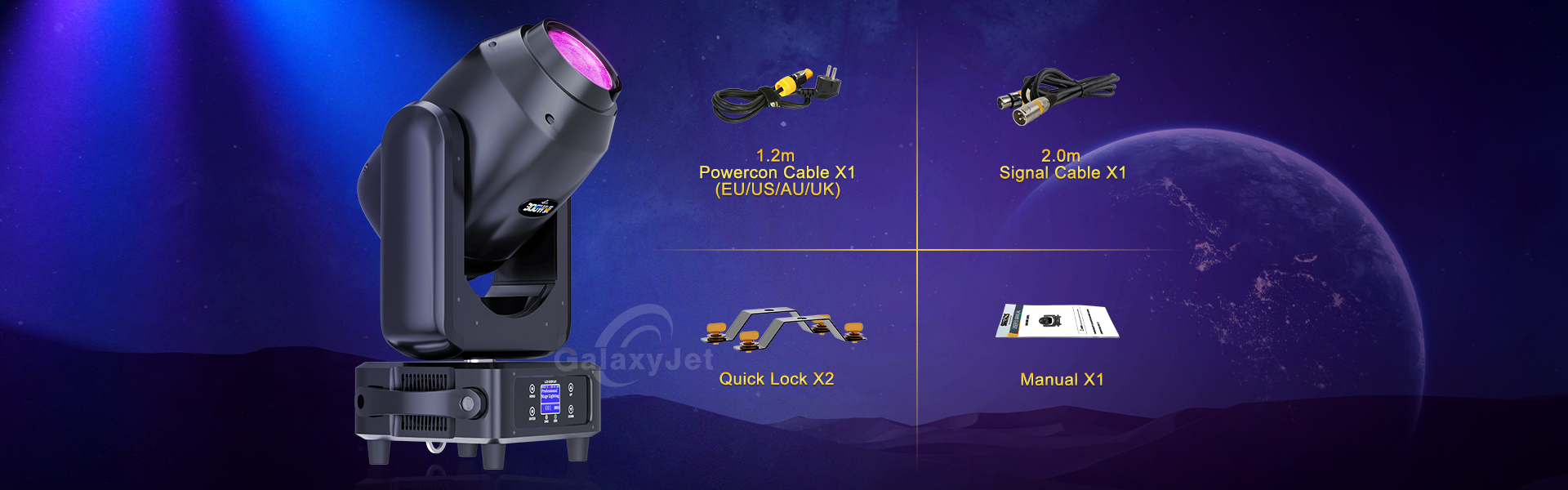

Packing List
Each process undergoes strict verification
Every part is carefully selected

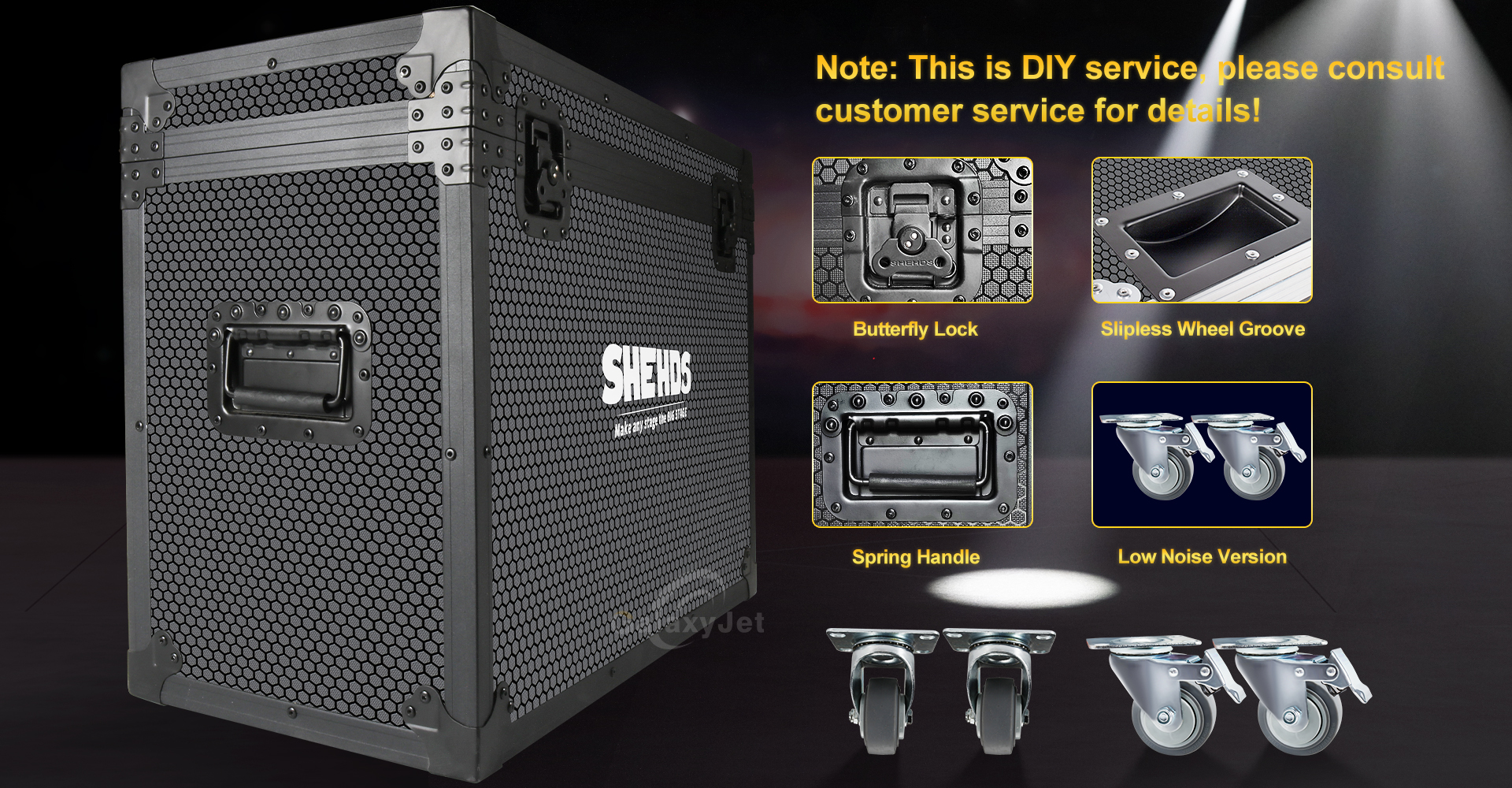

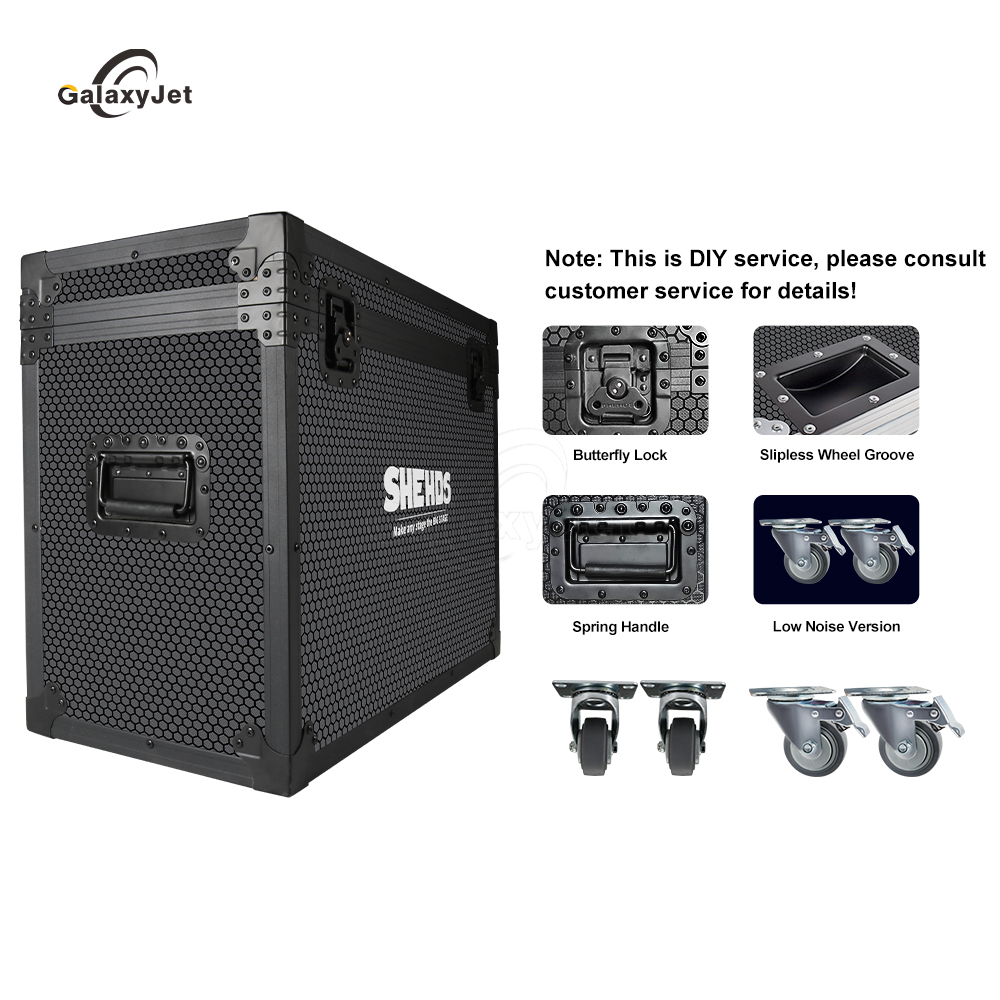

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
