12W RGB Animation Laser Light
IP65 waterproof type
High-frequency scanning pattern laser
Professional stage equipment
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
Waterproof effect
Waterproof IP65 is suitable for rainy days and can display various lighting effects outdoors
Waterproof rubber cover
The waterproof rubber cover uses silicone as the raw material and has waterproof and dustproof functions
Suitable for outdoor scenarios
The waterproof rubber cover uses silicone as the raw material and has waterproof and dustproof functions
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.
Technical Parameter
| -Light source parameters |
| Laser wavelength: |
R-638nm, G-520nm, B-450nm |
| Spot size (laser window spot): |
5.5mm |
| Light source divergence angle : |
＜1.2mrad |
| Modulation mode: |
0~5V analog, up to 50khz/TTL |
| Laser class: |
Class IV |
| -Imaging system |
| Imaging color: |
Red, Green, Blue, Yellow, Purple, Cyan, White mixed colors |
| Evenness: |
>98% |
| Lens Horizontal Offset: |
-30% to +30% |
| Lens Vertical Offset:: |
-30% to +30% |
| Imaging mode: |
3D/2D pattern and animation (with software) |
| Projection distance: |
＜100M The best distance is 18~60M |
| Playback rate: |
25 KPPS |
| Playback angle: |
Max60° |
| -Security system |
| Safety standard: |
Follow the IEC60825 standard |
| Safety item: |
Overcurrentand voltage protection |
| Degree of protection: |
IP65 |
| Operating temperature: |
15℃~45℃ |
| -Interface and Control System |
| Control interface: |
DMX In/Out ,RJ45 In/Out |
| DMX channel: |
10/18CH |
| Power interface: |
Neutrik PowerCon |
| -Cooling system |
| Cooling method: |
Air cooled and thickened passive heat dissipation module |
| Structure: |
60mm plug-in heat dissipation layer |
| -Power consumption |
| Working power: |
100~240V AC 50/60HZ |
| Power consumption: |
Max 150W |
| -Physical parameters |

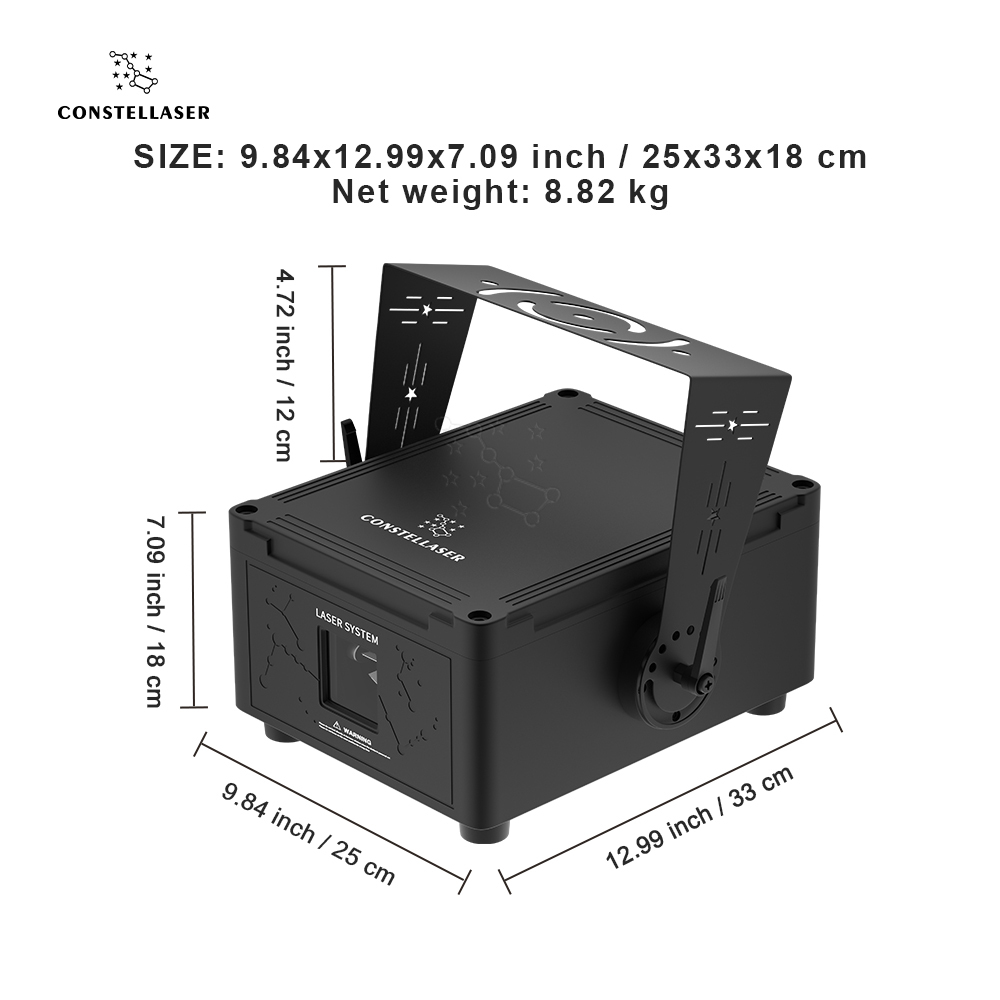

| Product size : |
9.84x12.99x7.09 inch / 25x33x18 cm |
| Product weight: |
8.82 Kg |
| Pack size: |
14.17x14.96x8.27 inch / 36x38x21 cm |
| Package weight: |
10.5 Kg |
Touch screen menu
5 auto modes, 5 sound control modes customizable animation speeds
RJ45 Ultra Long Range Fast Track
The RJ45 network cable interface can help you quickly and stably transmit optical signals,
Can be switched to the ILDA signal protocol,
as well as provide you with broader data transmission space
and more efficient signal transmission speed, making your stage lighting, stage lighting,
and theater more eye-catching.
Control Mode
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effec ts to the stage performance.
Adopting high-quality RGB Laser source
Possess colorful colors
Laser Effect
It has a variety of patterns and animation effects, supports automatic and voice-activated modes,
sharp and even light, and uses the best accessories and lasers.
High Speed Galvanometer
25 KPPS with high precision
The high-frequency scanning technology ensures a smooth and seamless display of laser patterns,
with sharp and precise movements that are sure to captivate any audience.
The Northern Lights Canopy Effects
Presenting a dreamy and colorful visual effect similar to the aurora
Multiple Pattern Effects
Partial pattern display, more pattern effects waiting for you

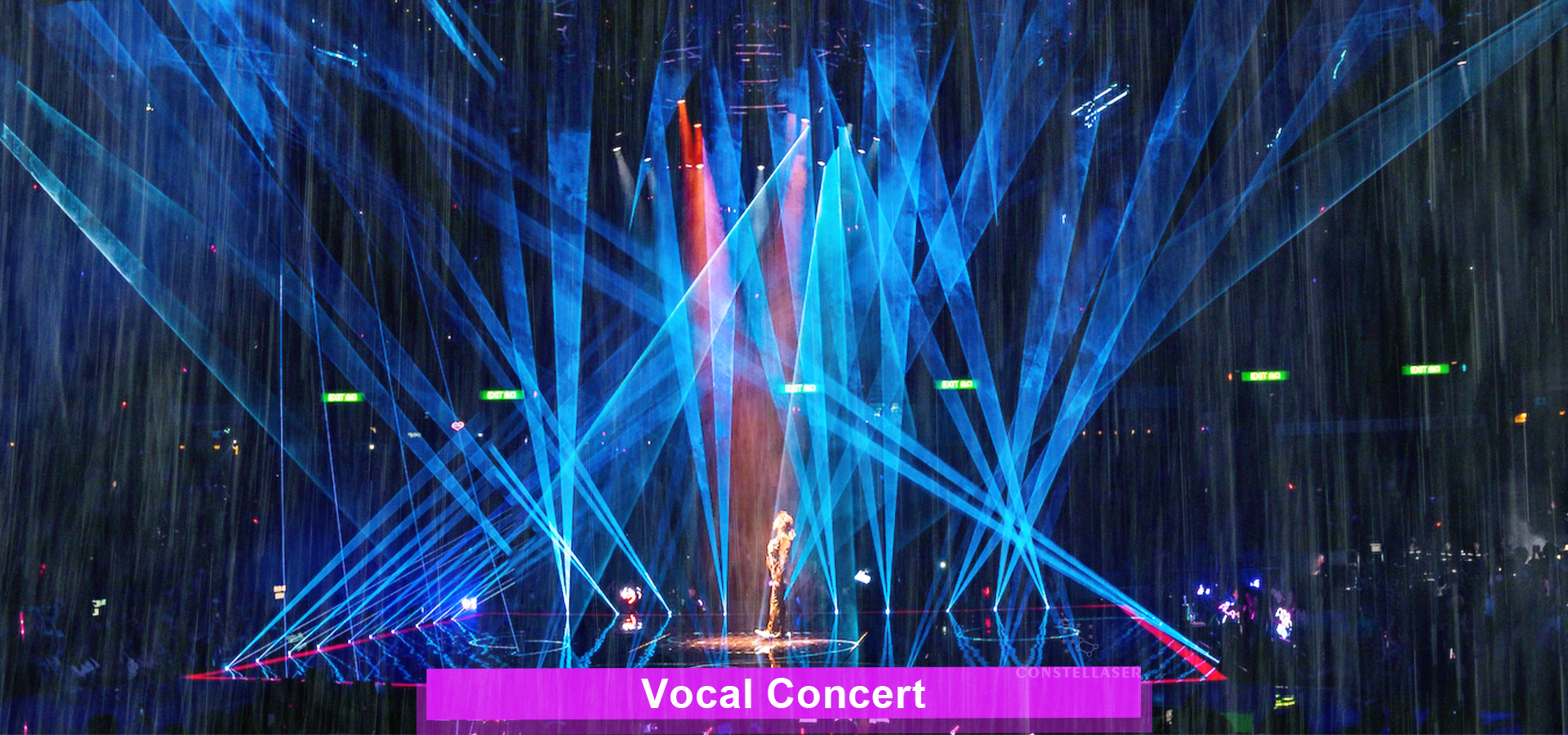

Applicable Scene
These laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.

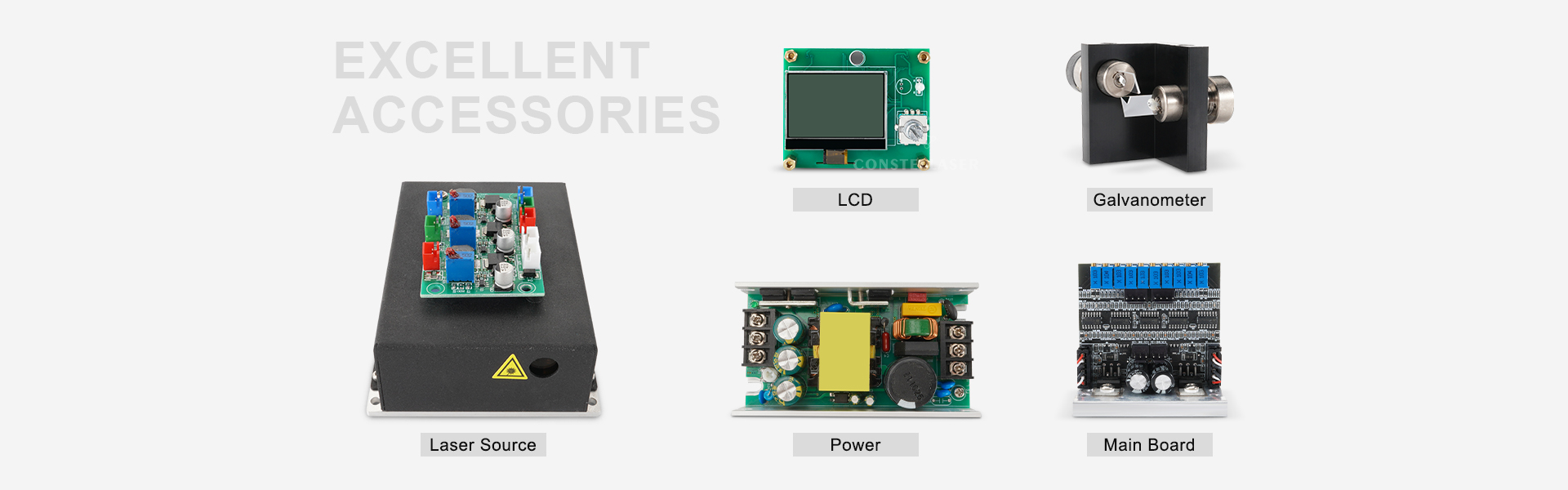

Carefully Select Excellent Accessories
Additional Accessories

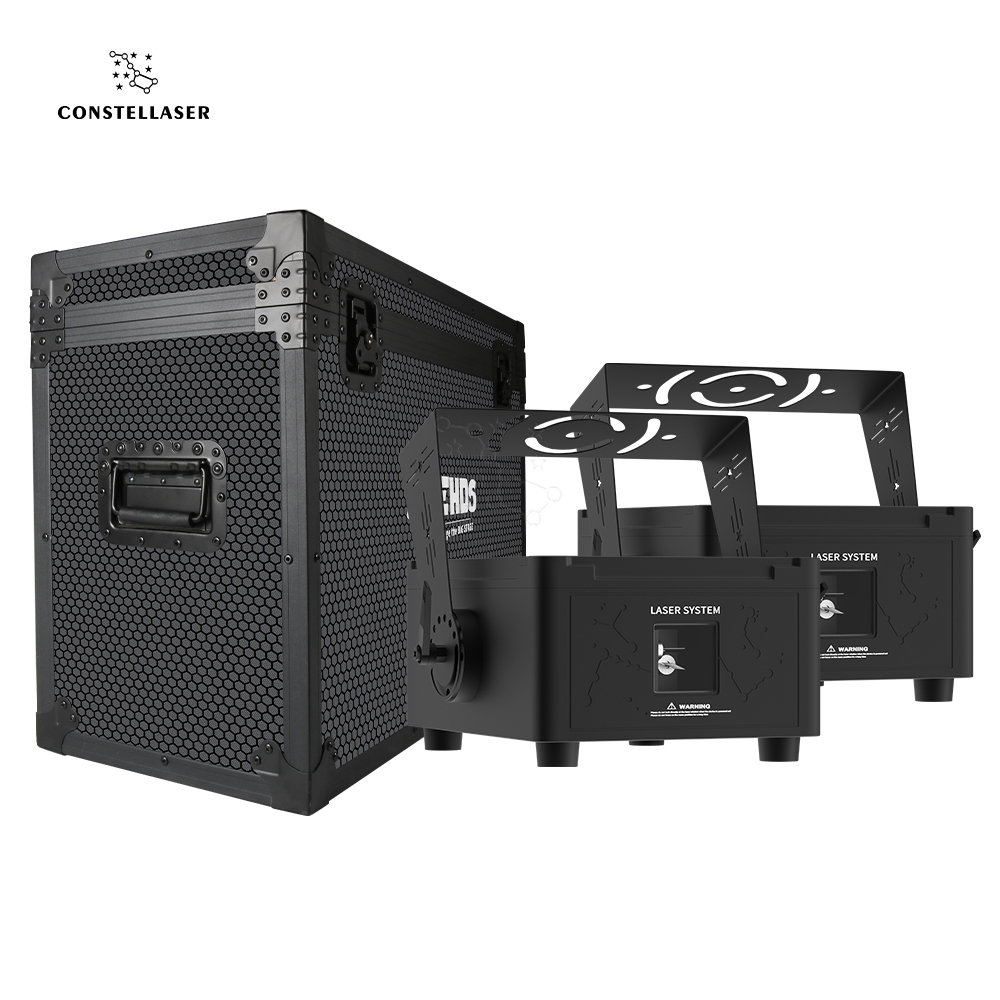

Flight Case DIY Service
Equipped with silent 360 degree wheels + brake lockers
Note: This is DIY service, please consult customer service for details!
Qualification Certificate
International organizations Authority certification
