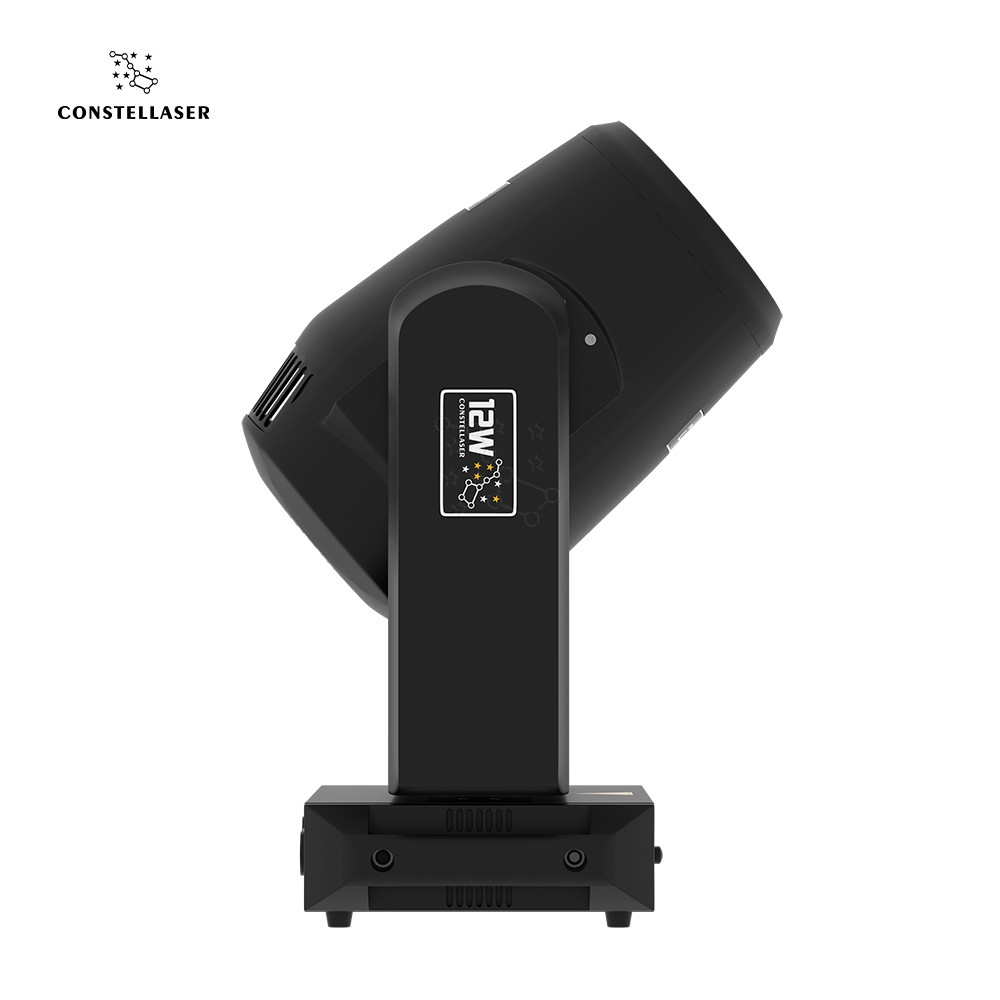

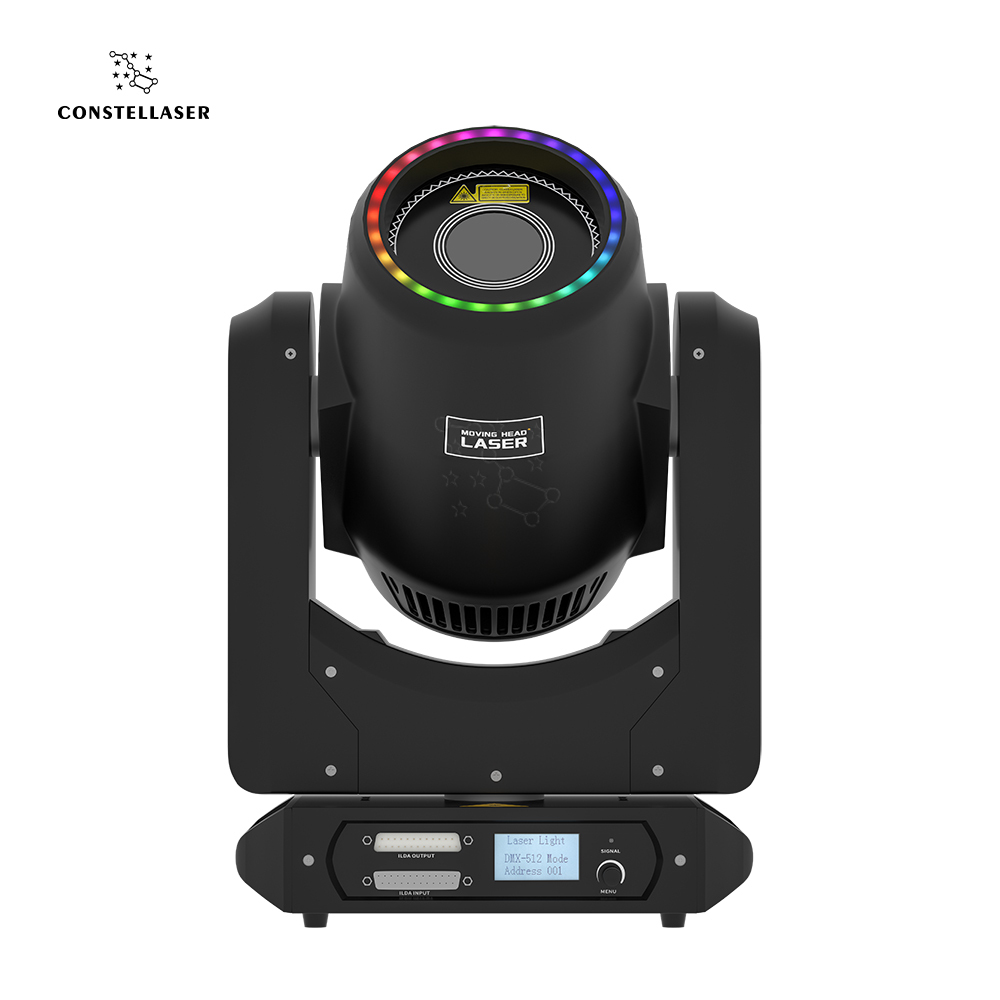

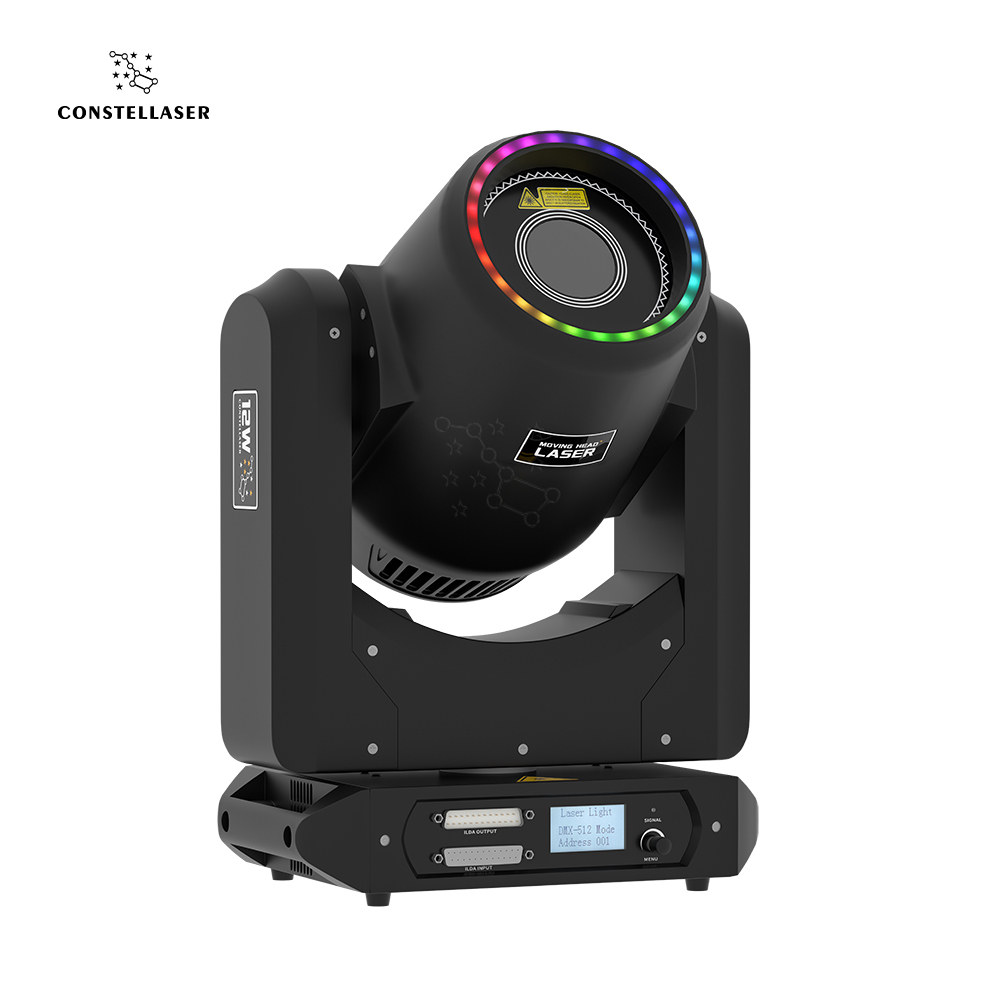

12W Moving Head LASER
provide lighting designers with more flexible creative space.
Multiple built-in pattern effect modes, rich color macro effects,
outdoor large-scale performances, building lighting markets, etc.
Specializing in outdoor cultural and tourism markets,
Constellation Laser Series
The origin of constellations can be traced back to prehistoric times.
People use them to tell stories about their beliefs, experiences,
creations, and myths. Our designers have created a variety of laser stage lights under the name of "Constellation Laser".
Like the stars that light up the nebula in the dark, our laser lights light up every stage.
SAFETY TIPS
During the use of a laser source,
Do not look directly at the light source.
The effect of stage laser lights is formed by high-speed scanning of the laser
beam through high-speed galvanometers or low-speed stepper motors.
The harm to the human body is mainly reflected in the harm to the eyes,
and prolonged exposure can lead to blindness.
User's Manual:12W Moving Head Laser Light
Technical Parameter
| -Light source parameters |
| Laser wavelength: |
R-638nm, G-520nm, B-450nm |
| Spot size (laser window spot): |
5.5mm |
| Light source divergence angle : |
＜1.2mrad |
| Modulation mode: |
0~5V analog, up to 50khz/TTL |
| Laser class: |
Class IV |
| -Movement |
|
| Pan Operating angle:: |
540°， 16-bit precision scanning |
| TiltOperating angle:: |
270°， 16-bit precision scanning |
| -Imaging system |
| Imaging color: |
Red, Green, Blue, Yellow, Purple, Cyan, White |
| Evenness: |
>98% |
| Lens Horizontal Offset: |
-30% to +30% |
| Lens Vertical Offset:: |
-30% to +30% |
| Imaging mode: |
3D/2D pattern and animation (with software) |
| Projection distance: |
＜200M The best distance is 30~100M |
| Playback rate: |
25 KPPS |
| Playback angle: |
Max60° |
| -Security system |
| Safety standard: |
Follow the IEC60825 standard |
| Safety item: |
Overcurrent and voltage protection |
| Degree of protection: |
IP20 |
| Operating temperature: |
15℃~45℃ |

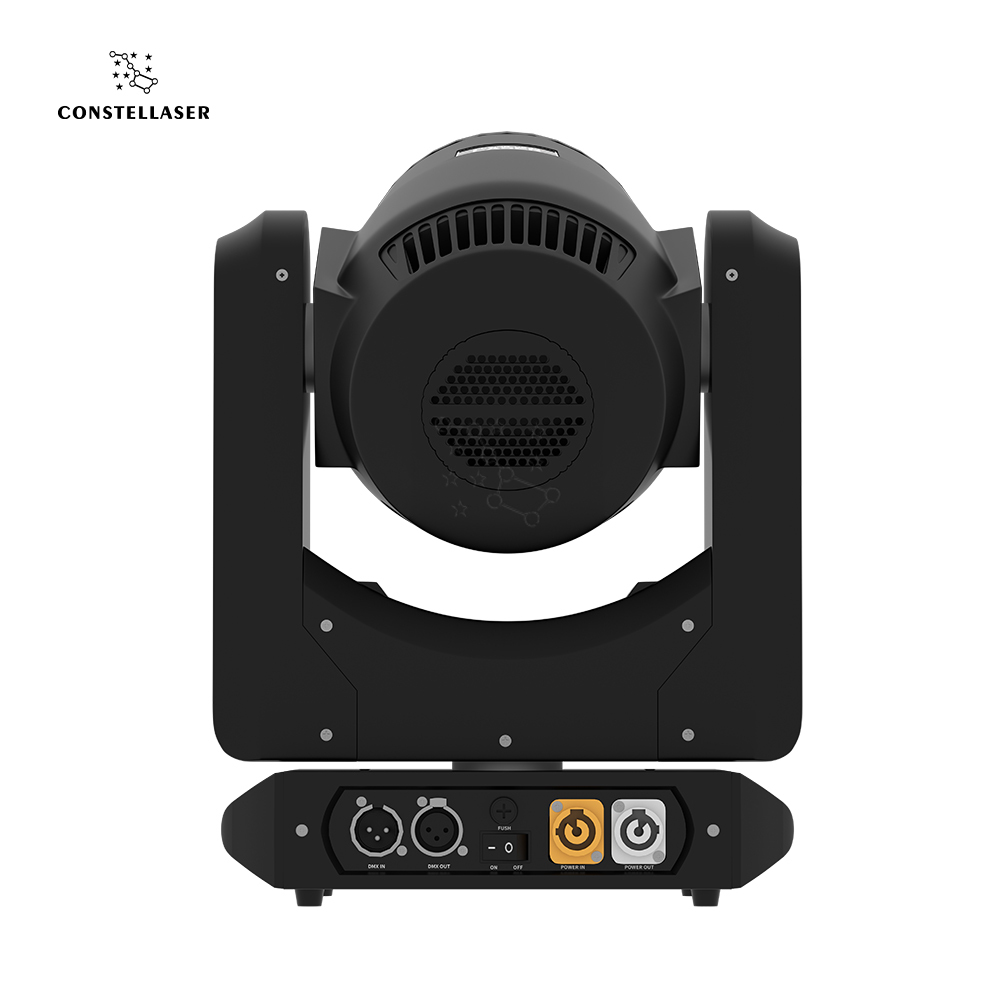

| -Interface and Control System |
| Control interface: |
ILDA In/Out , DMX In/Out |
| DMX channel: |
25/42CH |
| Power interface: |
Neutrik PowerCon |
| -Cooling system |
| Cooling method: |
Air cooled |
| Structure: |
60mm plug-in heat dissipation layer |
| -Power consumption |
| Working power: |
100~240V AC 50/60HZ |
| Power consumption: |
Max 500W |

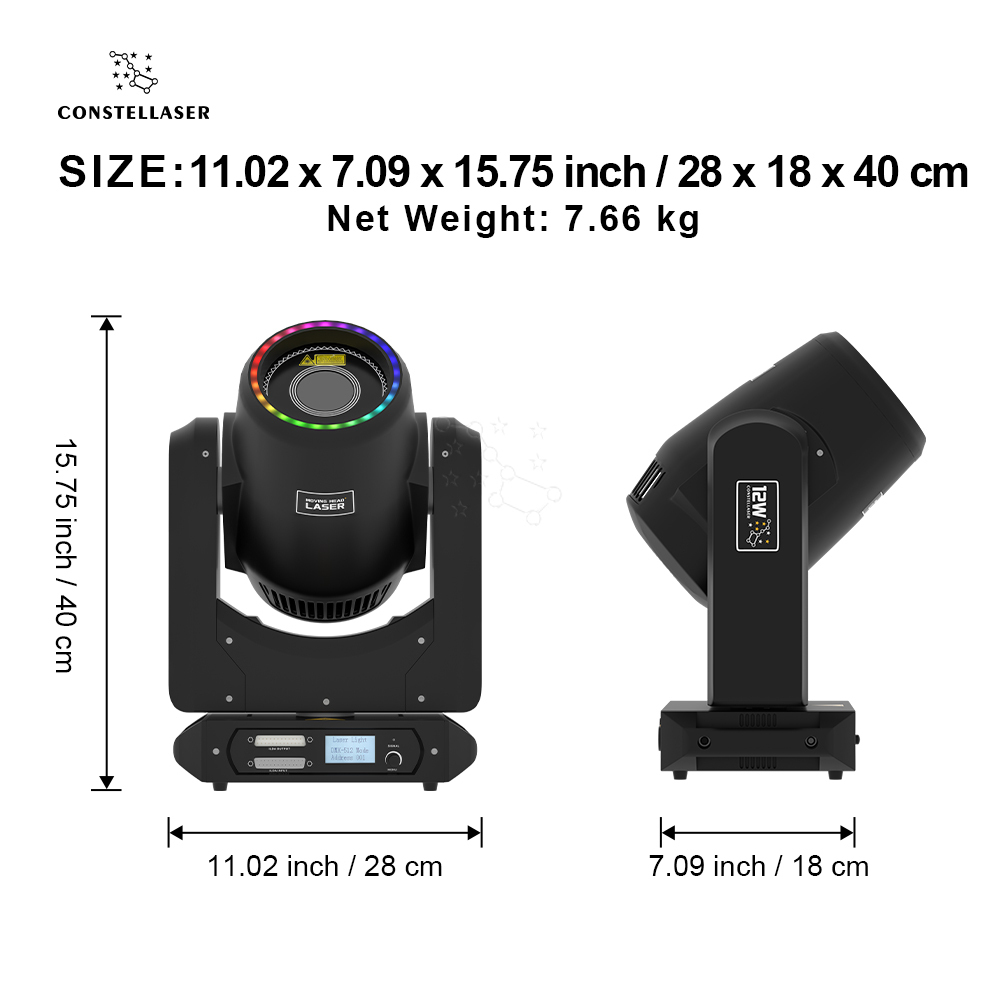

| -Physical parameters |
| Product size : |
11.02 x 7.09 x 15.75 inch / 28 x 18 x 40 cm |
| Product weight: |
7.66 Kg |
| Pack size: |
17.32x10.24x13.39 inch / 44x26x34 cm |
| Package weight: |
9 Kg |
Menu function
5 auto modes, 5 sound control modes customizable animation speeds
convenient rotary button menu key.
Control Model
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effects to the stage performance.
Control Model
The best feature of this laser light is its programmability and versatility.
You can choose a variety of animation and pattern effects through the controller or DMX controller.
At the same time, it also supports sound mode and auto mode,
which can change freely according to the music and environment to bring more outstanding effects to the stage performance.
Adopting high-quality RGB Laser source
Possess colorful colors
Laser Effect
It has a variety of patterns and animation effects, supports automatic and voice-activated modes,
sharp and even light, and uses the best accessories and lasers.
High-Speed Galvanometer
25 KPPS with high precision
The high-frequency scanning technology ensures a smooth and seamless display of laser patterns,
with sharp and precise movements that are sure to captivate any audience.
The Northern Lights Canopy Effects
Presenting a dreamy and colorful visual effect similar to the aurora
Multiple Pattern Effects
Partial pattern display, more pattern effects waiting for you
Applicable Scene
These laser lights are perfect for creating stunning visual effects in bars and clubs,
enhancing the vibrant atmosphere of any venue.
Carefully Select Excellent Accessories
Additional Accessories
Flight Case DIY Service
Equipped with silent 360-degree wheels + brake lockers
Note: This is a DIY service, please consult customer service for details!
