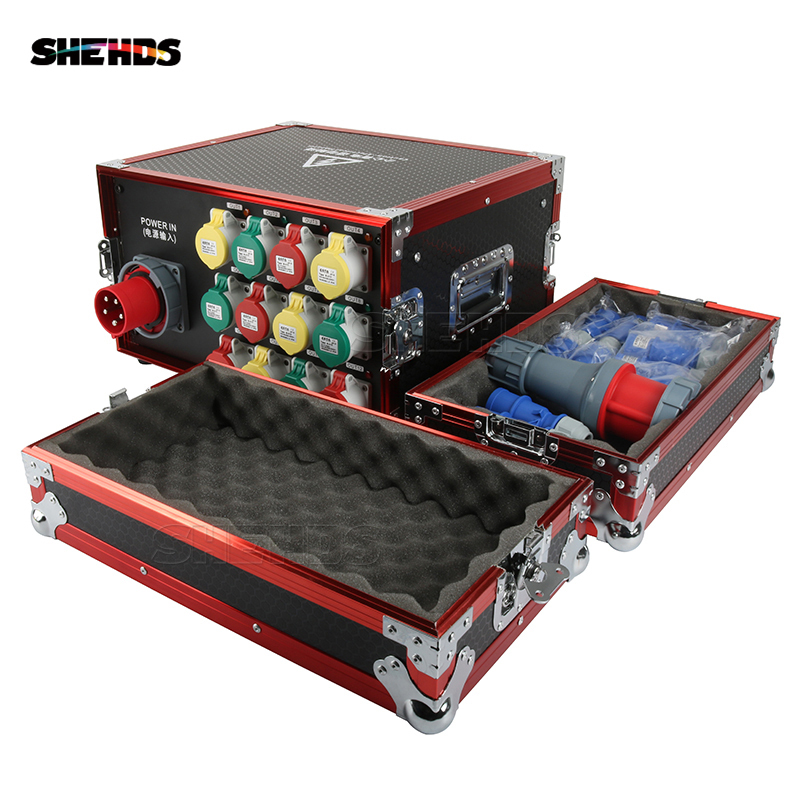

Please be noted: All flight cases are to be shipped by sea or by train. If you need more options in shipping methods, feel free to contact us.
Product Introduction：
1.Distribution cabinet power supply to large screen equipment needs to be designed and installed according to the standard network room power supply standard. In order to consider the impact of peak current, it is necessary to consider branch power supply and timing control. Secondary lightning protection should be considered in power supply. Equipment and protective ground should be separated. The whole large screen grounding system should be connected to the building grounding system. Lightning protection measures of key information equipment ports should also be considered.
2.Protection function: It has the functions of anti-static, anti-vibration, anti-electromagnetic interference and anti-lightning strike. It has the measures of over-voltage, over-current, power-off protection and distributed power-up, and has the functions of real-time monitoring temperature and fault alarm.
3.Use high-grade devices in the industry.
Technical Parameters:
1. Power Supply: Three Phase Five Wire System AC380V + 10%, Frequency 50Hz + 5%.

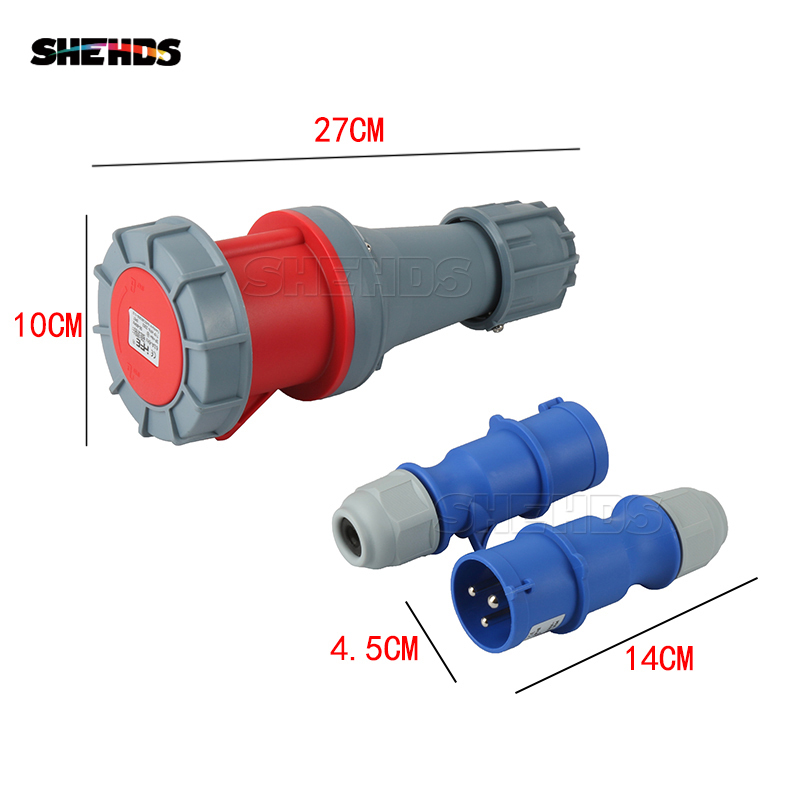

2. Input Rated Current: 200A Rhinoceros Plug Input, Maximum 12 Channels x 4KW Optional For Any Load.
3. Equipped With 100A Master Switch, Overload And Short Circuit Double Protection High Split Air Switch.

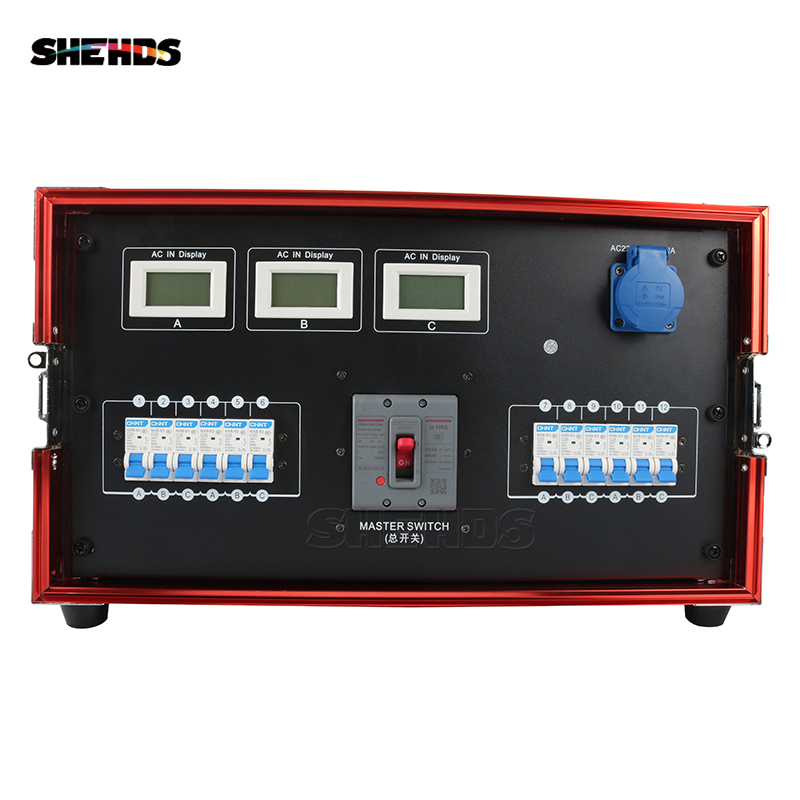

4. Three Phase Independent Voltage, Current, Monitoring, Three Phase A.B.C Indicator Indication.

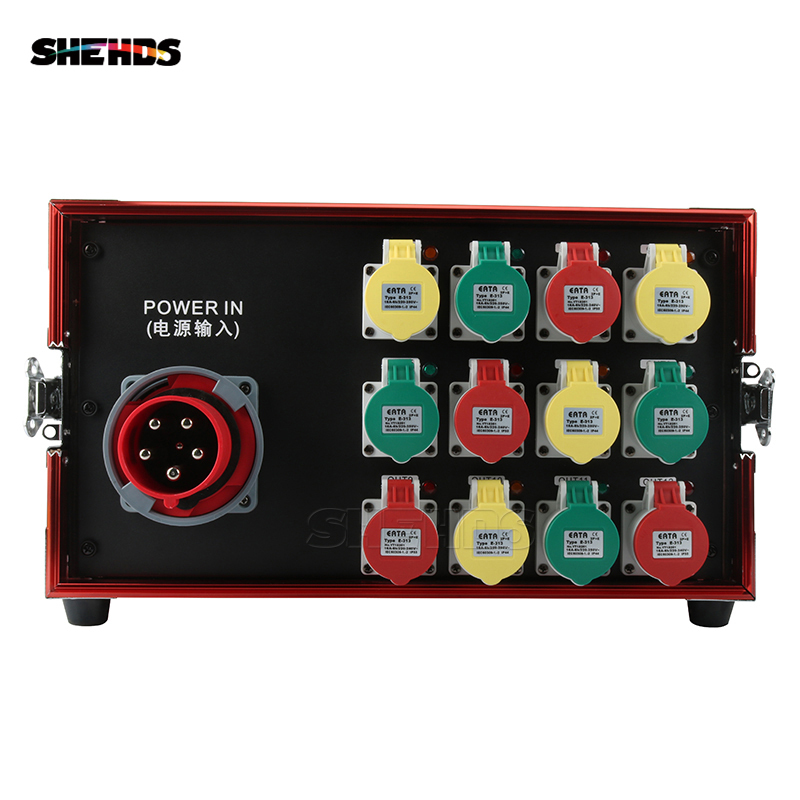

5. 3 Output Modes: 16A Waterproof Plug

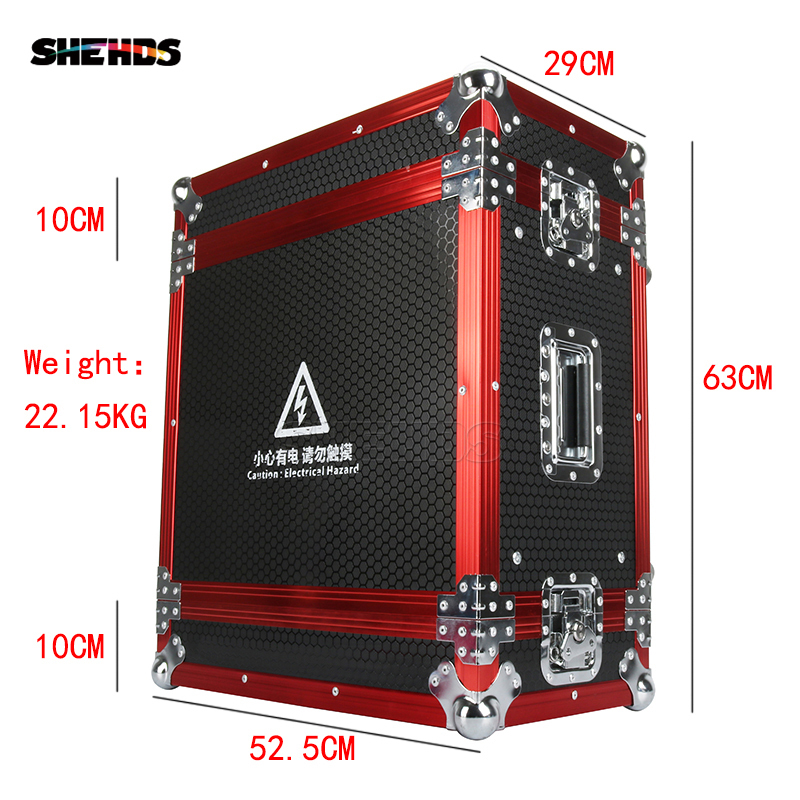

6. Outline Size: International Standard 7U
Functional Characteristics:
1. Silicon Chip, The Core Device Of The Silicon Controlled Chip, Is Imported With Original Material, And Its Performance Is Stable And Reliable.
2. Good Heat Dissipation Device And Forced Air Cooling Combine With Intelligent Environmental Protection Control System.
3. The Efficient Anti-Interference Choke Has Strong Anti-Interference Ability And Low Noise.
4. Start Loop Setting, Preheat Setting.
5. Dimming Curve Can Be Set To Linear Or Switching State With A Switching Value Of 50%. When The Brightness Value Of Input Is Greater Than Or Equal To 50% In Switching State, The Output Circuit Will Be Full, Otherwise There Will Be No Output.
6. The Display Can Display Current And Voltage At The Same Time.
FAQ:
1. Who will pay for customs duty?
It is buyer who should pay customs duty.
2, LED Lighting use of the plug and voltage, is consistent with the normal use of my country standards?
Yes, we will be in accordance with the standards of electrical appliances in your country, to send you to meet the requirements of the plug, EU Plug, US plug, AU plug, UK Plug and so on.
3, What if I'm dissatisfied with the product?
So sorry to hear that. We guarantee you will be 100% satisfied with the quality of your product. If you're unhappy with it, please contact our Customer Service who will be glad to help.
When contacting Customer Service Team, please give your order number, a short description and a photo of the problem, so we can prevent these problems in the future.
4. What do you declare goods to customs?
We declare it LED Lighting with lower price to help you pay less tax by default.
5. May I get repair warranty?
We have one-year warranty in China, if you do not take the LED Lighting APART.
